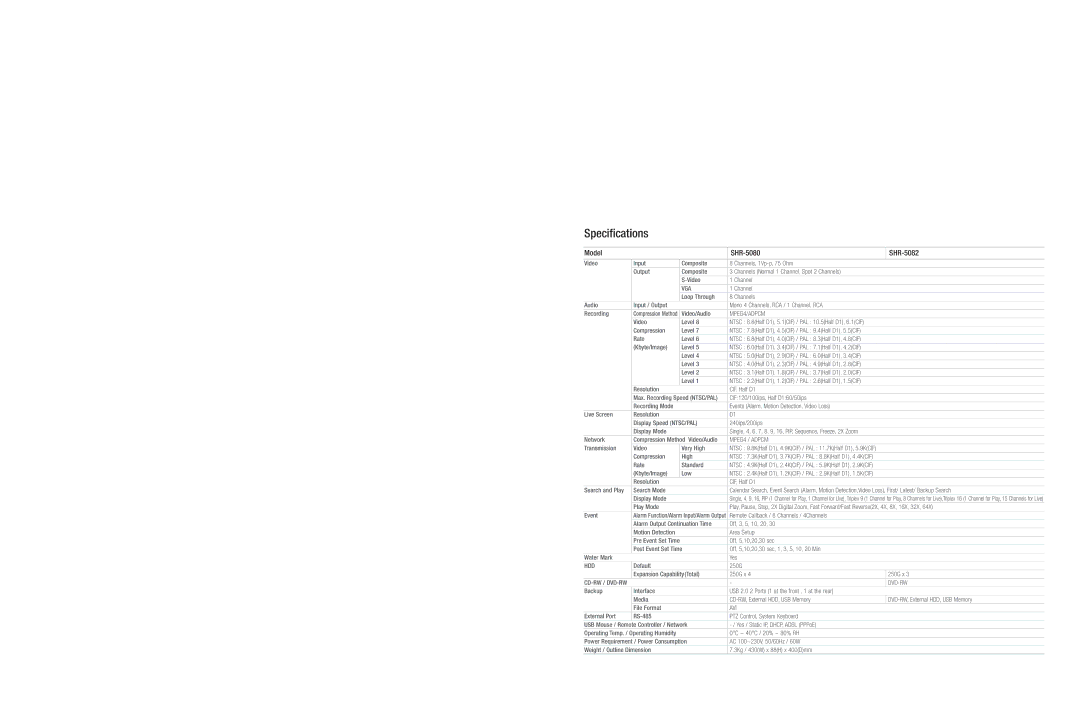

Specifications

Model









SHR-5080

SHR-5082















Video

Input



Composite

8 Channels, 1Vp-p, 75 Ohm





Output



Composite

3 Channels (Normal 1 Channel, Spot 2 Channels)











S-Video

1 Channel











VGA

1 Channel











Loop Through

8 Channels



Audio

Input / Output



Mono 4 Channels, RCA / 1 Channel, RCA



Recording

Compression Method



Video/Audio

MPEG4/ADPCM





Video



Level 8

NTSC : 8.8(Half D1), 5.1(CIF) / PAL : 10.5(Half D1), 6.1(CIF)





Compression



Level 7

NTSC : 7.8(Half D1), 4.5(CIF) / PAL : 9.4(Half D1), 5.5(CIF)





Rate



Level 6

NTSC : 6.8(Half D1), 4.0(CIF) / PAL : 8.3(Half D1), 4.8(CIF)





(Kbyte/Image)



Level 5

NTSC : 6.0(Half D1), 3.4(CIF) / PAL : 7.1(Half D1), 4.2(CIF)











Level 4

NTSC : 5.0(Half D1), 2.9(CIF) / PAL : 6.0(Half D1), 3.4(CIF)











Level 3

NTSC : 4.0(Half D1), 2.3(CIF) / PAL : 4.9(Half D1), 2.8(CIF)











Level 2

NTSC : 3.1(Half D1). 1.8(CIF) / PAL : 3.7(Half D1), 2.0(CIF)











Level 1

NTSC : 2.2(Half D1), 1.2(CIF) / PAL : 2.6(Half D1), 1.5(CIF)





Resolution



CIF, Half D1





Max. Recording Speed (NTSC/PAL)

CIF:120/100ips, Half D1:60/50ips





Recording Mode



Events (Alarm, Motion Detection, Video Loss)



Live Screen

Resolution



D1





Display Speed (NTSC/PAL)

240ips/200ips





Display Mode



Single, 4, 6, 7, 8, 9, 16, PIP, Sequence, Freeze, 2X Zoom



Network

Compression Method Video/Audio

MPEG4 / ADPCM



Transmission

Video





Very High

NTSC : 9.8K(Half D1), 4.9K(CIF) / PAL : 11.7K(Half D1), 5.9K(CIF)





Compression





High

NTSC : 7.3K(Half D1), 3.7K(CIF) / PAL : 8.8K(Half D1), 4.4K(CIF)





Rate





Standard

NTSC : 4.9K(Half D1), 2.4K(CIF) / PAL : 5.9K(Half D1), 2.9K(CIF)





(Kbyte/Image)





Low

NTSC : 2.4K(Half D1), 1.2K(CIF) / PAL : 2.9K(Half D1), 1.5K(CIF)





Resolution



CIF, Half D1



Search and Play

Search Mode



Calendar Search, Event Search (Alarm, Motion Detection,Video Loss), First/ Latest/ Backup Search



Display Mode



Single, 4, 9, 16, PIP (1 Channel for Play, 1 Channel for LIve), Triplex 9 (1 Channel for Play, 8 Channels for Live),Triplex 16 (1 Channel for Play, 15 Channels for Live)



Play Mode



Play, Pause, Stop, 2X Digital Zoom, Fast Forward/Fast Reverse(2X, 4X, 8X, 16X, 32X, 64X)

Event

Alarm Function/Alarm Input/Alarm Output

Remote Callback / 8 Channels / 4Channels





Alarm Output Continuation Time

Off, 3, 5, 10, 20, 30





Motion Detection



Area Setup





Pre Event Set Time



Off, 5,10,20,30 sec





Post Event Set Time

Off, 5,10,20,30 sec, 1, 3, 5, 10, 20 Min



Water Mark









Yes



HDD

Default



250G





Expansion Capability(Total)

250G x 4

250G x 3

CD-RW / DVD-RW









-

DVD-RW

Backup

Interface



USB 2.0 2 Ports (1 at the front , 1 at the rear)





Media



CD-RW, External HDD, USB Memory

DVD-RW, External HDD, USB Memory



File Format



AVI



External Port

RS-485



PTZ Control, System Keyboard



USB Mouse / Remote Controller / Network

- / Yes / Static IP, DHCP, ADSL (PPPoE)



Operating Temp. / Operating Humidity



0°C ~ 40°C / 20% ~ 80% RH



Power Requirement / Power Consumption

AC 100~230V, 50/60Hz / 60W



Weight / Outline Dimension



7.3Kg / 430(W) x 88(H) x 400(D)mm



Page 1
Image 1
Samsung specifications Specifications, Model SHR-5080 SHR-5082

SHR-5080 specifications

The Samsung SHR-5080 is a high-performance digital video recorder (DVR) designed for professional security surveillance applications. Equipped with cutting-edge technologies, it provides robust solutions for monitoring, recording, and managing video feeds in various environments, from retail spaces to critical infrastructure.

One of the standout features of the SHR-5080 is its capability to support multiple camera inputs. It accommodates up to 8 channels, allowing users to connect a variety of security cameras, including both analog and IP models. This flexibility ensures that businesses can tailor their surveillance setups to meet specific requirements without a complete overhaul of existing systems.

The device boasts a high-resolution recording capability, enabling video capture at 720p or higher, which is crucial for identifying individuals and vehicle license plates in critical scenarios. The use of H.264 compression technology significantly optimizes storage management while maintaining high-quality recordings. This efficient compression allows users to store extended video footage without diminishing clarity, providing peace of mind when it comes to long-term data retention.

Storage capacity is another highlight of the SHR-5080. It features a built-in hard drive with options for expansion, ensuring users can scale their storage solutions according to their monitoring needs. With automated overwrite capabilities, the DVR efficiently manages disk space, prioritizing real-time video without manual intervention.

User-friendliness is central to the SHR-5080's design. Its intuitive interface simplifies navigation and operation, allowing users to easily access recorded footage, adjust camera settings, and manage storage options. Remote access capabilities further enhance convenience, enabling users to monitor live feeds and playback recordings from smartphones or computers through authorized applications.

In terms of connectivity, the SHR-5080 includes multiple interfaces, such as USB ports for external storage and backups, as well as network connectivity options for integration into existing IT infrastructure. This connectivity ensures seamless communication between the DVR and connected devices, enhancing the overall security management system.

In summary, the Samsung SHR-5080 combines advanced recording capabilities, intuitive user experience, and reliable connectivity to cater to a wide range of surveillance needs. Whether for small businesses or larger enterprises, this DVR stands out as a comprehensive solution for effective and efficient security monitoring.
