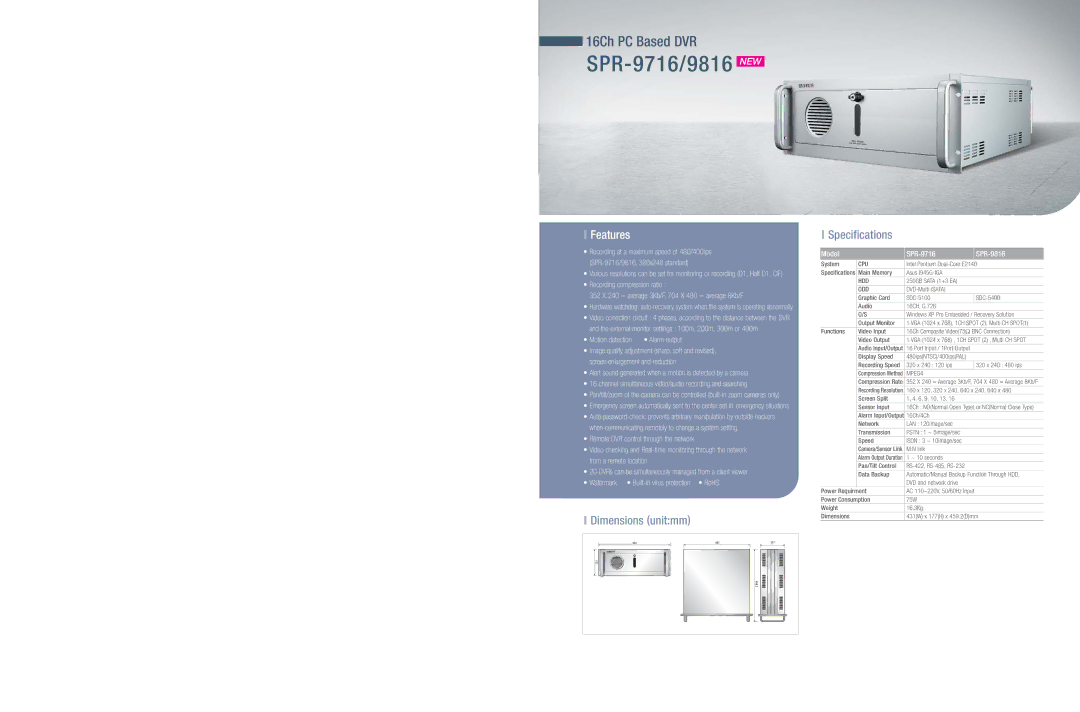

SPR-9716/9816 NEW, Features, Specifications

16Ch PC Based DVR

SPR-9716/9816 NEW

Features				Specifications
• Recording at a maximum speed of 480/400ips				Model		SPR-9716	SPR-9816
(SPR-9716/9816, 320x240 standard)				System	CPU	Intel Pentium Dual-Core E2140
• Various resolutions can be set for monitoring or recording (D1, Half D1, CIF)				Specifications	Main Memory	Asus I945G-IGA
• Recording compression ratio :					HDD	250GB SATA (1+3 EA)
• Recording compression ratio :					ODD	DVD-Multi (SATA)
352 X 240 = average 3Kb/F, 704 X 480 = average 8Kb/F					ODD	DVD-Multi (SATA)
352 X 240 = average 3Kb/F, 704 X 480 = average 8Kb/F					Graphic Card	SDC-5100	SDC-5400
• Hardware watchdog: auto-recovery system when the system is operating abnormally					Audio	16CH, G.726
• Video correction circuit : 4 phases, according to the distance between the DVR					O/S	Windows XP Pro Embedded / Recovery Solution
					Output Monitor	1 VGA (1024 x 768), 1CH SPOT (2), Multi CH SPOT(1)
and the external monitor settings : 100m, 200m, 300m or 400m					Output Monitor	1 VGA (1024 x 768), 1CH SPOT (2), Multi CH SPOT(1)
				Functions	Video Input	16Ch Composite Video(75Ω BNC Connection)
				Functions	Video Input	16Ch Composite Video(75Ω BNC Connection)
• Motion detection		• Alarm output			Video Output	1 VGA (1024 x 768) , 1CH SPOT (2) , Multi CH SPOT
• Image quality adjustment (sharp, soft and revised),					Audio Input/Output	16 Port Input / 1Port Output
• Image quality adjustment (sharp, soft and revised),					Display Speed	480ips(NTSC)/400ips(PAL)
screen enlargement and reduction					Display Speed	480ips(NTSC)/400ips(PAL)
screen enlargement and reduction					Recording Speed	320 x 240 : 120 ips	320 x 240 : 480 ips
• Alert sound generated when a motion is detected by a camera					Recording Speed	320 x 240 : 120 ips	320 x 240 : 480 ips
					Compression Method	MPEG4
• 16 channel simultaneous video/audio recording and searching					Compression Rate	352 X 240 = Average 3Kb/F, 704 X 480 = Average 8Kb/F
• Pan/tilt/zoom of the camera can be controlled (built-in zoom cameras only)					Recording Resolution	160 x 120, 320 x 240, 640 x 240, 640 x 480
					Screen Split	1, 4, 6, 9, 10, 13, 16
• Emergency screen automatically sent to the center set in emergency situations					Screen Split	1, 4, 6, 9, 10, 13, 16
					Sensor Input	16Ch : NO(Normal Open Type) or NC(Normal Close Type)
• Auto password-check: prevents arbitrary manipulation by outside hackers					Alarm Input/Output 16Ch/4Ch
when communicating remotely to change a system setting					Network	LAN : 120image/sec
when communicating remotely to change a system setting					Transmission	PSTN : 1 ~ 5image/sec
• Remote DVR control through the network					Transmission	PSTN : 1 ~ 5image/sec
• Remote DVR control through the network					Speed	ISDN : 3 ~ 10image/sec
• Video checking and Real-time monitoring through the network					Camera/Sensor Link	M:N link
from a remote location					Alarm Output Duration	1 ~ 10 seconds
from a remote location					Pan/Tilt Control	RS-422, RS-485, RS-232
• 20 DVRs can be simultaneously managed from a client viewer					Pan/Tilt Control	RS-422, RS-485, RS-232
					Data Backup	Automatic/Manual Backup Function Through HDD,
					Data Backup	Automatic/Manual Backup Function Through HDD,
• Watermark	• Built-in virus protection		• RoHS			DVD and network drive
				Power Requirment		AC 110~220V, 50/60Hz Input
				Power Consumption		75W
				Weight		16.3Kg
Dimensions (unit:mm)				Dimensions		431(W) x 177(H) x 459.2(D)mm
Dimensions (unit:mm)
