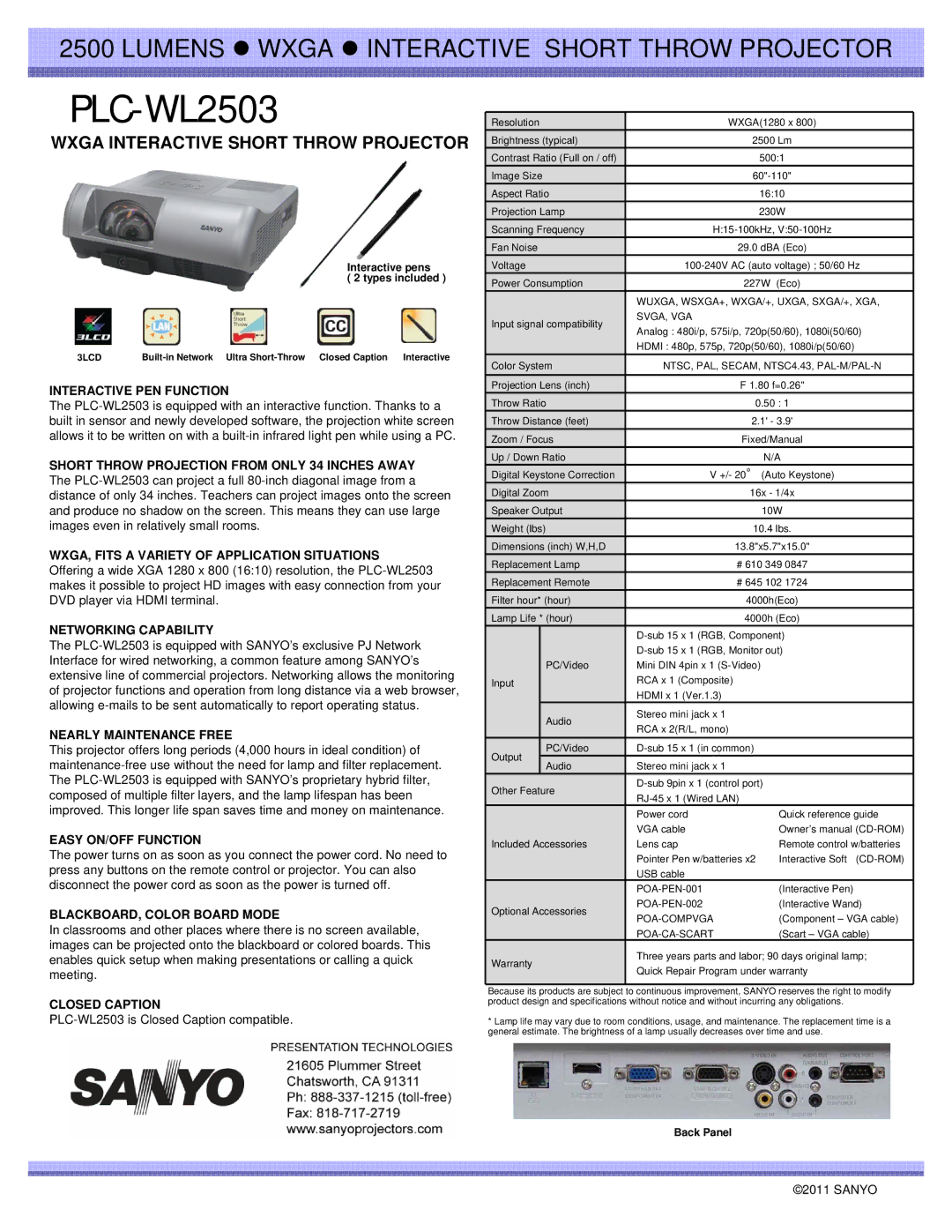

Sanyo PLC-WL2503 specifications Wxga Interactive Short Throw Projector, Interactive Pen Function

2500 LUMENS z WXGA z INTERACTIVE SHORT THROW PROJECTOR

PLC-WL2503

WXGA INTERACTIVE SHORT THROW PROJECTOR

Interactive pens

( 2 types included )

3LCD Built-in Network Ultra Short-Throw Closed Caption Interactive

INTERACTIVE PEN FUNCTION

The PLC-WL2503 is equipped with an interactive function. Thanks to a built in sensor and newly developed software, the projection white screen allows it to be written on with a built-in infrared light pen while using a PC.

SHORT THROW PROJECTION FROM ONLY 34 INCHES AWAY The PLC-WL2503 can project a full 80-inch diagonal image from a distance of only 34 inches. Teachers can project images onto the screen and produce no shadow on the screen. This means they can use large images even in relatively small rooms.

WXGA, FITS A VARIETY OF APPLICATION SITUATIONS

Offering a wide XGA 1280 x 800 (16:10) resolution, the PLC-WL2503 makes it possible to project HD images with easy connection from your DVD player via HDMI terminal.

NETWORKING CAPABILITY

The PLC-WL2503 is equipped with SANYO’s exclusive PJ Network Interface for wired networking, a common feature among SANYO’s extensive line of commercial projectors. Networking allows the monitoring of projector functions and operation from long distance via a web browser, allowing e-mails to be sent automatically to report operating status.

NEARLY MAINTENANCE FREE

This projector offers long periods (4,000 hours in ideal condition) of maintenance-free use without the need for lamp and filter replacement. The PLC-WL2503 is equipped with SANYO’s proprietary hybrid filter, composed of multiple filter layers, and the lamp lifespan has been improved. This longer life span saves time and money on maintenance.

EASY ON/OFF FUNCTION

The power turns on as soon as you connect the power cord. No need to press any buttons on the remote control or projector. You can also disconnect the power cord as soon as the power is turned off.

BLACKBOARD, COLOR BOARD MODE

In classrooms and other places where there is no screen available, images can be projected onto the blackboard or colored boards. This enables quick setup when making presentations or calling a quick meeting.

CLOSED CAPTION

PLC-WL2503 is Closed Caption compatible.

Resolution		WXGA(1280 x 800)
Brightness (typical)		2500 Lm
Contrast Ratio (Full on / off)			500:1
Image Size		60"-110"
Aspect Ratio			16:10
Projection Lamp			230W
Scanning Frequency		H:15-100kHz, V:50-100Hz
Fan Noise		29.0 dBA (Eco)
Voltage		100-240V AC (auto voltage) ; 50/60 Hz
Power Consumption		227W (Eco)
		WUXGA, WSXGA+, WXGA/+, UXGA, SXGA/+, XGA,
Input signal compatibility		SVGA, VGA
		Analog : 480i/p, 575i/p, 720p(50/60), 1080i(50/60)
		HDMI : 480p, 575p, 720p(50/60), 1080i/p(50/60)
Color System		NTSC, PAL, SECAM, NTSC4.43, PAL-M/PAL-N
Projection Lens (inch)		F 1.80 f=0.26"
Throw Ratio		0.50 : 1
Throw Distance (feet)		2.1' - 3.9'
Zoom / Focus		Fixed/Manual
Up / Down Ratio			N/A
Digital Keystone Correction		V +/- 20° (Auto Keystone)
Digital Zoom		16x - 1/4x
Speaker Output			10W
Weight (lbs)		10.4 lbs.
Dimensions (inch) W,H,D		13.8"x5.7"x15.0"
Replacement Lamp		# 610 349 0847
Replacement Remote		# 645 102 1724
Filter hour* (hour)		4000h(Eco)
Lamp Life * (hour)		4000h (Eco)
		D-sub 15 x 1 (RGB, Component)
		D-sub 15 x 1 (RGB, Monitor out)
	PC/Video	Mini DIN 4pin x 1 (S-Video)
Input		RCA x 1 (Composite)
		HDMI x 1 (Ver.1.3)
	Audio	Stereo mini jack x 1
		RCA x 2(R/L, mono)
Output	PC/Video	D-sub 15 x 1 (in common)
	Audio	Stereo mini jack x 1
Other Feature		D-sub 9pin x 1 (control port)
		RJ-45 x 1 (Wired LAN)
		Power cord	Quick reference guide
		VGA cable	Owner’s manual (CD-ROM)
Included Accessories		Lens cap	Remote control w/batteries
		Pointer Pen w/batteries x2	Interactive Soft (CD-ROM)
		USB cable
		POA-PEN-001	(Interactive Pen)
Optional Accessories		POA-PEN-002	(Interactive Wand)
		POA-COMPVGA	(Component – VGA cable)
		POA-CA-SCART	(Scart – VGA cable)
Warranty		Three years parts and labor; 90 days original lamp;
		Quick Repair Program under warranty

Because its products are subject to continuous improvement, SANYO reserves the right to modify product design and specifications without notice and without incurring any obligations.

*Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a general estimate. The brightness of a lamp usually decreases over time and use.

Back Panel

©2011 SANYO
