ELECTROMAGNETIC LOCK Installation Manual

TROUBLESHOOTING

Problem:

Possible cause:

Solutions:









Door does not lock

No power

• Check to make sure the wires are connected









properly.







Check that the power supply is connected and









operating







• Make sure the lock switch is wired correctly











Door locks, but can be easily

Poor contact between

Make sure the electromagnet and armature plate

forced open

electromagnet and



are properly aligned





armature plate

• Make sure the contact surfaces of the









electromagnet and armature plate are clean and









free from rust













Insufficient voltage

• Check the power leads with a meter, and make









sure power is supplied between 12~24VDC.









Delay in door releasing

A secondary diode was

• The electromagnet is fitted with a metal oxide





installed across the



varistor to prevent interference, so do not install a





electromagnet



secondary diode











REGULAR MAINTENANCE

Clean the contact surfaces of the electromagnet or armature plate with a soft cloth and non- abrasive, non-corrosive cleaner.

Apply a light coat of a silicon lubricant and wipe away the excess to prevent rust.

Check that the armature plate is securely attached to the door, yet can pivot slightly around the armature screw.

Check that the electromagnet is securely attached to the door frame.

WARRANTY: ENFORCER Electromagnetic Locks are warranted against defects in material and workmanship while used in normal service for a period of one (1) year from the date of sale to the original customer. Our obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation pre-paid, to SECO-LARM.

NOTICE

The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.

Copyright © 2005 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of SECO-LARM.

SECO-LARM®U.S.A., Inc.







16842 Millikan Avenue, Irvine, CA

92606

Website: www.seco-larm.com



Tel: 800-662-0800 / 949-261-2999

Fax: 949-261-7326

E-mail: sales@seco-larm.com

PITLW1











Filename: MIE941SA-80_056.PMD







Page 4



SECO-LARM U.S.A., Inc.

ELECTROMAGNETIC LOCK Installation Manual

Installation Manual

E-941SA-80Q

80-LB. MINIATURE ELECTROMAGNETIC LOCKS

Also available:

E-941SA-12001200-lb. electromagnetic lock E-941SA-600600-lb. electromagnetic lock E-941SA-300300-lb. electromagnetic lock

E-941SA-1K2PD1200-lb. electromagnetic lock with status LED status sensor & delay timer E-941DA-1K2PDouble-Door 1200-lb. electromagnetic lock with status LEDs & status sensors E-942SA-13001300-lb. water-resistant gate lock

E-942SA-600600-lb. water-resistant gate lock

HOW THEY WORK

When power is applied to the electromagnetic lock, it turns on the unit's powerful built-in electromagnet. This electromagnet is attracted to the steel armature plate which is mounted on a door, holding the door fast against unauthorized entry. When power to the magnetic lock is turned off, the electromagnet releases the armature plate, allowing the door to open.

SPECIFICATIONS

Power

12~24VDC



Magnet Size

23/4 x 11/4 x 13/16 in. (70 x 31 x 20 mm)



Armature Size

23/8 x 11/4 x 23/64 in. (60 x 31 x 9 mm)



Holding Force

80 lb. (36kg.) @ 12VDC





110lb.(51Kg.) @ 24VDC



Current Drain

85mA @ 12VDC





165mA @ 24VDC



Voltage Tolerance

± 10%



Housing

Aluminum



Temperature

14°F to 131°F (-10°C to 55°C)



Weight

0.90 lb. (410 grams)















Page 1

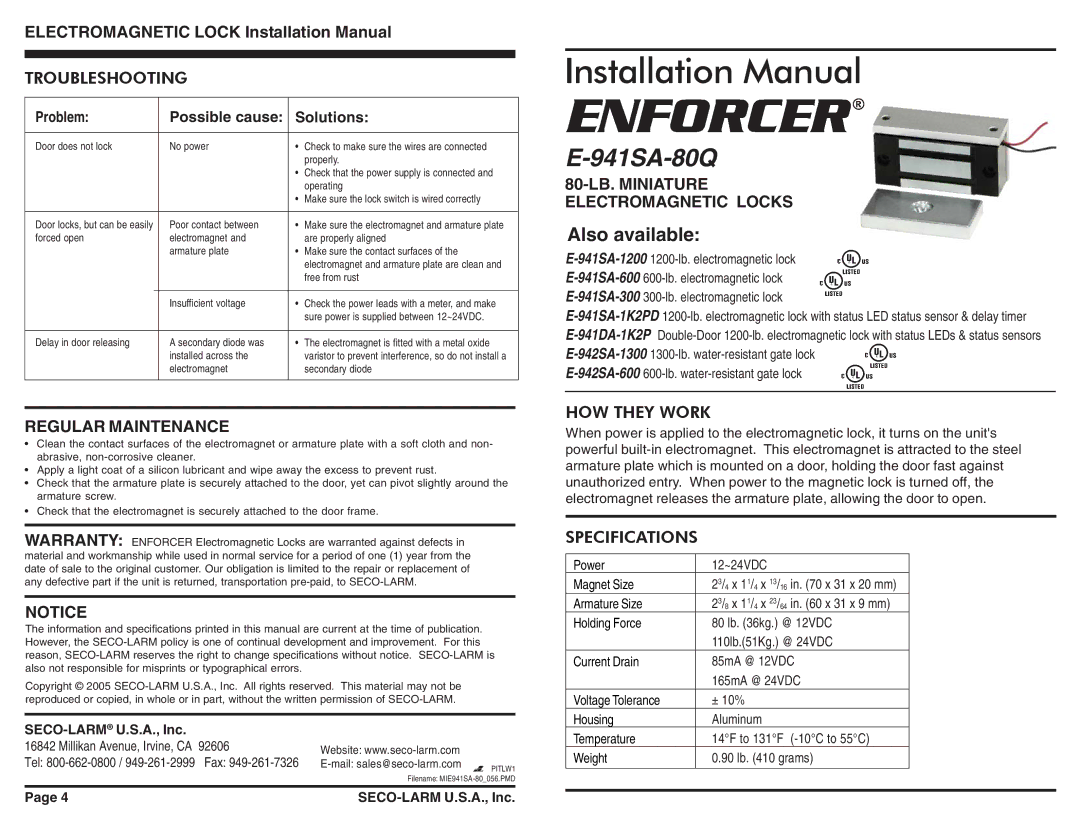

Image 1
SECO-LARM USA E-942SA-600 specifications Troubleshooting, Regular Maintenance, 80-LB. Miniature Electromagnetic Locks

E-942SA-1300, E-942SA-600, E-941SA-80Q specifications

SECO-LARM USA is a recognized leader in providing innovative security solutions, and among their impressive product range are the E-942SA series entry products. Specifically, the E-942SA-1300, E-942SA-600, and E-941SA-80Q stand out for their efficient performance and robust features, making them ideal for various security applications.

The E-942SA-1300 is a surface-mounted electric strike designed to work with various lock types, ensuring compatibility with most access control systems. This model operates on a 12-24 VDC input, catering to a wide range of installation requirements. One of its notable features is the fail-safe mechanism, which allows the door to unlock when power is lost, ensuring safe exit in emergencies. Additionally, the E-942SA-1300 has an adjustable latch for easy installation and alignment, enhancing its usability.

The E-942SA-600 model offers similar versatility but comes with a secondary feature set that makes it suitable for high-security environments. It boasts a stainless-steel construction, providing durability and resistance to tampering. This model features a unique locking mechanism that reinforces the strike and prevents forced entry, making it an excellent choice for locations that require heightened security measures.

In contrast, the E-941SA-80Q is more compact yet equally effective. This model is specifically designed for applications where space is limited without compromising security. Its ultra-slim form factor allows it to fit into narrow frames, making it an ideal choice for office environments and retail spaces. The E-941SA-80Q also supports various locking systems, further enhancing its versatility.

All three models utilize advanced technology, such as low power consumption, ensuring energy efficiency while maintaining consistent performance. They are also designed to integrate seamlessly with existing access control systems, offering users enhanced flexibility. In addition, SECO-LARM supports these products with comprehensive customer service and technical assistance, ensuring that end-users receive the support they need for a successful installation.

In conclusion, the SECO-LARM USA E-942SA-1300, E-942SA-600, and E-941SA-80Q models serve as exceptional choices for enhancing security in a variety of settings. Their advanced features, compatibility with different locking mechanisms, and robust construction make them stand out in the competitive market of electric strikes, solidifying SECO-LARM's reputation as a trusted provider of security solutions.
