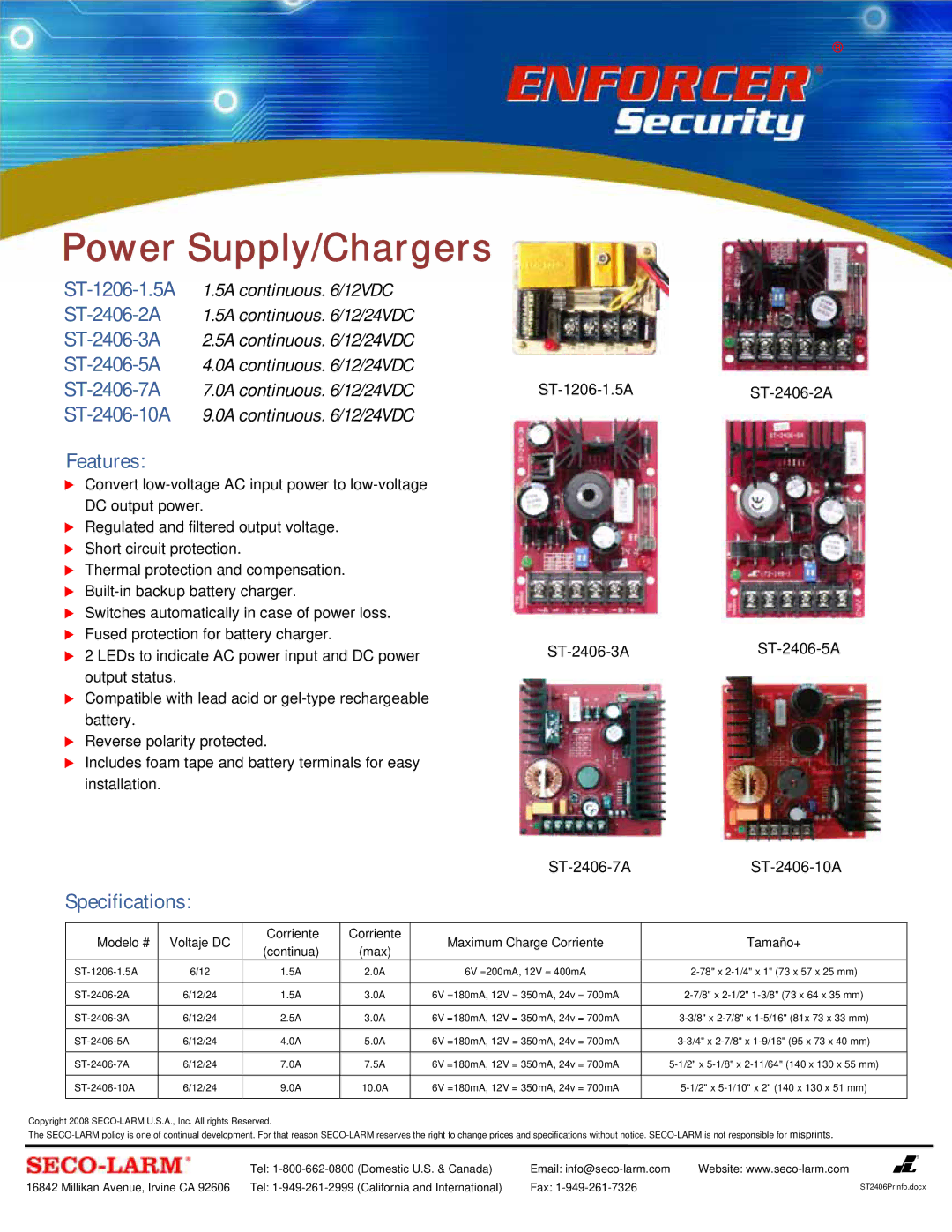

SECO-LARM USA ST-2406-5A specifications Features, Specifications, Power Supply/Chargers

®

Power Supply/Chargers

ST-1206-1.5A1.5A continuous. 6/12VDC

ST-2406-2A1.5A continuous. 6/12/24VDC

ST-2406-3A2.5A continuous. 6/12/24VDC

ST-2406-5A4.0A continuous. 6/12/24VDC

ST-2406-7A7.0A continuous. 6/12/24VDC ST-2406-10A9.0A continuous. 6/12/24VDC

Features:

XConvert low-voltage AC input power to low-voltage DC output power.

XRegulated and filtered output voltage.

XShort circuit protection.

XThermal protection and compensation.

XBuilt-in backup battery charger.

XSwitches automatically in case of power loss.

XFused protection for battery charger.

X2 LEDs to indicate AC power input and DC power output status.

XCompatible with lead acid or gel-type rechargeable battery.

XReverse polarity protected.

XIncludes foam tape and battery terminals for easy installation.

ST-1206-1.5AST-2406-2A

ST-2406-3AST-2406-5A

ST-2406-7AST-2406-10A

Specifications:

Modelo #	Voltaje DC	Corriente	Corriente	Maximum Charge Corriente
		(continua)	(max)
ST-1206-1.5A	6/12	1.5A	2.0A	6V =200mA, 12V = 400mA
ST-2406-2A	6/12/24	1.5A	3.0A	6V =180mA, 12V = 350mA, 24v = 700mA
ST-2406-3A	6/12/24	2.5A	3.0A	6V =180mA, 12V = 350mA, 24v = 700mA
ST-2406-5A	6/12/24	4.0A	5.0A	6V =180mA, 12V = 350mA, 24v = 700mA
ST-2406-7A	6/12/24	7.0A	7.5A	6V =180mA, 12V = 350mA, 24v = 700mA
ST-2406-10A	6/12/24	9.0A	10.0A	6V =180mA, 12V = 350mA, 24v = 700mA

Tamaño+

2-78" x 2-1/4" x 1" (73 x 57 x 25 mm)

2-7/8" x 2-1/2" 1-3/8" (73 x 64 x 35 mm)

3-3/8" x 2-7/8" x 1-5/16" (81x 73 x 33 mm)

3-3/4" x 2-7/8" x 1-9/16" (95 x 73 x 40 mm) 5-1/2" x 5-1/8" x 2-11/64" (140 x 130 x 55 mm) 5-1/2" x 5-1/10" x 2" (140 x 130 x 51 mm)

Copyright 2008 SECO-LARM U.S.A., Inc. All rights Reserved.

The SECO-LARM policy is one of continual development. For that reason SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
