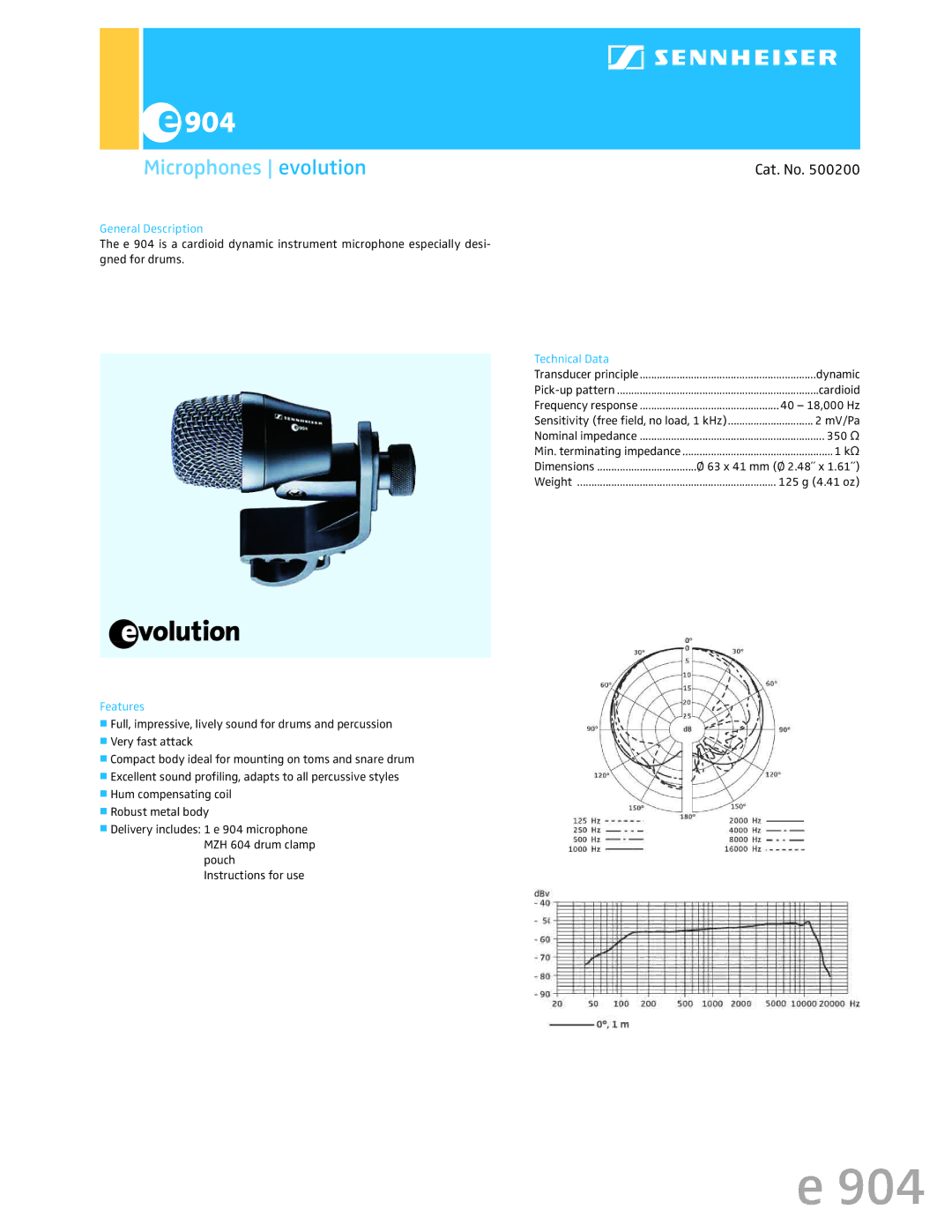

Cat. No. 500200
Microphones | evolution
General Description
The e 904 is a cardioid d ynamic instr ument microp hone especia lly desi-
gned for drums.
Features
J Full, impressive, lively sound for drums and percussion
J Very fast attack
J Compact body ideal for mounting on toms and snare drum
J Excellent sound profiling, adapts to all percussive styles
J Hum compensating coil
J Robust metal body
J Delivery includes: 1 e 904 microphone
MZH 604 drum clamp
pouch
Instructions for use
Technical Data
Transducer principle ..............................................................dynamic
Pick-up pattern .......................................................................cardioid
Frequency response .................................................40 – 18,000 Hz
Sensitivity (free field, no load, 1 kHz) ..............................2 mV/Pa
Nominal impedance .................................................................350
Min. terminating impedance .....................................................1 k
Dimensions ...................................Ø 63 x 41 mm (Ø 2.48˝ x 1.61˝)
Weight ......................................................................125 g (4.41 oz)
