Microphone can be worn on either left or right-hand side

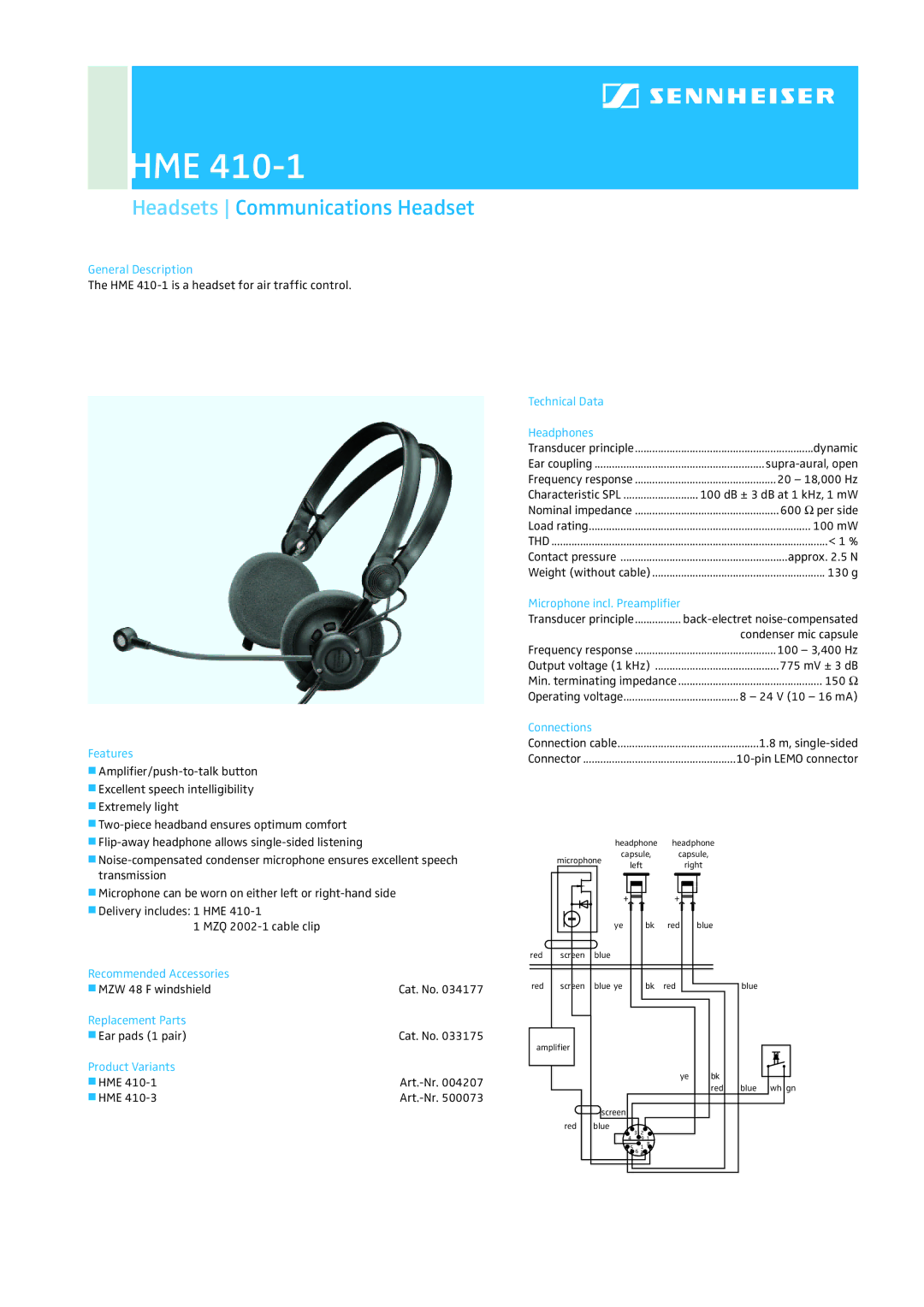

HME 410-1

Headsets Communications Headset

General Description

The HME 410-1 is a headset for air traffic control.

Features

Amplifier/push-to-talk button

Excellent speech intelligibility

Extremely light

Two-piece headband ensures optimum comfort

Flip-away headphone allows single-sided listening

￿Noise-compensated condenser microphone ensures excellent speech transmission

￿Delivery includes: 1 HME 410-1

1 MZQ 2002-1 cable clip

Recommended Accessories
MZW 48 F windshield	Cat. No. 034177
Replacement Parts
Ear pads (1 pair)	Cat. No. 033175
￿
Product￿HME 410Variants-1	Art.-Nr. 004207
￿HME 410-3	Art.-Nr. 500073

Technical Data
Headphones
Transducer principle	dynamic
Ear coupling	supra-aural, open
Frequency response	20 – 18,000 Hz
Characteristic SPL	100 dB ± 3 dB at 1 kHz, 1 mW
Nominal impedance	600 Ω per side
Load rating	100 mW
THD	< 1 %
Contact pressure	approx. 2.5 N
Weight (without cable)	130 g
Microphone incl. Preamplifier
Transducer principle	back-electret noise-compensated
	condenser mic capsule
Frequency response	100 – 3,400 Hz
Output voltage (1 kHz)	775 mV ± 3 dB
Min. terminating impedance	150 Ω
Operating voltage	8 – 24 V (10 – 16 mA)
Connections
Connection cable	1.8 m, single-sided
Connector	10-pin LEMO connector

	headphone		headphone
	capsule,		capsule,
	microphone	left		right
		+	+
	ye	bk	red	blue
red	screen blue

red	screen blue ye	bk red		blue
amplifier
		ye	bk
			red	blue wh gn

screen

red blue

3 2

49 1

5 1 8

6 07
