Sharp AR-PF1 MX-M260/MX-M310 S P E C I F I C AT I O N S, PCL6 Network Print Controller optional

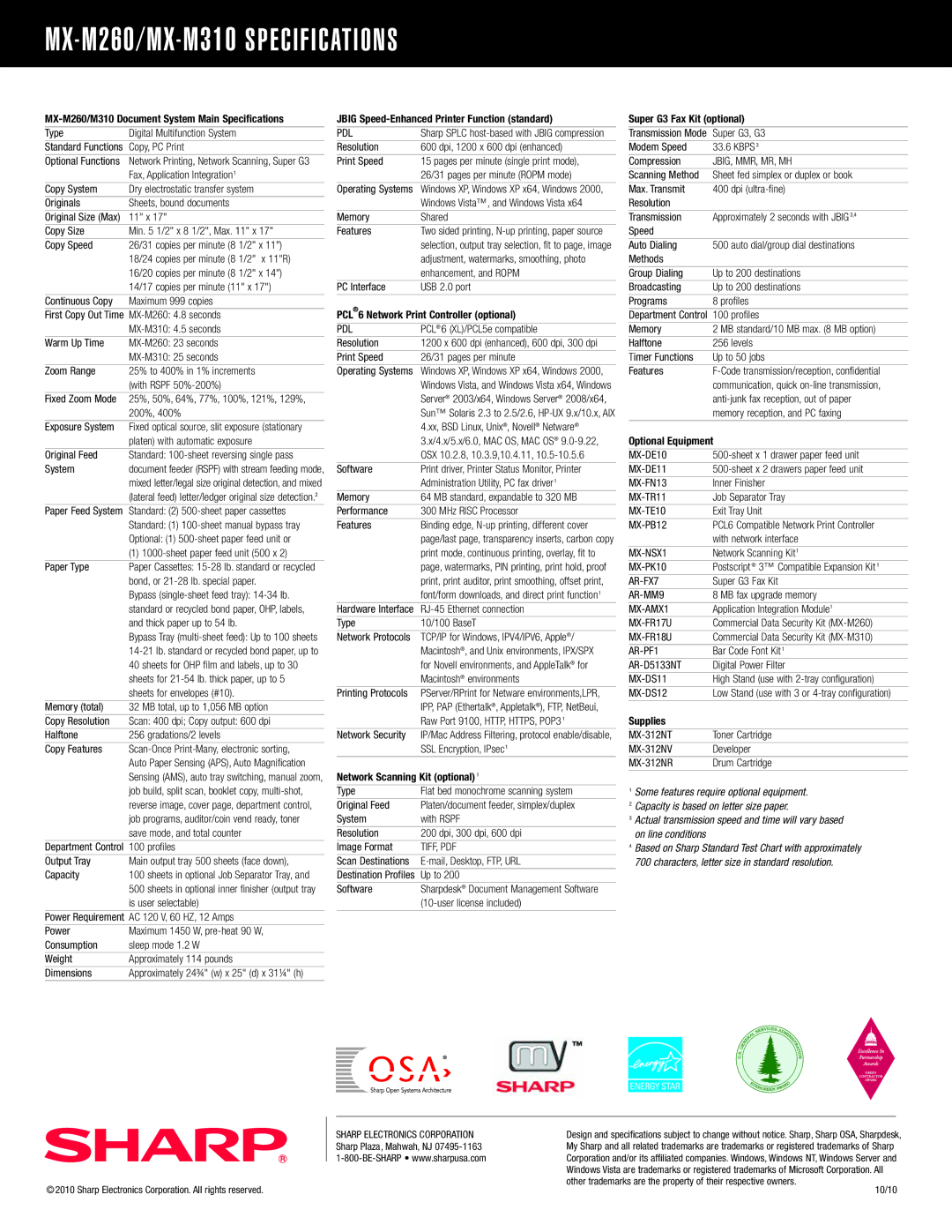

MX-M260/MX-M310S P E C I F I C AT I O N S

MX-M260/M310 Document System Main Specifications

Type	Digital Multifunction System
Standard Functions	Copy, PC Print
Optional Functions	Network Printing, Network Scanning, Super G3
	Fax, Application Integration1
Copy System	Dry electrostatic transfer system
Originals	Sheets, bound documents
Original Size (Max)	11" x 17"
Copy Size	Min. 5 1/2" x 8 1/2", Max. 11" x 17"
Copy Speed	26/31 copies per minute (8 1/2" x 11")
	18/24 copies per minute (8 1/2" x 11"R)
	16/20 copies per minute (8 1/2" x 14")
	14/17 copies per minute (11" x 17")
Continuous Copy	Maximum 999 copies
First Copy Out Time	MX-M260: 4.8 seconds
	MX-M310: 4.5 seconds
Warm Up Time	MX-M260: 23 seconds
	MX-M310: 25 seconds
Zoom Range	25% to 400% in 1% increments
	(with RSPF 50%-200%)
Fixed Zoom Mode	25%, 50%, 64%, 77%, 100%, 121%, 129%,
	200%, 400%
Exposure System	Fixed optical source, slit exposure (stationary
	platen) with automatic exposure
Original Feed	Standard: 100-sheet reversing single pass
System	document feeder (RSPF) with stream feeding mode,
	mixed letter/legal size original detection, and mixed
	(lateral feed) letter/ledger original size detection.2
Paper Feed System	Standard: (2) 500-sheet paper cassettes
	Standard: (1) 100-sheet manual bypass tray
	Optional: (1) 500-sheet paper feed unit or
	(1) 1000-sheet paper feed unit (500 x 2)
Paper Type	Paper Cassettes: 15-28 lb. standard or recycled
	bond, or 21-28 lb. special paper.
	Bypass (single-sheet feed tray): 14-34 lb.
	standard or recycled bond paper, OHP, labels,
	and thick paper up to 54 lb.
	Bypass Tray (multi-sheet feed): Up to 100 sheets
	14-21 lb. standard or recycled bond paper, up to
	40 sheets for OHP film and labels, up to 30
	sheets for 21-54 lb. thick paper, up to 5
	sheets for envelopes (#10).
Memory (total)	32 MB total, up to 1,056 MB option
Copy Resolution	Scan: 400 dpi; Copy output: 600 dpi
Halftone	256 gradations/2 levels
Copy Features	Scan-Once Print-Many, electronic sorting,
	Auto Paper Sensing (APS), Auto Magnification
	Sensing (AMS), auto tray switching, manual zoom,
	job build, split scan, booklet copy, multi-shot,
	reverse image, cover page, department control,
	job programs, auditor/coin vend ready, toner
	save mode, and total counter
Department Control	100 profiles
Output Tray	Main output tray 500 sheets (face down),
Capacity	100 sheets in optional Job Separator Tray, and
	500 sheets in optional inner finisher (output tray
	is user selectable)
Power Requirement AC 120 V, 60 HZ, 12 Amps
Power	Maximum 1450 W, pre-heat 90 W,
Consumption	sleep mode 1.2 W
Weight	Approximately 114 pounds
Dimensions	Approximately 24¾" (w) x 25" (d) x 31¼" (h)

JBIG Speed-Enhanced Printer Function (standard)

PDL		Sharp SPLC host-based with JBIG compression
Resolution		600 dpi, 1200 x 600 dpi (enhanced)
Print Speed		15 pages per minute (single print mode),
		26/31 pages per minute (ROPM mode)
	Operating Systems	Windows XP, Windows XP x64, Windows 2000,
		Windows Vista™, and Windows Vista x64
	Memory	Shared
Features		Two sided printing, N-up printing, paper source
		selection, output tray selection, fit to page, image
		adjustment, watermarks, smoothing, photo
		enhancement, and ROPM
	PC Interface	USB 2.0 port
PCL®6 Network Print Controller (optional)
PDL		PCL® 6 (XL)/PCL5e compatible
Resolution		1200 x 600 dpi (enhanced), 600 dpi, 300 dpi
Print Speed		26/31 pages per minute
Operating Systems		Windows XP, Windows XP x64, Windows 2000,
		Windows Vista, and Windows Vista x64, Windows
		Server® 2003/x64, Windows Server® 2008/x64,
		Sun™ Solaris 2.3 to 2.5/2.6, HP-UX 9.x/10.x, AIX
		4.xx, BSD Linux, Unix®, Novell® Netware®
		3.x/4.x/5.x/6.0, MAC OS, MAC OS® 9.0-9.22,
		OSX 10.2.8, 10.3.9,10.4.11, 10.5-10.5.6
	Software	Print driver, Printer Status Monitor, Printer
		Administration Utility, PC fax driver1
	Memory	64 MB standard, expandable to 320 MB
Performance		300 MHz RISC Processor
Features		Binding edge, N-up printing, different cover
		page/last page, transparency inserts, carbon copy
		print mode, continuous printing, overlay, fit to
		page, watermarks, PIN printing, print hold, proof
		print, print auditor, print smoothing, offset print,
		font/form downloads, and direct print function1
	Hardware Interface	RJ-45 Ethernet connection
Type		10/100 BaseT
Network Protocols		TCP/IP for Windows, IPV4/IPV6, Apple®/
		Macintosh®, and Unix environments, IPX/SPX
		for Novell environments, and AppleTalk® for
		Macintosh® environments
	Printing Protocols	PServer/RPrint for Netware environments,LPR,
		IPP, PAP (Ethertalk®, Appletalk®), FTP, NetBeui,
		Raw Port 9100, HTTP, HTTPS, POP3 1
	Network Security	IP/Mac Address Filtering, protocol enable/disable,
		SSL Encryption, IPsec1

Network Scanning Kit (optional) 1

Type	Flat bed monochrome scanning system
Original Feed	Platen/document feeder, simplex/duplex
System	with RSPF
Resolution	200 dpi, 300 dpi, 600 dpi
Image Format	TIFF, PDF
Scan Destinations	E-mail, Desktop, FTP, URL
Destination Profiles	Up to 200
Software	Sharpdesk® Document Management Software
	(10-user license included)

Super G3 Fax Kit (optional)

Transmission Mode	Super G3, G3
Modem Speed	33.6 KBPS 3
Compression	JBIG, MMR, MR, MH
Scanning Method	Sheet fed simplex or duplex or book
Max. Transmit	400 dpi (ultra-fine)
Resolution
Transmission	Approximately 2 seconds with JBIG 3,4
Speed
Auto Dialing	500 auto dial/group dial destinations
Methods
Group Dialing	Up to 200 destinations
Broadcasting	Up to 200 destinations
Programs	8 profiles
Department Control	100 profiles
Memory	2 MB standard/10 MB max. (8 MB option)
Halftone	256 levels
Timer Functions	Up to 50 jobs
Features	F-Code transmission/reception, confidential
	communication, quick on-line transmission,
	anti-junk fax reception, out of paper
	memory reception, and PC faxing
Optional Equipment
MX-DE10	500-sheet x 1 drawer paper feed unit
MX-DE11	500-sheet x 2 drawers paper feed unit
MX-FN13	Inner Finisher
MX-TR11	Job Separator Tray
MX-TE10	Exit Tray Unit
MX-PB12	PCL6 Compatible Network Print Controller
	with network interface
MX-NSX1	Network Scanning Kit1
MX-PK10	Postscript ® 3™ Compatible Expansion Kit 1
AR-FX7	Super G3 Fax Kit
AR-MM9	8 MB fax upgrade memory
MX-AMX1	Application Integration Module1
MX-FR17U	Commercial Data Security Kit (MX-M260)
MX-FR18U	Commercial Data Security Kit (MX-M310)
AR-PF1	Bar Code Font Kit 1
AR-D5133NT	Digital Power Filter
MX-DS11	High Stand (use with 2-tray configuration)
MX-DS12	Low Stand (use with 3 or 4-tray configuration)
Supplies
MX-312NT	Toner Cartridge
MX-312NV	Developer
MX-312NR	Drum Cartridge

1Some features require optional equipment.

2Capacity is based on letter size paper.

3Actual transmission speed and time will vary based on line conditions

4Based on Sharp Standard Test Chart with approximately 700 characters, letter size in standard resolution.
