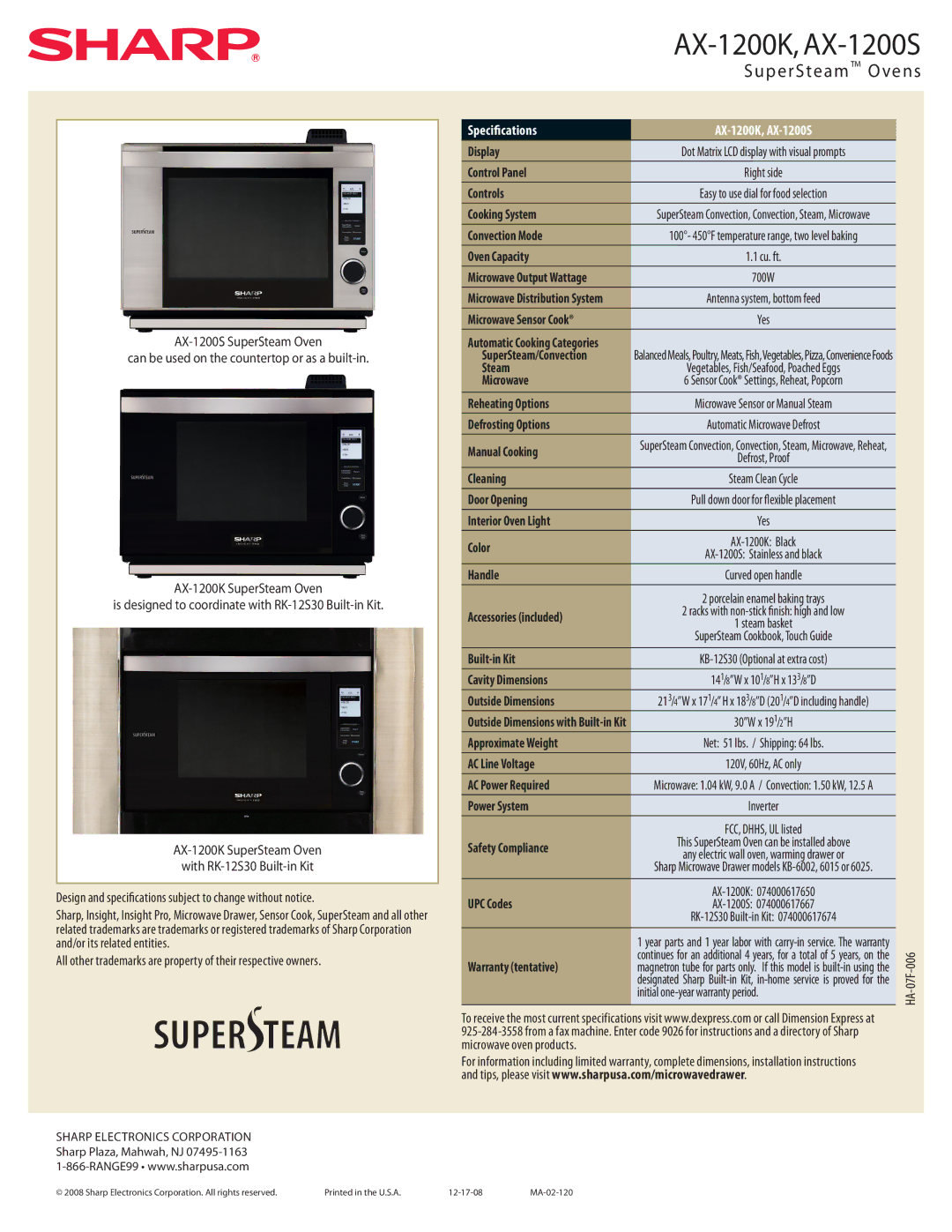

Sharp manual AX-1200K, AX-1200S, SuperSteam Ovens, Specifications

AX-1200S SuperSteam Oven

can be used on the countertop or as a built-in.

AX-1200K SuperSteam Oven

is designed to coordinate with RK-12S30 Built-in Kit.

AX-1200K SuperSteam Oven

with RK-12S30 Built-in Kit

Design and specifications subject to change without notice.

Sharp, Insight, Insight Pro, Microwave Drawer, Sensor Cook, SuperSteam and all other related trademarks are trademarks or registered trademarks of Sharp Corporation and/or its related entities.

All other trademarks are property of their respective owners.

Sharp Electronics Corporation Sharp Plaza, Mahwah, NJ 07495-1163 1-866-RANGE99 • www.sharpusa.com

	AX-1200K, AX-1200S
	SuperSteam™ Ovens
Specifications	AX-1200K, AX-1200S
Display	Dot Matrix LCD display with visual prompts
Control Panel	Right side
Controls	Easy to use dial for food selection
Cooking System	SuperSteam Convection, Convection, Steam, Microwave
Convection Mode	100°- 450°F temperature range, two level baking
Oven Capacity	1.1 cu. ft.
Microwave Output Wattage	700W
Microwave Distribution System	Antenna system, bottom feed
Microwave Sensor Cook®	Yes
Automatic Cooking Categories	Balanced Meals, Poultry, Meats, Fish,Vegetables, Pizza, Convenience Foods
SuperSteam/Convection
Steam	Vegetables, Fish/Seafood, Poached Eggs
Microwave	6 Sensor Cook® Settings, Reheat, Popcorn
Reheating Options	Microwave Sensor or Manual Steam
Defrosting Options	Automatic Microwave Defrost
Manual Cooking	SuperSteam Convection, Convection, Steam, Microwave, Reheat,
	Defrost, Proof
Cleaning	Steam Clean Cycle
Door Opening	Pull down door for flexible placement
Interior Oven Light	Yes
Color	AX-1200K: Black
	AX-1200S: Stainless and black
Handle	Curved open handle
	2 porcelain enamel baking trays
Accessories (included)	2 racks with non-stick finish: high and low
	1 steam basket
	SuperSteam Cookbook, Touch Guide
Built-in Kit	KB-12S30 (Optional at extra cost)
Cavity Dimensions	141/8”W x 101/8”H x 133/8”D
Outside Dimensions	213/4”W x 171/4” H x 183/8”D (201/4”D including handle)
Outside Dimensions with Built-in Kit	30”W x 191/2”H
Approximate Weight	Net: 51 lbs. / Shipping: 64 lbs.
AC Line Voltage	120V, 60Hz, AC only
AC Power Required	Microwave: 1.04 kW, 9.0 A / Convection: 1.50 kW, 12.5 A
Power System	Inverter
	FCC, DHHS, UL listed
Safety Compliance	This SuperSteam Oven can be installed above
	any electric wall oven, warming drawer or
	Sharp Microwave Drawer models KB-6002, 6015 or 6025.
UPC Codes	AX-1200K: 074000617650
	AX-1200S: 074000617667
	RK-12S30 Built-in Kit: 074000617674
	1 year parts and 1 year labor with carry-in service. The warranty
Warranty (tentative)	continues for an additional 4 years, for a total of 5 years, on the	-006
	magnetron tube for parts only. If this model is built-in using the
	designated Sharp Built-in Kit, in-home service is proved for the		07F
	initial one-year warranty period.	-
			HA

To receive the most current specifications visit www.dexpress.com or call Dimension Express at 925-284-3558 from a fax machine. Enter code 9026 for instructions and a directory of Sharp microwave oven products.

For information including limited warranty, complete dimensions, installation instructions and tips, please visit www.sharpusa.com/microwavedrawer.

© 2008 Sharp Electronics Corporation. All rights reserved. Printed in the U.S.A. 12-17-08 MA-02-120
