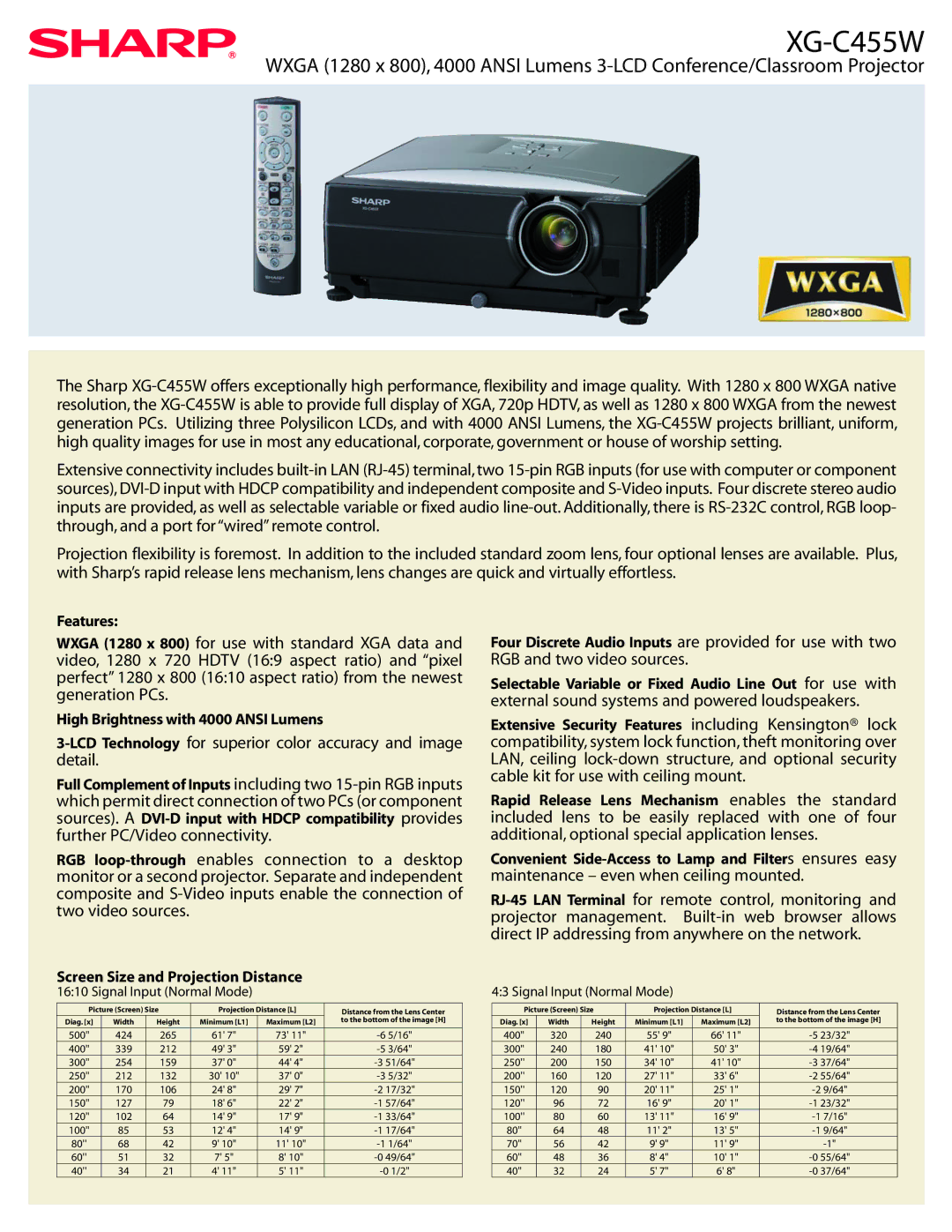

XG-C455W

WXGA (1280 x 800), 4000 ANSI Lumens 3-LCD Conference/Classroom Projector

The Sharp XG-C455W offers exceptionally high performance, flexibility and image quality. With 1280 x 800 WXGA native resolution, the XG-C455W is able to provide full display of XGA, 720p HDTV, as well as 1280 x 800 WXGA from the newest generation PCs. Utilizing three Polysilicon LCDs, and with 4000 ANSI Lumens, the XG-C455W projects brilliant, uniform, high quality images for use in most any educational, corporate, government or house of worship setting.

Extensive connectivity includes built-in LAN (RJ-45) terminal, two 15-pin RGB inputs (for use with computer or component sources), DVI-D input with HDCP compatibility and independent composite and S-Video inputs. Four discrete stereo audio inputs are provided, as well as selectable variable or fixed audio line-out. Additionally, there is RS-232C control, RGB loop- through, and a port for “wired” remote control.

Projection flexibility is foremost. In addition to the included standard zoom lens, four optional lenses are available. Plus, with Sharp’s rapid release lens mechanism, lens changes are quick and virtually effortless.

Features:

WXGA (1280 x 800) for use with standard XGA data and video, 1280 x 720 HDTV (16:9 aspect ratio) and “pixel perfect” 1280 x 800 (16:10 aspect ratio) from the newest generation PCs.

High Brightness with 4000 ANSI Lumens

3-LCD Technology for superior color accuracy and image detail.

Full Complement of Inputs including two 15-pin RGB inputs which permit direct connection of two PCs (or component sources). A DVI-D input with HDCP compatibility provides further PC/Video connectivity.

RGB loop-throughenables connection to a desktop monitor or a second projector. Separate and independent composite and S-Video inputs enable the connection of two video sources.

Screen Size and Projection Distance

16:10 Signal Input (Normal Mode)

Picture (Screen) Size			Projection Distance [L]		Distance from the Lens Center
Diag. [x]	Width	Height	Minimum [L1]	Maximum [L2]	to the bottom of the image [H]
500''	424	265	61' 7"	73' 11"	-6 5/16"
400''	339	212	49' 3"	59' 2"	-5 3/64"
300''	254	159	37' 0"	44' 4"	-3 51/64"
250''	212	132	30' 10"	37' 0"	-3 5/32"
200''	170	106	24' 8"	29' 7"	-2 17/32"
150''	127	79	18' 6"	22' 2"	-1 57/64"
120''	102	64	14' 9"	17' 9"	-1 33/64"
100''	85	53	12' 4"	14' 9"	-1 17/64"
80''	68	42	9' 10"	11' 10"	-1 1/64"
60''	51	32	7' 5"	8' 10"	-0 49/64"
40''	34	21	4' 11"	5' 11"	-0 1/2"

Four Discrete Audio Inputs are provided for use with two RGB and two video sources.

Selectable Variable or Fixed Audio Line Out for use with external sound systems and powered loudspeakers.

Extensive Security Features including Kensington® lock compatibility, system lock function, theft monitoring over LAN, ceiling lock-down structure, and optional security cable kit for use with ceiling mount.

Rapid Release Lens Mechanism enables the standard included lens to be easily replaced with one of four additional, optional special application lenses.

Convenient Side-Access to Lamp and Filters ensures easy maintenance – even when ceiling mounted.

RJ-45 LAN Terminal for remote control, monitoring and projector management. Built-in web browser allows direct IP addressing from anywhere on the network.

4:3 Signal Input (Normal Mode)

Picture (Screen) Size			Projection Distance [L]		Distance from the Lens Center
Diag. [x]	Width	Height	Minimum [L1]	Maximum [L2]	to the bottom of the image [H]
400''	320	240	55' 9"	66' 11"	-5 23/32"
300''	240	180	41' 10"	50' 3"	-4 19/64"
250''	200	150	34' 10"	41' 10"	-3 37/64"
200''	160	120	27' 11"	33' 6"	-2 55/64"
150''	120	90	20' 11"	25' 1"	-2 9/64"
120''	96	72	16' 9"	20' 1"	-1 23/32"
100''	80	60	13' 11"	16' 9"	-1 7/16"
80''	64	48	11' 2"	13' 5"	-1 9/64"
70''	56	42	9' 9"	11' 9"	-1"
60''	48	36	8' 4"	10' 1"	-0 55/64"
40''	32	24	5' 7"	6' 8"	-0 37/64"
