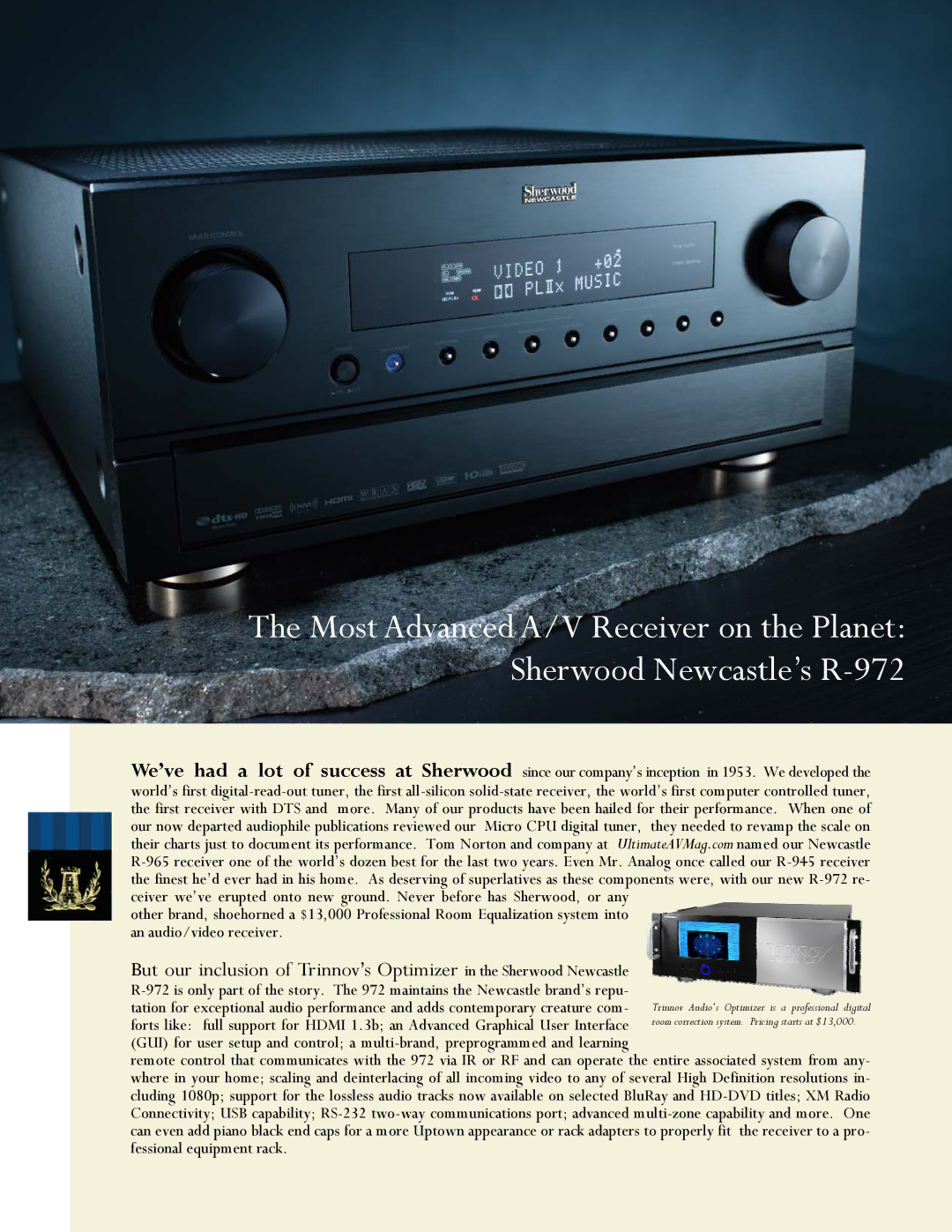

Sherwood Newcastle R-972

Advanced AVR with RF Control, HDMI 1.3, video scaling to 1080p and the Trinnov Optimizer.

Key Features

•HDMI 1.3 with Deep Color Support

•Lossless Audio: DTS Master Audio HD; Dolby TruHD

•DTS 96/24; Neo 6 Cinema & Music

•Dolby: Dolby Digital +, ProLogic IIx; Virtual Speaker; Headphone

•PCM: 96 kHz Multichannel; 192 kHz Stereo

•Converts analog video to HDMI

•Silicon Optix Reon scales all video to 480p; 576p; 720p;1080i;1080p

•Universal Video™ Transcodes Composite & S-Video to component

•XM Radio “Connect and Play” with Neural Surround

•Advanced GUI On Screen Display

•Upgradeable Firmware

•Bi-Directional RS-232 Serial jack/USB Input and output

•Direct Analog input (number of channels)

•24-bit A to D and D to A converters

•Optical/Coaxial digital inputs

•Optical Digital Output

•Independent Room 2 A/V Output

•Independent Room 3 Audio output

•On-Screen Display from HDMI and analog video outputs

•Dual Mode™ RF + IR Preprogrammed and Learning Remote Control

•A/V Synch Delay by input (0 to 200 mS)

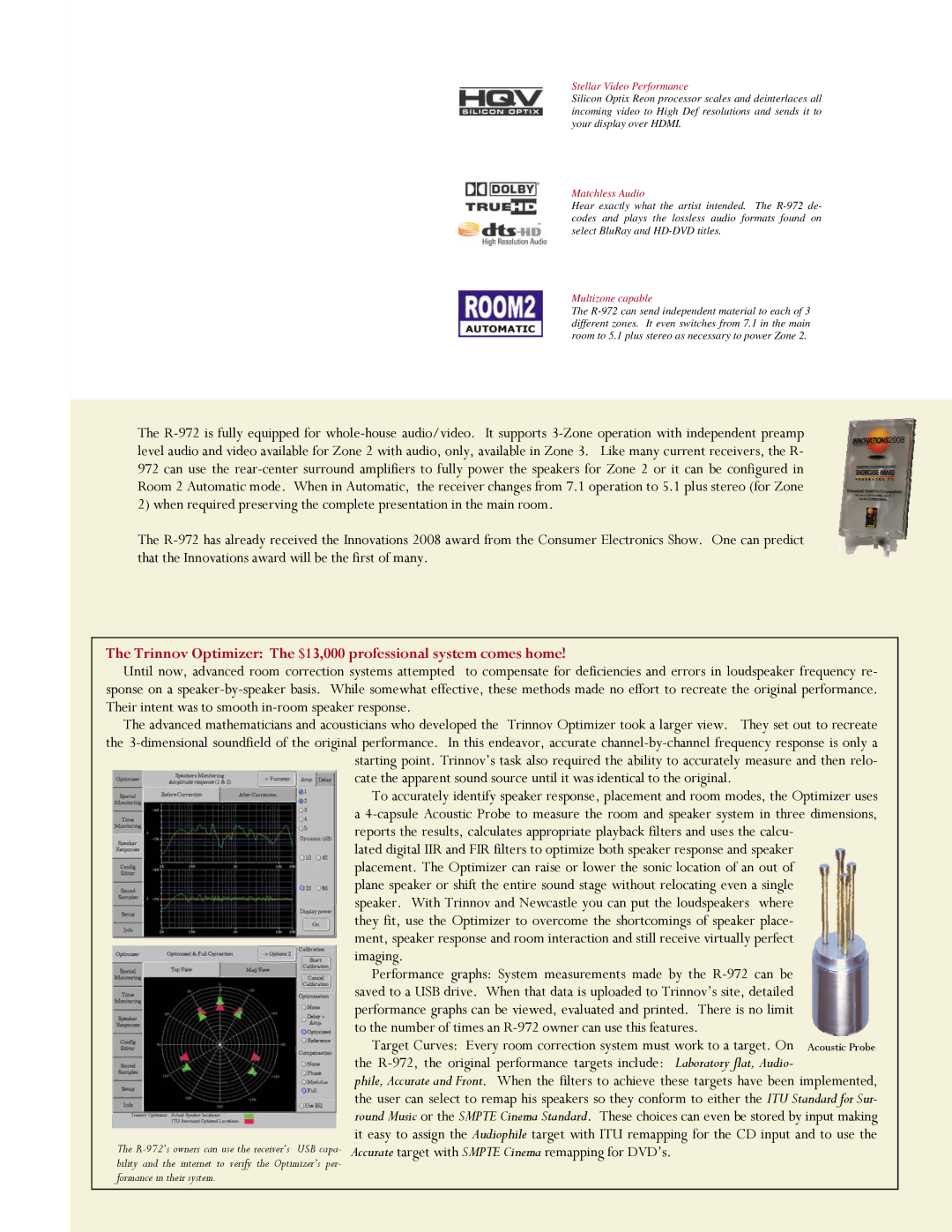

Trinnov Optimizer

•Includes 4 microphone capsule Acoustic Probe

•Measures speaker location & response in 3 dimensions

•Uses FIR and IIR filters to flatten speaker response

•Re-Maps loudspeaker’s acoustic position to recreate original soundfield

•Supports ITU Surround Music and SMPTE Cinema Standards

•Writes before/after curves to USB output for Internet analysis

•USB input allows user to upload new target curves

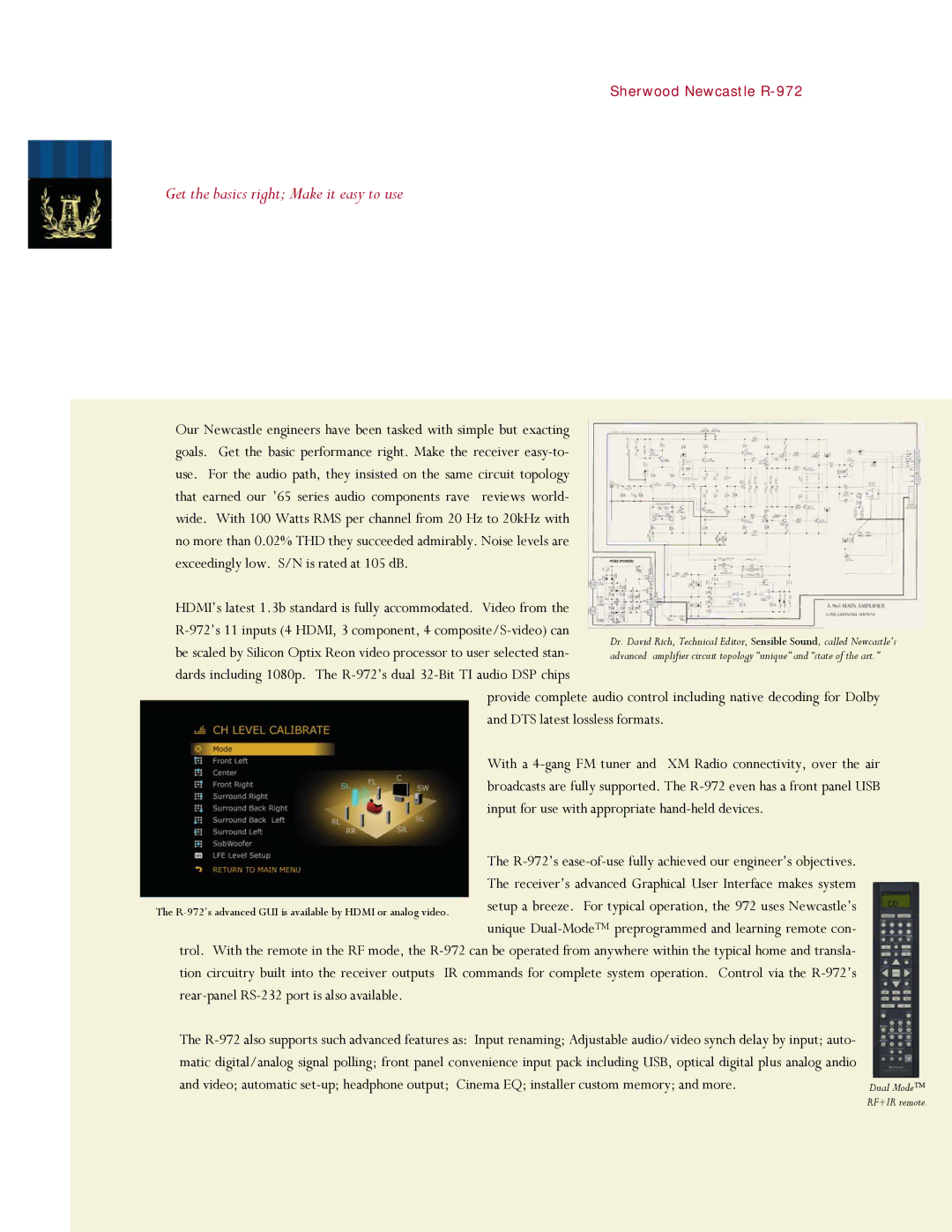

Audio/Video Features

•Dual TI 32-bit DSP processors

•DSP Modes

•Digitally Re-Master PCM to 96 kHz/24-Bit

•12-Volt Trigger

•Pre-amp Outputs, L,C,R,LS,2 CS,RS, Sub

•Rear Panel A/V Inputs/Outputs

•HDMI Input and Output

•Component Video In/Out

•Audio Inputs/out (including tuner)

•Front Panel A/V Input /with toslink

•Front Panel Audio Input for portable, etc.

•Automatic Room 2™ (7.1 to 5.1 + stereo) operation

•Quadruple Independent Crossovers

•Built-in Biamp Capability

•“Installer Custom Memory”

•Converts Remote RF commands to IR output to operate associated units

•IR in / out

•Programmable Video Input Labeling

•Cinema EQ

Tuner Features

•4-Gang Quartz PLL Synthesized Tuning

•XM Connect & Play with 30 presets

•30 Station Presets (Random) with Preset Scan

All copyrights are the property of their respective copyright holder.

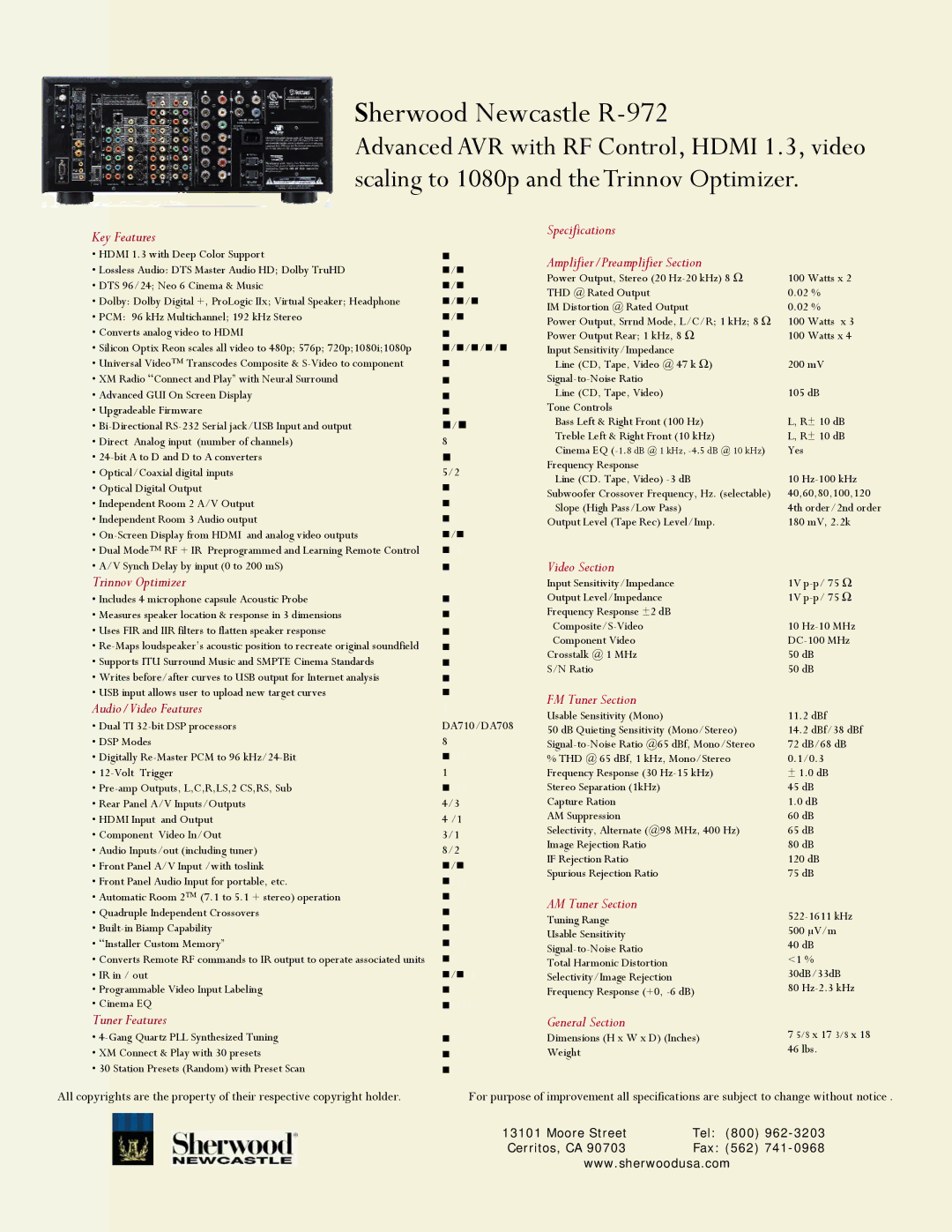

		Specifications
/		Amplifier/Preamplifier Section
		Power Output, Stereo (20 Hz-20 kHz) 8 Ω	100 Watts x 2
/
		THD @ Rated Output	0.02 %
/	/
		IM Distortion @ Rated Output	0.02 %
/
		Power Output, Srrnd Mode, L/C/R; 1 kHz; 8 Ω	100 Watts x 3
/	/ / /	Power Output Rear; 1 kHz, 8 Ω	100 Watts x 4
		Input Sensitivity/Impedance
11		Line (CD, Tape, Video @ 47 k Ω)	200 mV
		Signal-to-Noise Ratio
		Line (CD, Tape, Video)	105 dB
		Tone Controls
/		Bass Left & Right Front (100 Hz)	L, R± 10 dB
		Treble Left & Right Front (10 kHz)	L, R± 10 dB
8
		Cinema EQ (-1.8 dB @ 1 kHz, -4.5 dB @ 10 kHz)	Yes
5/2		Frequency Response
		Line (CD. Tape, Video) -3 dB	10 Hz-100 kHz
11
		Subwoofer Crossover Frequency, Hz. (selectable)	40,60,80,100,120
11
		Slope (High Pass/Low Pass)	4th order/2nd order
1
		Output Level (Tape Rec) Level/Imp.	180 mV, 2.2k
/
11
		Video Section
		Input Sensitivity/Impedance	1V p-p/ 75 Ω
11		Output Level/Impedance	1V p-p/ 75 Ω

11Frequency Response ±2 dB

	Composite/S-Video	10 Hz-10 MHz
	Component Video	DC-100 MHz
	Crosstalk @ 1 MHz	50 dB
	S/N Ratio	50 dB
1	FM Tuner Section
1
	Usable Sensitivity (Mono)	11.2 dBf
DA710/DA708
	50 dB Quieting Sensitivity (Mono/Stereo)	14.2 dBf/38 dBf
8
	Signal-to-Noise Ratio @65 dBf, Mono/Stereo	72 dB/68 dB
111	% THD @ 65 dBf, 1 kHz, Mono/Stereo	0.1/0.3
1	Frequency Response (30 Hz-15 kHz)	± 1.0 dB
111	Stereo Separation (1kHz)	45 dB
4/3	Capture Ration	1.0 dB
4 /1	AM Suppression	60 dB
3/1	Selectivity, Alternate (@98 MHz, 400 Hz)	65 dB
	Image Rejection Ratio	80 dB
8/2
	IF Rejection Ratio	120 dB
/
	Spurious Rejection Ratio	75 dB
111
11	AM Tuner Section
11		522-1611 kHz
	Tuning Range
11
	Usable Sensitivity	500 μV/m
11	Signal-to-Noise Ratio	40 dB
11	Total Harmonic Distortion	<1 %
/ 11	Selectivity/Image Rejection	30dB/33dB
11	Frequency Response (+0, -6 dB)	80 Hz-2.3 kHz
1111
	General Section	7 5/8 x 17 3/8 x 18
11	Dimensions (H x W x D) (Inches)
11	Weight	46 lbs.
11

For purpose of improvement all specifications are subject to change without notice .
