Skuttle Indoor Air Quality Products SK0-0055-001 installation instructions Danger

SK0-0055-001 HUMIDISTAT

INSTALLATION INSTRUCTIONS

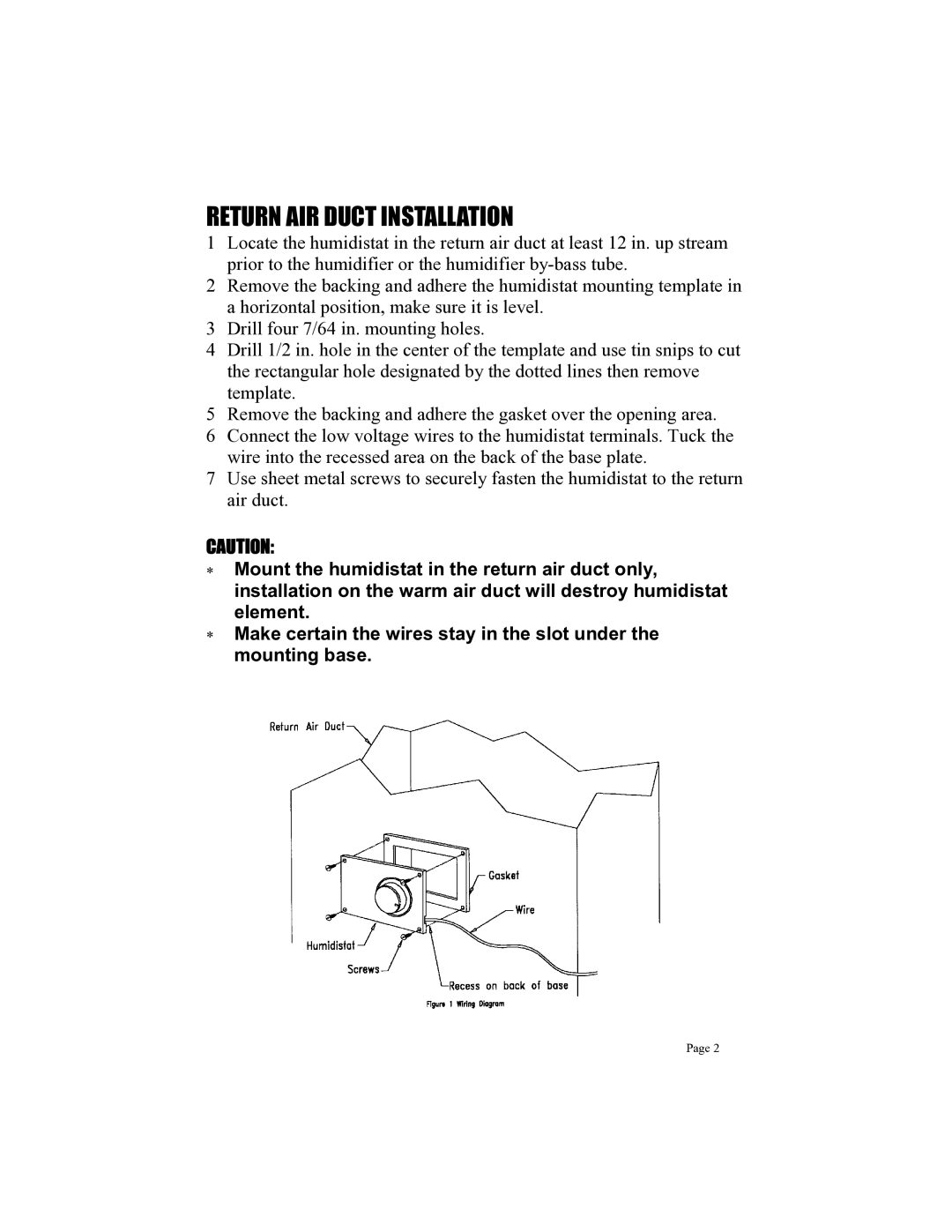

The humidistat is designed for either return air duct or wall mounting. Packaged in a duct mount configuration, (For this type mounting begin installation at the section labeled return air duct installation on page 2.) for conversion to a wall mount configuration simply pull off the knob and remove the mounting screws and rotate the control 180° and reattach the mounting base, (For this type mounting begin installation at the section labeled wall mount installation on page 3.).

DANGER

∗Do not cut or drill any air-conditioning or electrical accessories during installation.

∗Fatal electrocution is possible if you contact a live wire.

∗Electrical power can cause electrical shock

∗Disconnect all electrical power supplied to the equipment before beginning installation.

∗Blindness can occur if freon contacts your eyes.

CAUTION

∗Do not install on any electrical system over 30 VAC

CAUTION

∗All electrical wiring should comply with codes and ordinances.

Recommended Settings		Warning:
At Outside Temperatures	Recommended Setting	Adjusting the
-20°F -30°C	15%	humidity control
-10°F -25°C	20%	higher than the rec-
0°F -20°C	25%	ommended setting
		may cause conden-
+10°F -10°C	30%
		sation resulting in
+20°F -5°C	35%	possible damage to
Over 20°F Over 0°C	40%	the home.

Page 1
