Skylink® Lighting & Garage

DoorRemote

Model 318TRS

1. INTRODUCTION

In this package, you will find a keychain transmitter with 12V alkalinebattery, a wireless switch receiver, a garage door receiver, a red / black wire, a

mounting bracket and a clip.

Wireless Switch

Receiver

Mounting

Garage Door

Receiver

Bracket

Clip



Keychain



Transmitter

Red/Black Wire

(Battery inside)

2. INSTALLATION OF GARAGE DOOR RECEIVER (CONT)

2Plug in the connector end of

the Red/Black wire to the 318R receiver. Note the orientation of the male & femaleconnector.

3 Plug the receiver into an electrical outlet inside the garage.

The red light on the receiver should be on after being plugged into an

2. INSTALLATION OF GARAGE DOOR RECEIVER

The following instructions will show you how to install the receiver. After installing, the keychain transmitter (already programmed to the receiver) can be used to operate your garage door opener.

You need to locate 2 things inside your garage to install the receiver:

1) the wall-mounted door control;

2) an electrical outlet, select an electrical outlet different from the one

already connected to the power cord of the garage door opener to

electricaloutlet.

RECEIVER

Existing wires connected to garage door opener. (Do not remove)

reduce the chance of interference. The further distance between

the receiver and the garage door opener, the less interference

between 2 devices.

Note: The length of the red/black wire is 20ft, so the receiver must be plugged into an electrical outlet that is within 20ft of the wall mounted door control. If there is no electrical outlet within 20ft of the wall mounted door control, an extension cord can be used for temporary installation.

Wall Mounted

Remove power cord of garage

Door Control

door opener before installation.

Electrical



Outlet



Unplug the power cord of your garage door opener before WARNING installation to ensure power is not connected.

1Remove the wall-mounted door control from the wall by removing the screws. Connect the stripped ends of the Red/Black wire to the 2 terminals (2 screws) on the back of the wall mounted door control. (Polarity does not matter.)

Existing wires



Note: There should be another



pair of wires connected to the 2



terminals already. Do not remove/

Red /

disconnect these existing wires.



Black wire



Note: If you see no screws mounting the wall mounted door control, the screws are probably under-neath the front cover. Remove the front cover by pressing onto the tabs on top of the cover.

Remove front cover first

Different wall-mounted door controls

RED/BLACK WIRE

Note: Alternative wiring options are available, the receiver can be connected directly to the opener’s motor. Please contact customer service for further information regarding alternative wiring options.

4Re-connect the power cord of the Garage Door Opener.

5The Left button on the transmitter has been programmed to operate the garage door receiver. Activate this button will trigger the receiver therefore opens the garage door.

3.TROUBLE SHOOTING

Q:Door opener does not react after pressing the button on the transmitter ?

A:- Ensure when the button on the transmitter is pressed, the red light on the transmitter comes on. Otherwise, check if the battery is inserted properly.

-The left button on the transmitter should be pressed, not the right button

-If the red light on the receiver flashes when you press the left button on the transmitter, but the door opener does not respond, please ensure the red/black wire is successfully connected from the receiver to the wall mounted door control.

-Ensure the wires that are previously connected to the wall mounted door control are not loose.

-Ensure the code setting on the transmitter is the same as the receiver. Refer to section 5 to check the code setting.

4.INSTALLATION OF WIRELESS SWITCH RECEIVER

1Plug the receiver into a powered, 120VAC electrical outlet i nside your house. (Note: This receiver is designed to be usedindoor only. Do not use this receiver in an outdoor environment.)

2Once the receiver is plugged into an electrical outlet, the red LED on the front of the unit will be “on” indicating the unit is in standby mode.

3Plug in the light fixture or small appliance that you would like to control into the receiver, as shown.

4If there is a power switch on the plugged in light fixture or small appliance, please turn it on. The receiver is ready to be activated.

5The right button on the transmitter has been programmed to operate the wireless switch receiver, pressing the right button will turn on the plugged in device and the red LED on the front will flash. (Caution: When the red LED on the unit is flashing, that means output outlet is powered. Do not disconnect / con- nect devices from / to the receiver’s outlet when the red LED is flashing.)

Page 1
Image 1

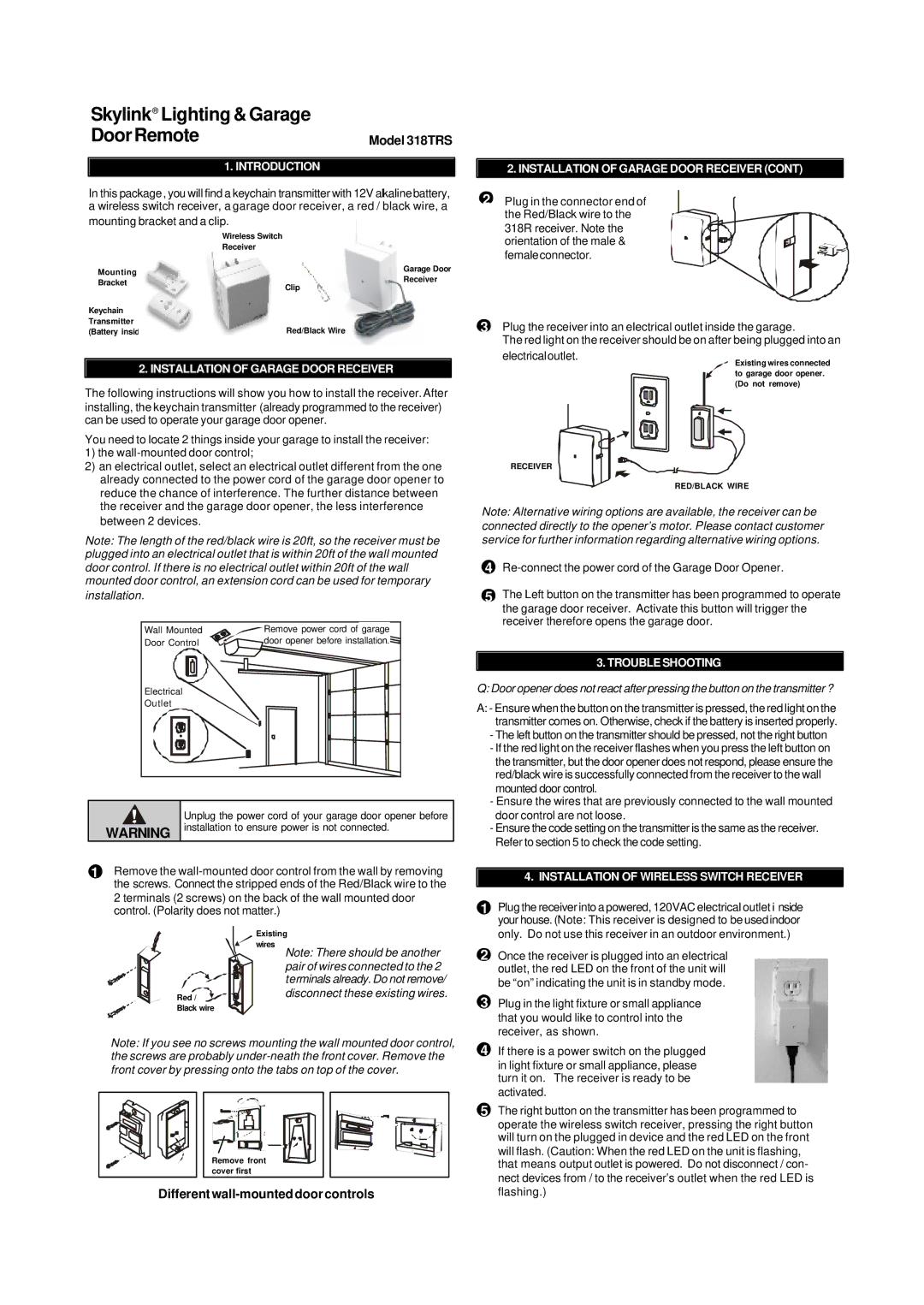

SkyLink 318TRS manual Different wall-mounted door controls, Introduction, Installation of Garage Door Receiver
