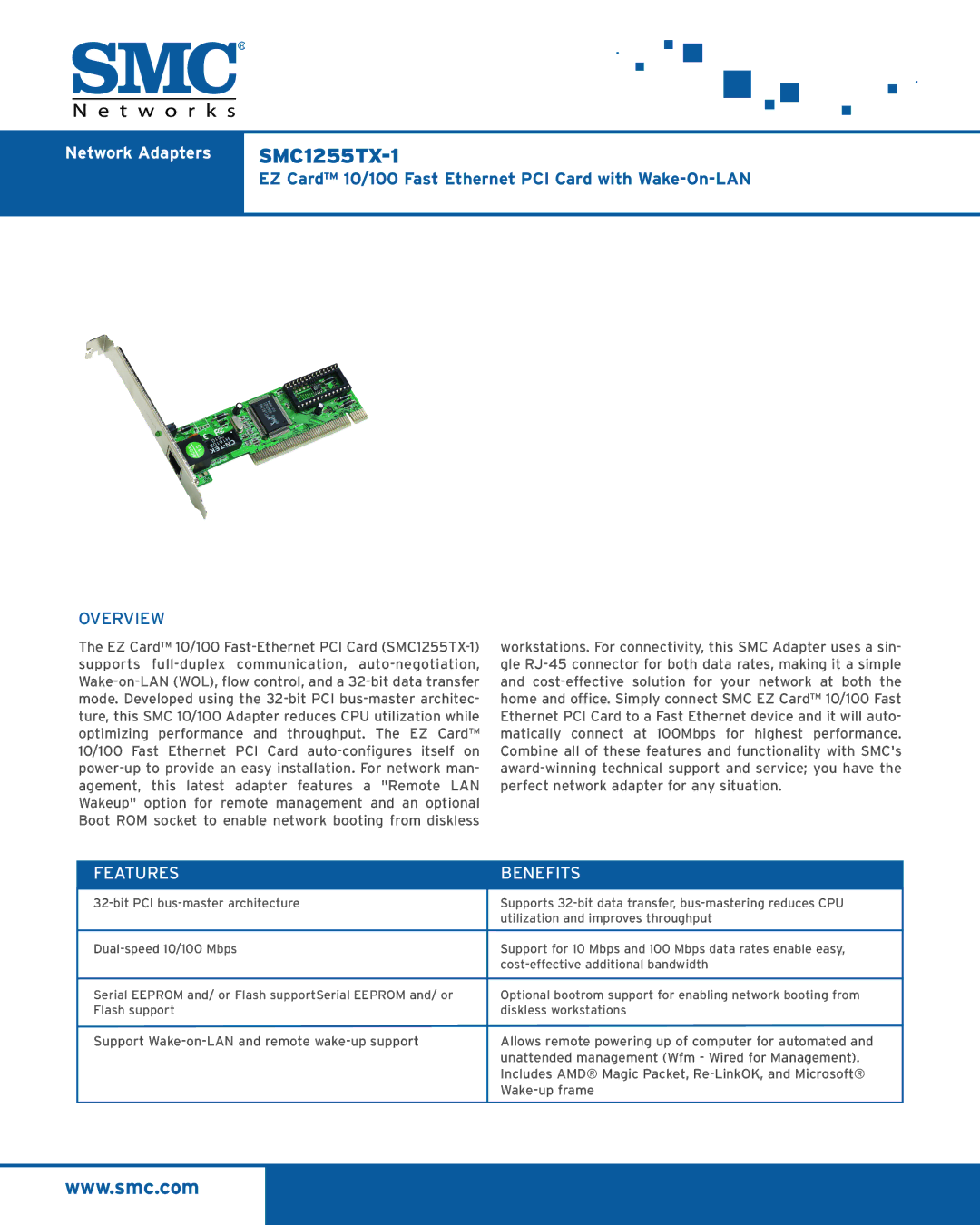

Network Adapters	SMC1255TX-1
	EZ Card™ 10/100 Fast Ethernet PCI Card with Wake-On-LAN

OVERVIEW

The EZ Card™ 10/100 Fast-Ethernet PCI Card (SMC1255TX-1) supports full-duplex communication, auto-negotiation, Wake-on-LAN (WOL), flow control, and a 32-bit data transfer mode. Developed using the 32-bit PCI bus-master architec- ture, this SMC 10/100 Adapter reduces CPU utilization while optimizing performance and throughput. The EZ Card™ 10/100 Fast Ethernet PCI Card auto-configures itself on power-up to provide an easy installation. For network man- agement, this latest adapter features a "Remote LAN Wakeup" option for remote management and an optional Boot ROM socket to enable network booting from diskless

workstations. For connectivity, this SMC Adapter uses a sin- gle RJ-45 connector for both data rates, making it a simple and cost-effective solution for your network at both the home and office. Simply connect SMC EZ Card™ 10/100 Fast Ethernet PCI Card to a Fast Ethernet device and it will auto- matically connect at 100Mbps for highest performance. Combine all of these features and functionality with SMC's award-winning technical support and service; you have the perfect network adapter for any situation.

FEATURES	BENEFITS
32-bit PCI bus-master architecture	Supports 32-bit data transfer, bus-mastering reduces CPU
	utilization and improves throughput
Dual-speed 10/100 Mbps	Support for 10 Mbps and 100 Mbps data rates enable easy,
	cost-effective additional bandwidth
Serial EEPROM and/ or Flash supportSerial EEPROM and/ or	Optional bootrom support for enabling network booting from
Flash support	diskless workstations
Support Wake-on-LAN and remote wake-up support	Allows remote powering up of computer for automated and
	unattended management (Wfm - Wired for Management).
	Includes AMD® Magic Packet, Re-LinkOK, and Microsoft®
	Wake-up frame
