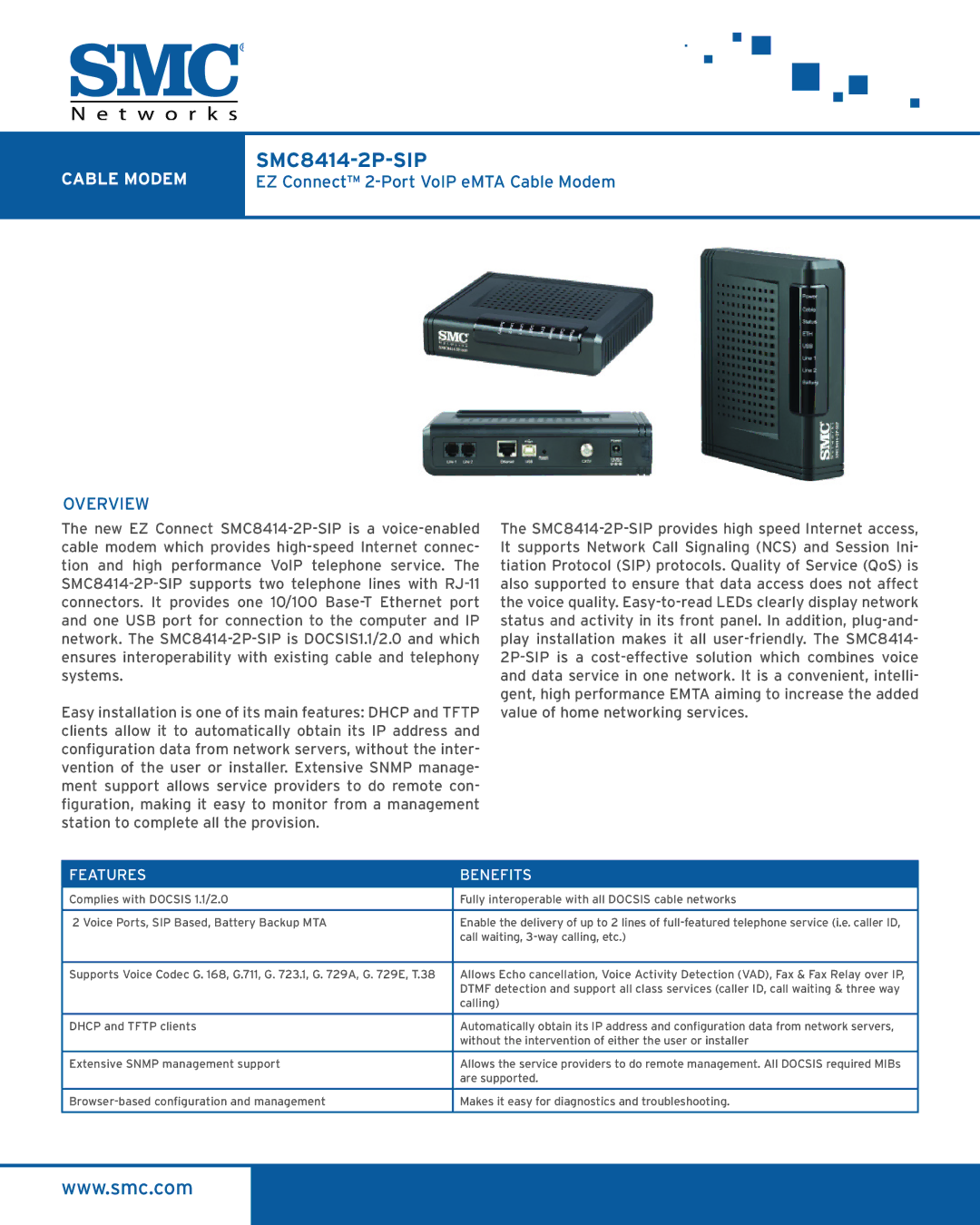

CABLE MODEM	SMC8414-2P-SIP
	EZ Connect™ 2-Port VoIP eMTA Cable Modem

OVERVIEW

The new EZ Connect SMC8414-2P-SIP is a voice-enabled cable modem which provides high-speed Internet connec- tion and high performance VoIP telephone service. The SMC8414-2P-SIP supports two telephone lines with RJ-11 connectors. It provides one 10/100 Base-T Ethernet port and one USB port for connection to the computer and IP network. The SMC8414-2P-SIP is DOCSIS1.1/2.0 and which ensures interoperability with existing cable and telephony systems.

Easy installation is one of its main features: DHCP and TFTP clients allow it to automatically obtain its IP address and configuration data from network servers, without the inter- vention of the user or installer. Extensive SNMP manage- ment support allows service providers to do remote con- figuration, making it easy to monitor from a management station to complete all the provision.

The SMC8414-2P-SIP provides high speed Internet access, It supports Network Call Signaling (NCS) and Session Ini- tiation Protocol (SIP) protocols. Quality of Service (QoS) is also supported to ensure that data access does not affect the voice quality. Easy-to-read LEDs clearly display network status and activity in its front panel. In addition, plug-and- play installation makes it all user-friendly. The SMC8414- 2P-SIP is a cost-effective solution which combines voice and data service in one network. It is a convenient, intelli- gent, high performance EMTA aiming to increase the added value of home networking services.

FEATURES	BENEFITS
Complies with DOCSIS 1.1/2.0	Fully interoperable with all DOCSIS cable networks
2 Voice Ports, SIP Based, Battery Backup MTA	Enable the delivery of up to 2 lines of full-featured telephone service (i.e. caller ID,
	call waiting, 3-way calling, etc.)
Supports Voice Codec G. 168, G.711, G. 723.1, G. 729A, G. 729E, T.38	Allows Echo cancellation, Voice Activity Detection (VAD), Fax & Fax Relay over IP,
	DTMF detection and support all class services (caller ID, call waiting & three way
	calling)
DHCP and TFTP clients	Automatically obtain its IP address and configuration data from network servers,
	without the intervention of either the user or installer
Extensive SNMP management support	Allows the service providers to do remote management. All DOCSIS required MIBs
	are supported.
Browser-based configuration and management	Makes it easy for diagnostics and troubleshooting.
