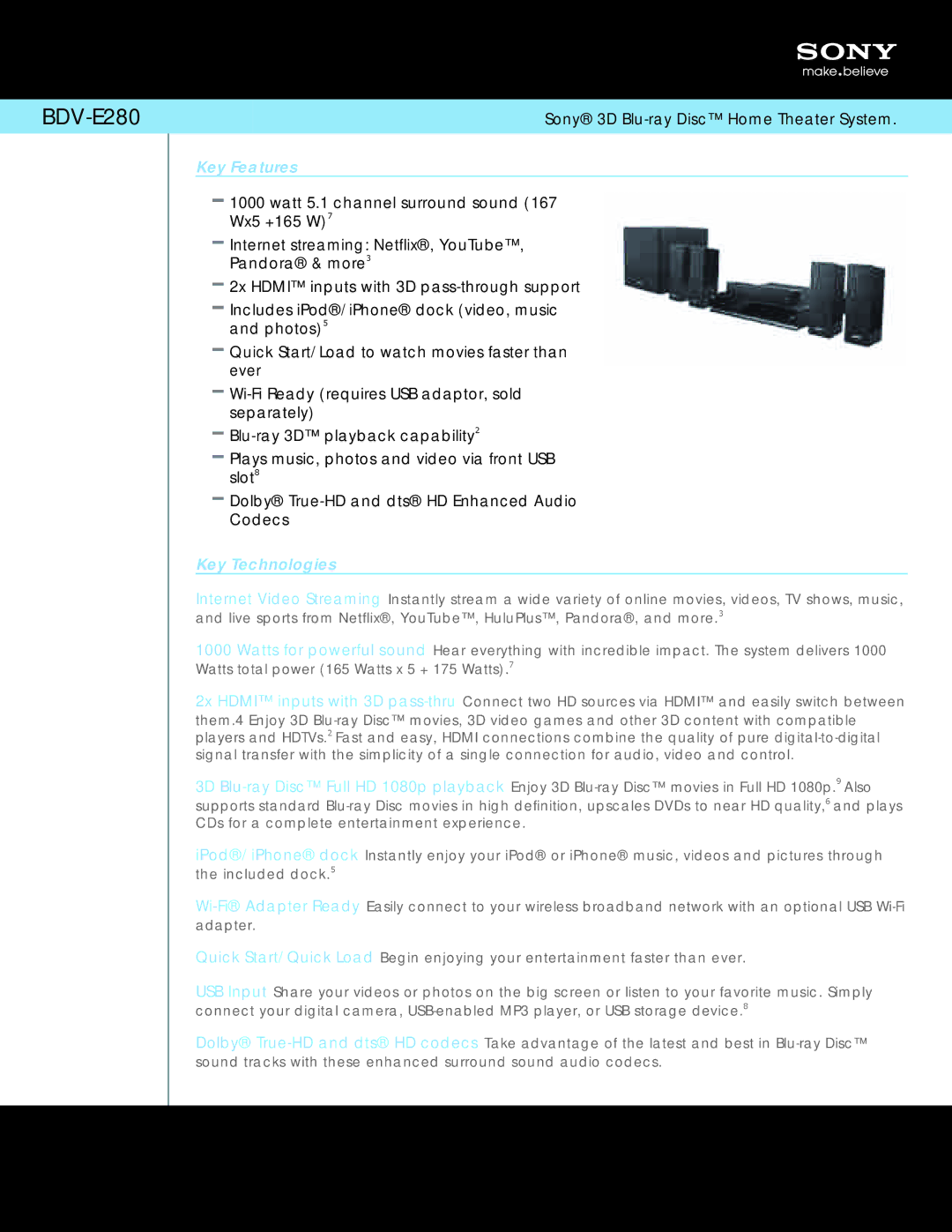

Sony BDV-E280 BDV-E280

Sony Electronics Inc.

• 16530 Via Esprillo

• San Diego, CA 92127

• 1.800.222.7669

• www.sony.com

Last Updated: 03/16/2011

BDV-E280

Sony

®

3D Blu

-

ray Disc

™ Home Theater System.

Please visit the Dealer Source for current

information at www.sony.com/dealersource

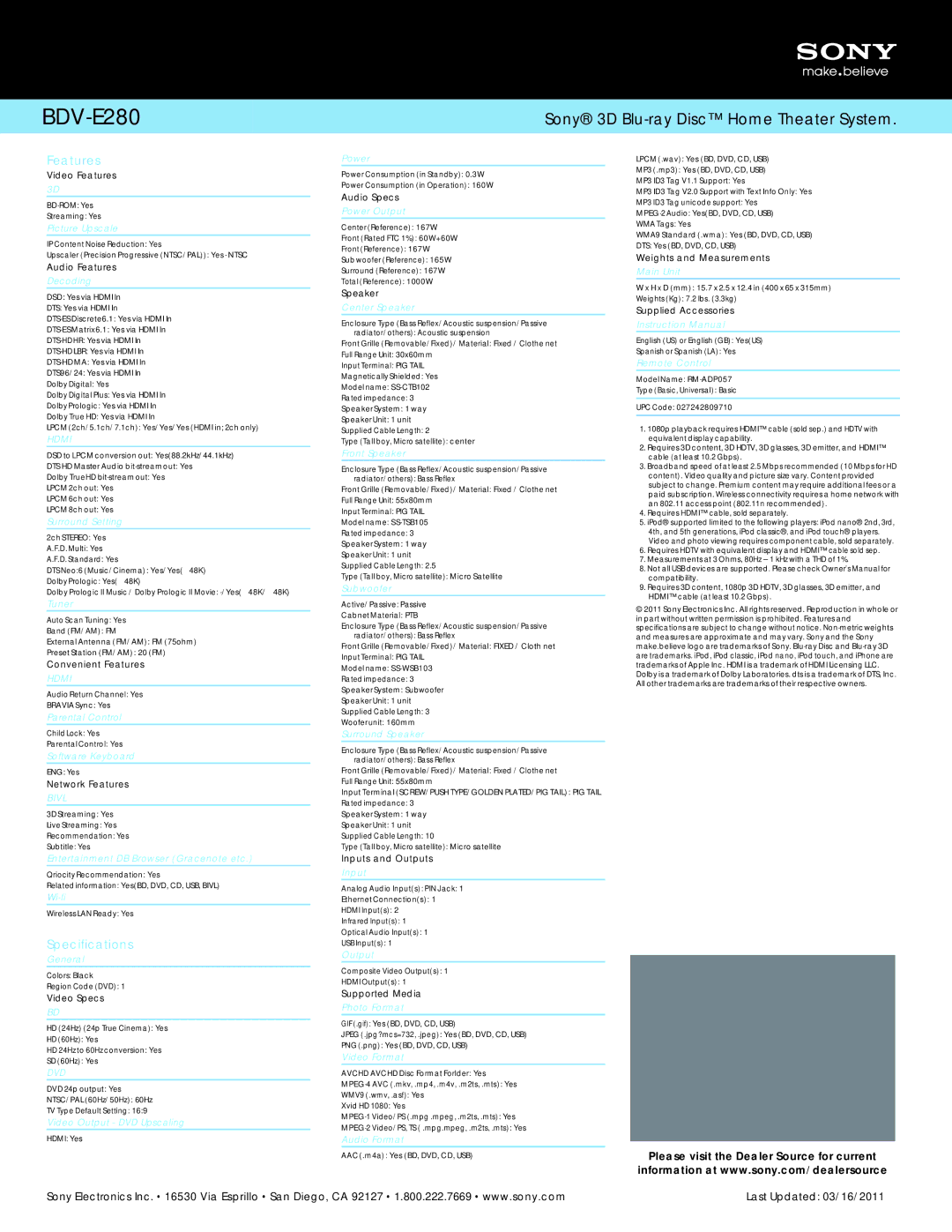

Features

Video Features

3D

ROM:

Yes

Streaming:

Yes

Picture Upscale

IP Content Noise Reduction:

Yes

Upscaler (Precision Progressive (NTSC/PAL)):

Yes

NTSC

Audio Features

Decoding

DSD: Yes via HDMI In

DTS:

Yes via HDMI In

DTS

ES Discrete6.1: Yes via HDMI In

DTS

ES Matrix6.1: Yes via HDMI In

DTS

HD HR:

Yes via HDMI In

DTS

HD LBR:

Yes via HDMI In

DTS

HD MA: Yes via HDMI In

DTS96/24: Yes via HDMI In

Dolby Digital:

Yes

Dolby Digital Plus:

Yes via HDMI In

Dolby Prologic:

Yes via HDMI In

Dolby True HD:

Yes via HDMI In

LPCM (2ch/5.1ch/7.1ch):

Yes/Yes/Yes (HDMI in; 2ch only)

HDMI

DSD to LPCM conversion out: Yes(88.2kHz/44.1kHz)

DTS HD Master Audio bit

stream out:

Yes

Dolby TrueHD bit

stream out:

Yes

LPCM 2ch out:

Yes

LPCM 6ch out:

Yes

LPCM 8ch out:

Yes

Surround Setting

2ch STEREO:

Yes

A.F.D. Multi:

Yes

A.F.D. Standard:

Yes

DTS Neo:6 (Music/Cinema):

Yes/Yes(

∼48K)

Dolby Prologic:

Yes(

∼48K)

Dolby Prologic II Music / Dolby Prologic II Movie:

/Yes(∼48K/∼48K)

Tuner

Auto Scan Tuning:

Yes

Band (FM/AM):

External Antenna (FM/AM): FM (75ohm)

Preset Station (FM/AM): 20 (FM)

Convenient Features

HDMI

Audio Return Channel:

Yes

BRAVIA Sync:

Yes

Parental Control

Child Lock:

Yes

Parental Control:

Yes

Software Keyboard

ENG:

Yes

Network Features

BIVL

3D Streaming:

Yes

Live Streaming:

Yes

Recommendation:

Yes

Subtitle:

Yes

Entertainment DB Browser (Gracenote etc.)

Qriocity Recommendation:

Yes

Related information:

Yes(BD, DVD, CD, USB, BIVL)

Wi-

fi

Wireless LAN Ready:

Yes

Specifications

General

Colors:

Black

Region Code (DVD):

Video Specs

BD

HD (24Hz) (24p True Cinema):

Yes

HD (60Hz):

Yes

HD 24Hz to 60Hz conversion:

Yes

SD (60Hz):

Yes

DVD

DVD 24p output:

Yes

NTSC/PAL (60Hz/50Hz):

60Hz

TV Type Default Setting:

16:9

Video Output -

DVD Upscaling

HDMI:

Yes

Power

Power Consumption (in Standby):

0.3W

Power Consumption (in Operation):

160W

Audio Specs

Power Output

Center (Reference):

167W

Front (Rated FTC 1%):

60W+60W

Front (Reference):

167W

Sub woofer (Reference):

165W

Surround (Reference):

167W

Total (Reference):

1000W

Speaker

Center Speaker

Enclosure Type (Bass Reflex/Acoustic suspension/Passive

radiator/others):

Acoustic suspension

Front Grille (Removable/Fixed)/ Material:

Fixed / Clothe net

Full Range Unit:

30x60mm

Input Terminal:

PIG TAIL

Magnetically Shielded:

Yes

Model name:

CTB102

Rated impedance:

Speaker System: 1 way

Speaker Unit:

1 unit

Supplied Cable Length:

Type (Tall boy, Micro satellite):

center

Front Speaker

Enclosure Type (Bass Reflex/Acoustic suspension/Passive

radiator/others):

Bass Reflex

Front Grille (Removable/Fixed)/ Material:

Fixed / Clothe net

Full Range Unit:

55x80mm

Input Terminal:

PIG TAIL

Model name:

TSB105

Rated impedance:

Speaker System: 1 way

Speaker Unit:

1 unit

Supplied Cable Length:

2.5

Type (Tall boy, Micro satellite):

Micro Satellite

Subwoofer

Active/Passive:

Passive

Cabnet Material:

PTB

Enclosure Type (Bass Reflex/Acoustic suspension/Passive

radiator/others):

Bass Reflex

Front Grille (Removable/Fixed)/ Material:

FIXED / Cloth net

Input Terminal:

PIG TAIL

Model name:

WSB103

Rated impedance:

Speaker System:

Subwoofer

Speaker Unit:

1 unit

Supplied Cable Length:

Woofer unit:

160mm

Surround Speaker

Enclosure Type (Bass Reflex/Acoustic suspension/Passive

radiator/others):

Bass Reflex

Front Grille (Removable/Fixed)/ Material:

Fixed / Clothe net

Full Range Unit:

55x80mm

Input Terminal (SCREW/PUSH TYPE/GOLDEN PLATED/PIG TAIL):

PIG TAIL

Rated impedance:

Speaker System: 1 way

Speaker Unit:

1 unit

Supplied Cable Length:

Type (Tall boy, Micro satellite):

Micro satellite

Inputs and Outputs

Input

Analog Audio Input(s): PIN Jack:

Ethernet Connection(s):

HDMI Input(s):

Infrared Input(s):

Optical Audio Input(s):

USB Input(s):

Output

Composite Video Output(s):

HDMI Output(s):

Supported Media

Photo Format

GIF (.gif):

Yes (BD, DVD, CD, USB)

JPEG (.jpg?mcs=732, .jpeg):

Yes (BD, DVD, CD, USB)

PNG (.png):

Yes (BD, DVD, CD, USB)

Video Format

AVCHD AVCHD Disc Format Forlder:

Yes

MPEG

4 AVC (.mkv, .mp4, .m4v, .m2ts, .mts):

Yes

WMV9 (.wmv, .asf):

Yes

Xvid HD 1080:

Yes

MPEG

1 Video/PS (.mpg .mpeg, .m2ts, .mts):

Yes

MPEG

2 Video/PS, TS ( .mpg.mpeg, .m2ts, .mts):

Yes

Audio Format

AAC (.m4a):

Yes (BD, DVD, CD, USB)

LPCM (.wav):

Yes (BD, DVD, CD, USB)

MP3 (.mp3):

Yes (BD, DVD, CD, USB)

MP3 ID3 Tag V1.1 Support:

Yes

MP3 ID3 Tag V2.0 Support with Text Info Only:

Yes

MP3 ID3 Tag unicode support:

Yes

MPEG

2 Audio:

Yes(BD, DVD, CD, USB)

WMA Tags:

Yes

WMA9 Standard (.wma):

Yes (BD, DVD, CD, USB)

DTS:

Yes (BD, DVD, CD, USB)

Weights and Measurements

Main Unit

W x H x D (mm): 15.7 x 2.5 x 12.4 in (400 x 65 x 315mm)

Weights (Kg):

7.2 lbs. (3.3kg)

Supplied Accessories

Instruction Manual

English (US) or English (GB):

Yes(US)

Spanish or Spanish (LA):

Yes

Remote Control

Model Name:

ADP057

Type (Basic, Universal):

Basic

UPC Code:

027242809710

1. 1080p playback requires HDMI™

cable (sold sep.) and HDTV with

equivalent display capability.

2. Requires 3D content, 3D HDTV, 3D glasses, 3D emitter, and HDMI™

cable (at least 10.2 Gbps).

3. Broadband speed of at least 2.5 Mbps recommended (10 Mbps for HD

content). Video quality and picture size vary. Content provided

subject to change. Premium content may require additional fees or a

paid subscription. Wireless connectivity requires a home network with

an 802.11 access point (802.11n recommended).

4. Requires HDMI

™

cable, sold separately.

5. iPod

supported limited to the following players: iPod nano

2nd, 3rd,

4th, and 5th generations, iPod classic

and iPod touch

players.

Video and photo viewing requires component cable, sold separately.

6. Requires HDTV with equivalent display and HDMI

™

cable sold sep.

7. Measurements at 3 Ohms, 80Hz

–

1 kHz with a THD of 1%.

8. Not all USB devices are supported. Please check Owner

’

s Manual for

compatibility.

9. Requires 3D content, 1080p 3D HDTV, 3D glasses, 3D emitter, and

HDMI™

cable (at least 10.2 Gbps).
