MDR-RF950RK

SERVICE MANUAL

US Model

Ver 1.0 1998. 06

Canadian Model



MDR-RF950

TMR-RF950R

MDR-RF950RK is composed of the following models.

As for the service manual, it is issued for each component model, then, please refer to it.

Headphones

MDR-RF950





Transmitter

TMR-RF950R







SPECIFICATIONS

General



Carrier frequency

913.0 – 915.0 MHz

Channel

Ch1, Ch2, Ch3

Modulation

FM stereo

Frequency response

18 – 22,000 Hz

Headphones

DC3V: 2 × R6 (size AA) battery or 2 × supplied

Power source



NC-AA-HJ Ni-Cd rechargeable battery

Mass

Approx. 265 g (9.4 oz.) incl. Ni-Cd batteries

Transmitter



RF power

Less than 94 dBµV/m at 3 m

Power source

DC9 V: supplied AC power adaptor

Audio input

phono jacks/stereo mini jack

Dimensions

Approx. 120 mm dia × 290 mm



(43/4 × 111/2 in.) (w/h)

Mass

Approx. 155 g (5.5 oz.)

Supplied Ni-Cd rechargeable

batteries



Model name

NC-AA (HJ)

Voltage

1.2 V

Capacity

600 mAh

Battery life



Battery

Approx. hours*

Sony alkaline battery

60

SG (LR6)







Sony battery SR (R6P)

30

* at 1 kHz, 1 mW + 1 mW output

ACCESSORIES & PACKING MATERIALS

Ref. No.

Part No.

Description

!1-465-948-21 ADAPTOR, AC (AC-S901)

!1-506-652-11 ADAPTOR, PLUG

1-528-803-41 BATTERY, NICKEL CADMIUM 1-575-195-11 CORD, CONNECTION

3-864-034-11 MANUAL, INSTRUCTION

(ENGLISH, SPANISH) (US)

3-864-034-21 MANUAL, INSTRUCTION (ENGLISH,FRENCH) (Canadian)

The components identified by

Les composants identifiés par une

mark ! or dotted line with

marque ! sont critiques pour la

mark !are critical for safety.

sécurité.

Replace only with part number

Ne les remplacer que par une pièce

specified.

portant le numéro spécifié.





WIRELESS STEREO

HEADPHONE SYSTEM

Design and specifications are subject to change without notice.



































































































































MICROFILM





98F057022-1















































Sony Corporation

Printed in Singapore © 1998. 6























Published by Quality Engineering Dept.

9-924-926-11

Personal A&V Products Company

(Shibaura)

Page 1

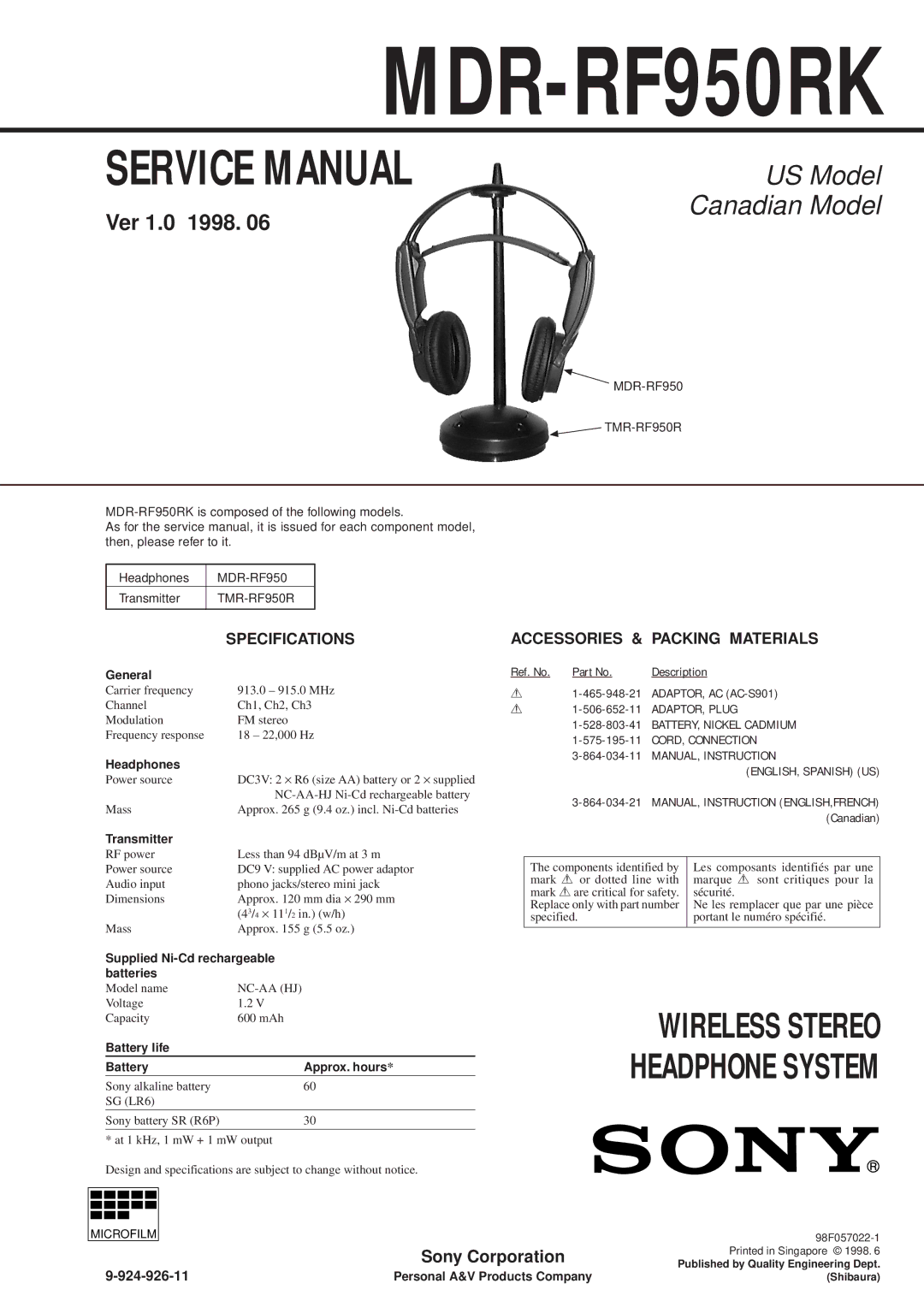

Image 1
Sony MDR-RF950RK service manual Specifications, Accessories & Packing Materials

MDR-RF950RK, MDR-RF950 specifications
