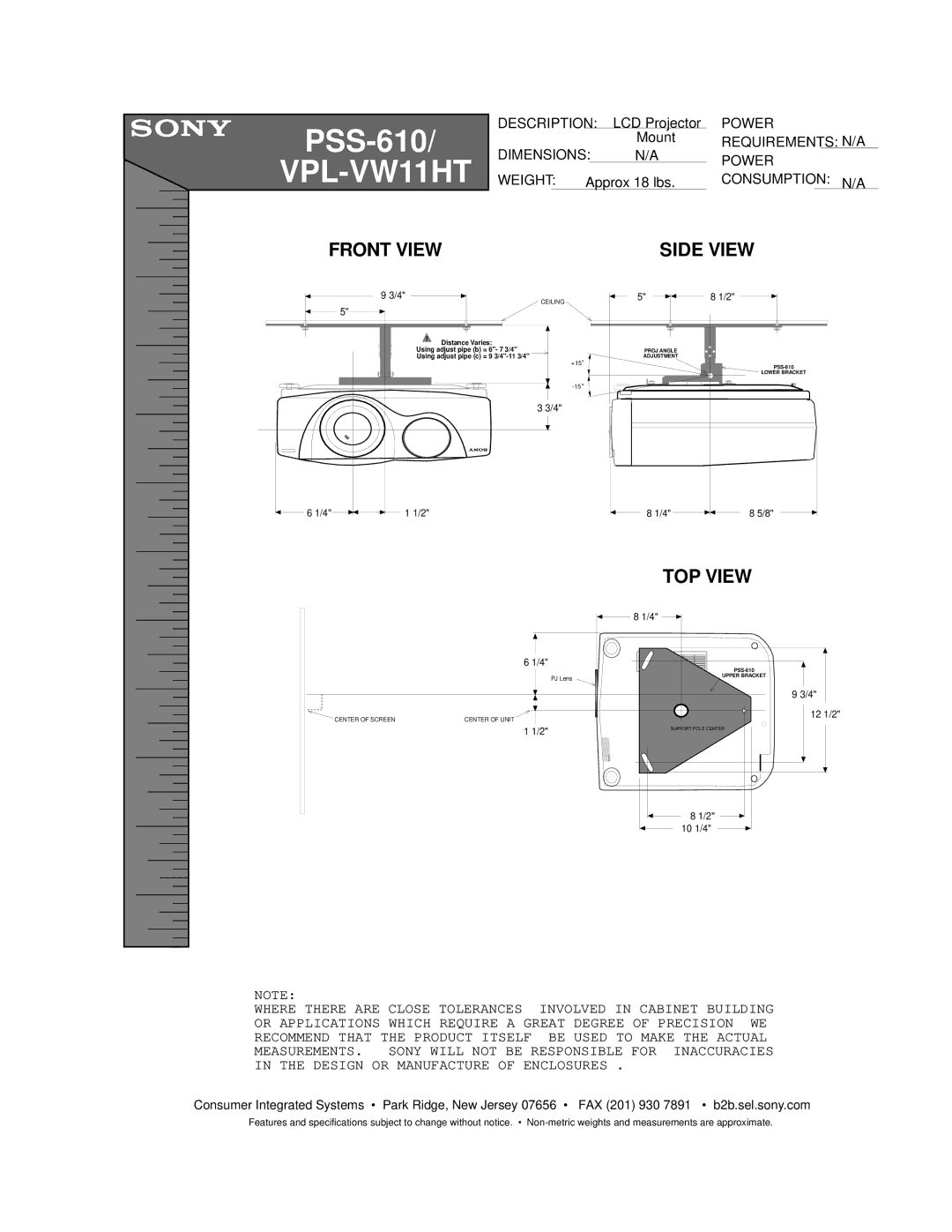

Sony dimensions PSS-610 VPL-VW11HT, Front View, Top View, Side View

PSS-610/

VPL-VW11HT

DESCRIPTION:		LCD Projector	POWER
		Mount
			REQUIREMENTS: N/A
DIMENSIONS:		N/A
			POWER
WEIGHT:	Approx 18 lbs.		CONSUMPTION: N/A

FRONT VIEW SIDE VIEW

	9 3/4"	CEILING
	5"
	!	Distance Varies:
	Using adjust pipe (b) = 6"- 7 3/4"
	Using adjust pipe (c) = 9 3/4"-11 3/4"
		+15
		-15
		3 3/4"
6 1/4"	1 1/2"

5"	8 1/2"
PROJ ANGLE
ADJUSTMENT
	PSS-610
	LOWER BRACKET
8 1/4"	8 5/8"

			TOP VIEW
			8 1/4"
	6 1/4"		PSS-610
		PJ Lens	UPPER BRACKET
			9 3/4"
CENTER OF SCREEN	CENTER OF UNIT		12 1/2"
	1 1/2"		SUPPORT POLE CENTER
			8 1/2"
			10 1/4"

NOTE:

WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .

Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • b2b.sel.sony.com

Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
