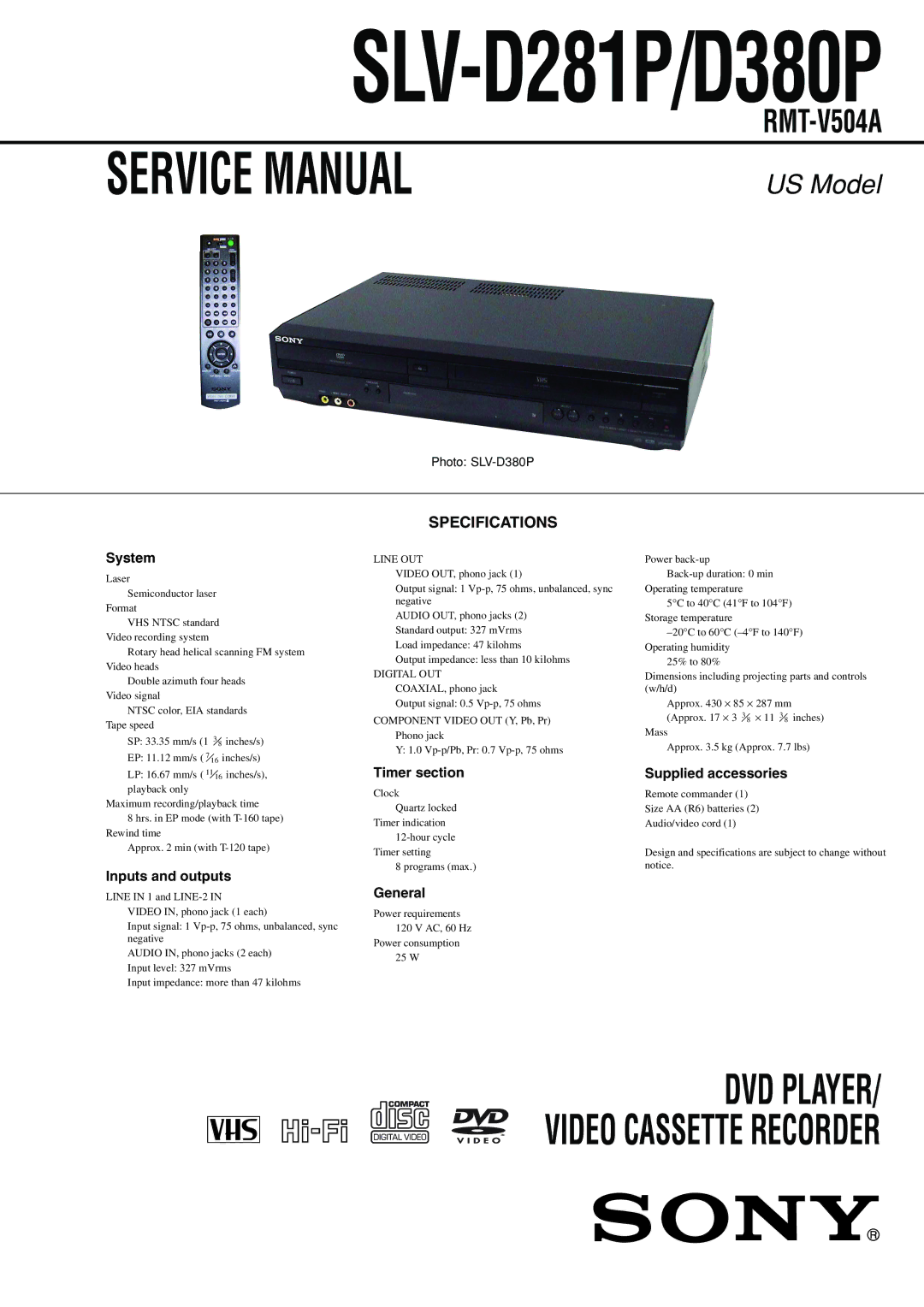

Sony SLV-D281P, SLV-D380P service manual System, Inputs and outputs, Timer section, General

SLV-D281P/D380P

RMT-V504A

SERVICE MANUAL

US Model

System

Laser Semiconductor laser

Format

VHS NTSC standard Video recording system

Rotary head helical scanning FM system Video heads

Double azimuth four heads Video signal

NTSC color, EIA standards Tape speed

SP: 33.35 mm/s (1 3 8 inches/s)

EP: 11.12 mm/s ( 7 16 inches/s)

LP: 16.67 mm/s ( 11 16 inches/s), playback only

Maximum recording/playback time

8 hrs. in EP mode (with T-160 tape) Rewind time

Approx. 2 min (with T-120 tape)

Inputs and outputs

LINE IN 1 and LINE-2 IN VIDEO IN, phono jack (1 each)

Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative

AUDIO IN, phono jacks (2 each) Input level: 327 mVrms

Input impedance: more than 47 kilohms

Photo: SLV-D380P

SPECIFICATIONS

LINE OUT

VIDEO OUT, phono jack (1)

Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative

AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms

Output impedance: less than 10 kilohms

DIGITAL OUT COAXIAL, phono jack

Output signal: 0.5 Vp-p, 75 ohms

COMPONENT VIDEO OUT (Y, Pb, Pr) Phono jack

Y: 1.0 Vp-p/Pb, Pr: 0.7 Vp-p, 75 ohms

Timer section

Clock

Quartz locked Timer indication

12-hour cycle Timer setting

8 programs (max.)

General

Power requirements 120 V AC, 60 Hz

Power consumption 25 W

Power back-up

Back-up duration: 0 min Operating temperature

5°C to 40°C (41°F to 104°F) Storage temperature

–20°C to 60°C (–4°F to 140°F) Operating humidity

25% to 80%

Dimensions including projecting parts and controls (w/h/d)

Approx. 430 × 85 × 287 mm (Approx. 17 × 3 3 8 × 11 3 8 inches)

Mass

Approx. 3.5 kg (Approx. 7.7 lbs)

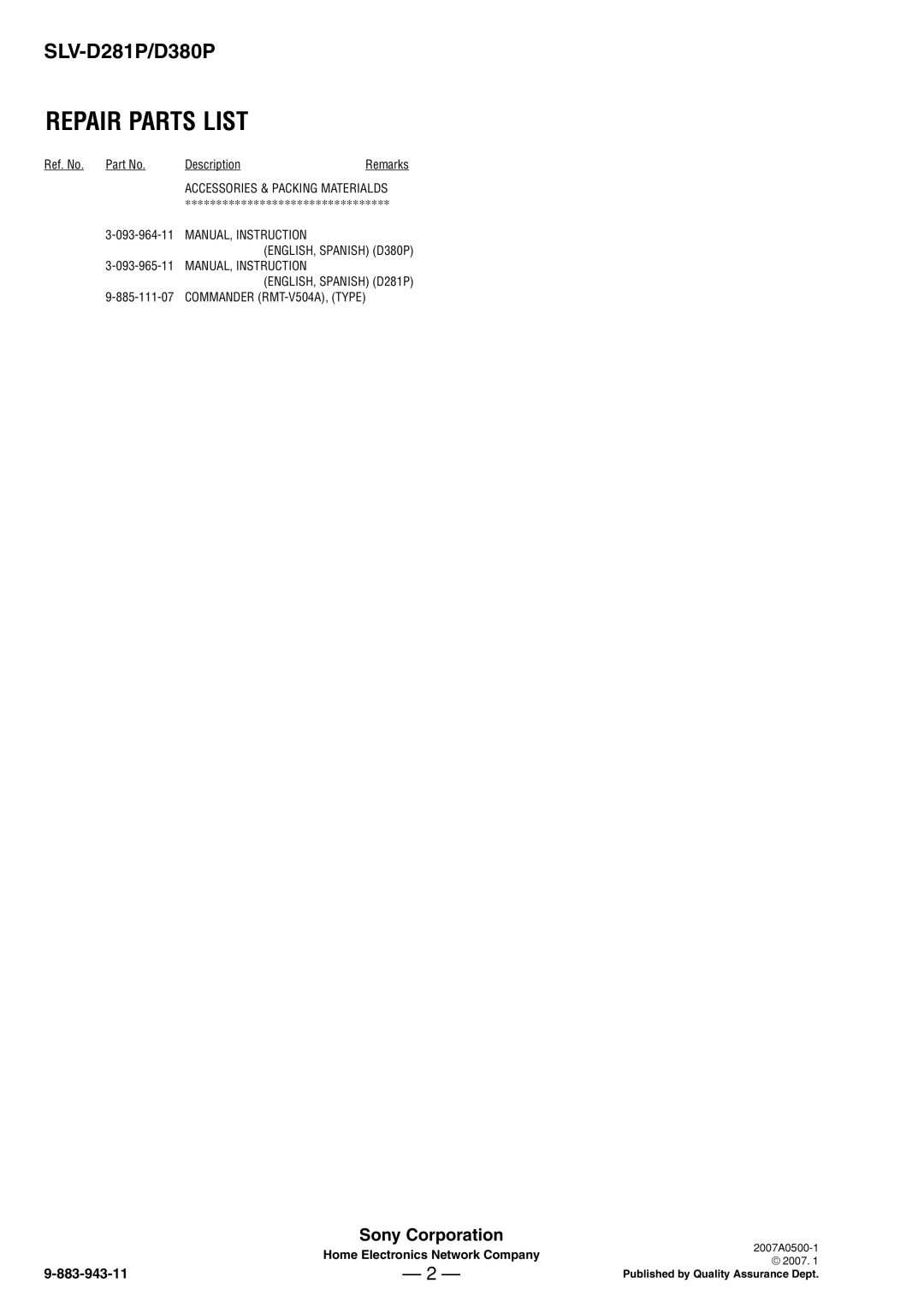

Supplied accessories

Remote commander (1)

Size AA (R6) batteries (2)

Audio/video cord (1)

Design and specifications are subject to change without notice.

DVD PLAYER/ VIDEO CASSETTE RECORDER
