Sony TCM-16 manual features, specifications, HINGED BATTERY LID helps prevent accidental loss

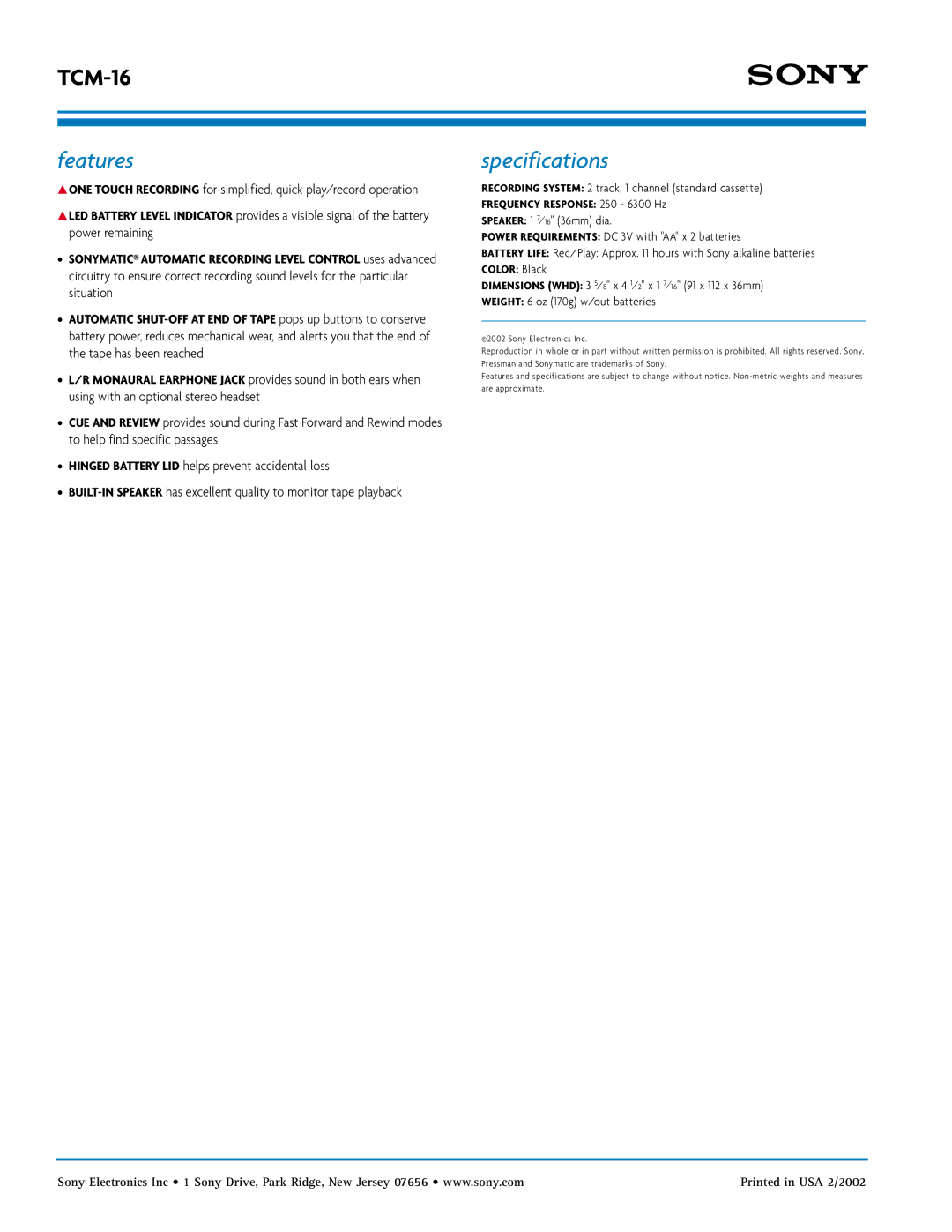

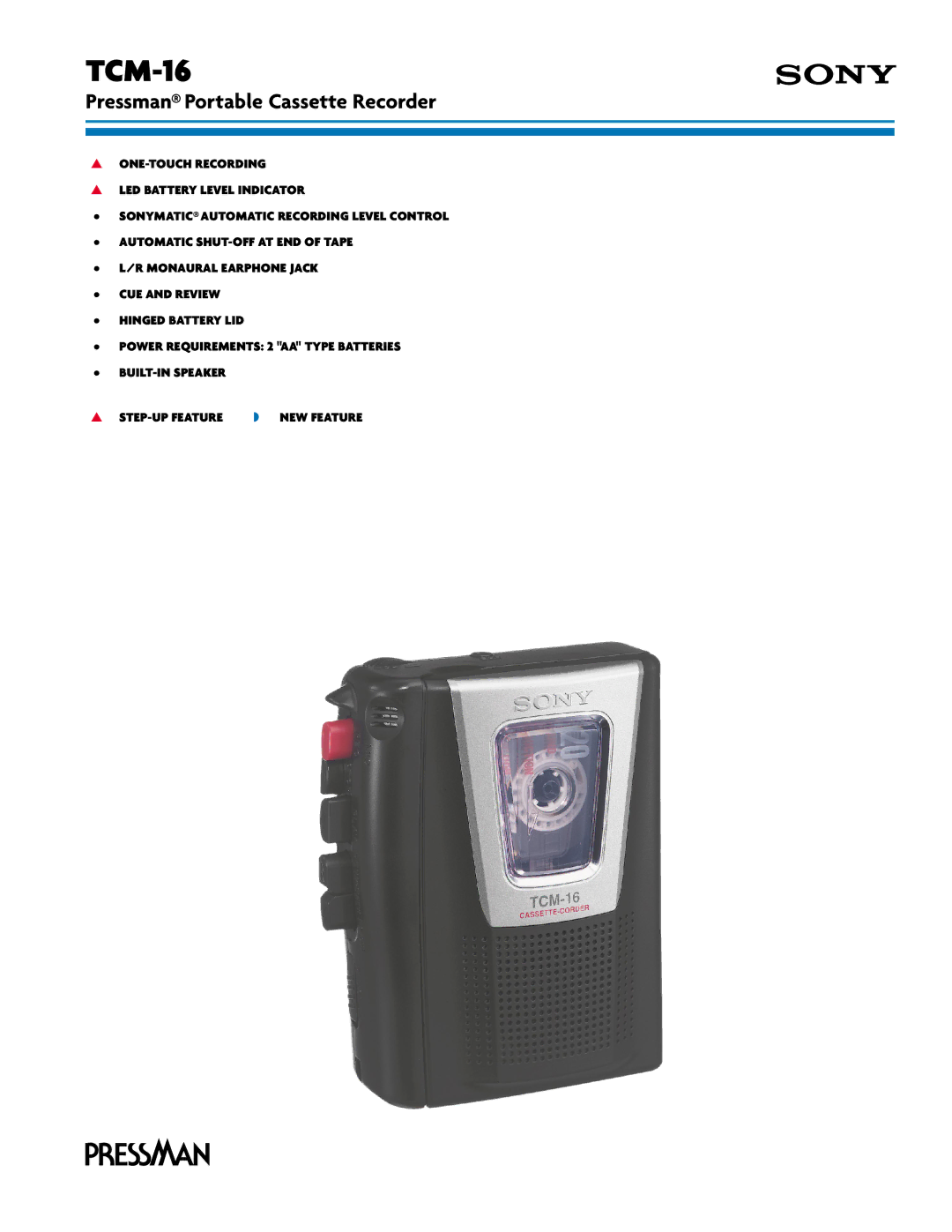

TCM-16

features

▲ONE TOUCH RECORDING for simplified, quick play/record operation

▲LED BATTERY LEVEL INDICATOR provides a visible signal of the battery power remaining

•SONYMATIC® AUTOMATIC RECORDING LEVEL CONTROL uses advanced circuitry to ensure correct recording sound levels for the particular situation

specifications

RECORDING SYSTEM: 2 track, 1 channel (standard cassette)

FREQUENCY RESPONSE: 250 - 6300 Hz

SPEAKER: 1 7⁄16" (36mm) dia.

POWER REQUIREMENTS: DC 3V with "AA" x 2 batteries

BATTERY LIFE: Rec/Play: Approx. 11 hours with Sony alkaline batteries

COLOR: Black

DIMENSIONS (WHD): 3 5⁄8" x 4 1⁄2" x 1 7⁄16" (91 x 112 x 36mm)

WEIGHT: 6 oz (170g) w/out batteries

•AUTOMATIC SHUT-OFF AT END OF TAPE pops up buttons to conserve battery power, reduces mechanical wear, and alerts you that the end of the tape has been reached

•L/R MONAURAL EARPHONE JACK provides sound in both ears when using with an optional stereo headset

•CUE AND REVIEW provides sound during Fast Forward and Rewind modes to help find specific passages

•HINGED BATTERY LID helps prevent accidental loss

•BUILT-IN SPEAKER has excellent quality to monitor tape playback

©2002 Sony Electronics Inc.

Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Pressman and Sonymatic are trademarks of Sony.

Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.

Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002
