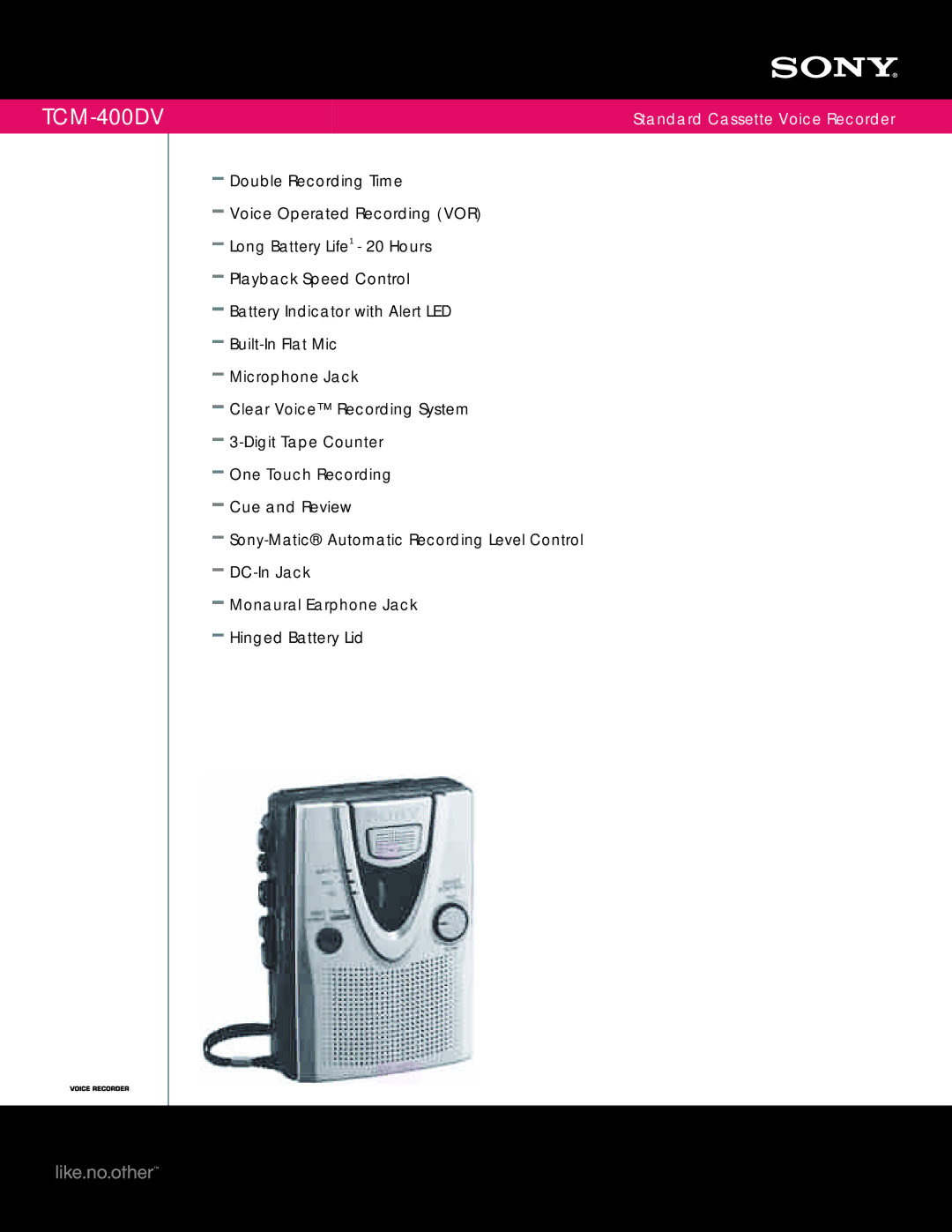

TCM-400DV

Standard Cassette Voice Recorder













Features

Double Recording Time gives you the option of recording on a standard cassette at either normal speed or half the normal speed, for extended recording or dictation sessions

Voice Operated Recording activates the recorder only when audible sound is present, conserving tape and eliminating soundless passages

Long Battery Life1 - 20 Hours is made possible by advanced technology which extends battery power beyond previous limits

Playback Speed Control lets you adjust playing speed as much as +30% or -15% for easier review of recorded information

Battery Indicator with Alert LED confirms battery operation and alerts you of low battery power with flashing LED

Built-In Flat Mic provides convenient recording versatility in various situations

Microphone Jack allows connection of an external microphone

Clear Voice™ Recording System enhances voice quality during recording and playback, for greater clarity

3-Digit Tape Counter makes it easy to find a specific location on the tape, for rapid access and editing

One Touch Recording for simplified, quick play/record operation

Cue and Review provides sound during fast Forward and Rewind modes to help find specific passages

Sony-Matic® Automatic Recording Level Control uses advanced circuitry to ensure correct recording level

3V DC-In Jack for 2-way operation using replaceable batteries or with optional AC adaptor

Monaural Earphone Jack provide sound in both ears when using with an optional stereo headset

Hinged Battery Lid helps prevent accidental loss when changing batteries

Specifications

General

Type of Use: Portable Voice Recorder

Recording Media: Standard Audio Cassette

Recording and Playback Times: up to 180 minutes (mono)

Audio Features

Recording Features: Voice Operated Recording (VOR), Clear Voice™ Sound System, One-Touch Record, Sony-Matic® Automatic Recording Level

Convenience

Automatic Shut-off: Yes

Convenience Features

Search Features: Cue and Review

Hardware

Display: 3-Digit Tape Counter

Power

Output Power: 250mW

Power Requirements: 120V AC Adaptor (Optional)

Battery Life (Approx.): Rec/Play: 20 hours w/Sony Alkaline Batteries (optional)

Battery Type: "AA" x 2

Speaker

Type: Built-in

Speaker Dimensions: 1 7/16" (36mm) diameter

Inputs and Outputs

Microphone Input: 1

DC-In: 3V

Headphone Output(s): 1 (Mini)

Dimensions

Weight: 5 2/3 oz (160 g)

Measurements: W 3 1/2" x H 4 5/8" x D 1 7/16" (88.7 x 114.4 x 35.4mm) including projecting parts and controls

Optional Accessories

AC-E30HG AC Adaptor

Color: Silver

UPC Code: 000000000000

©2006 Sony Electronics Inc.

Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.

Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Clear Voice, Sony-Matic, and like.no.other are trademarks of Sony.

Audio

Recording System: 2-Track, 1-Channel, Standard Cassette

Microphone: Built-in

Please visit the Dealer Network for current information at



www.sony.com/dn

Frequency Range: 250-6300Hz







Sony Electronics Inc. •16530 Via Esprillo •San Di go, CA 92127 •1-800-222-7669 •www.sony.com

Last Updated: 10/08/2007

Tape Speed: 2 Speeds (4.8cm/s, 2.4cm/sec)





Page 2
Image 2
Sony TCM-400DV manual Features, Specifications

TCM-400DV specifications

The Sony TCM-400DV is a compact and portable cassette tape recorder that reflects the artistry and innovation typical of Sony's dedication to audio technology. Designed primarily for voice recording, this device offers a range of features that cater to users looking for simplicity coupled with functionality.

One of the notable features of the TCM-400DV is its lightweight construction, making it easy to carry around for recording on the go. The design prioritizes user-friendliness, featuring a straightforward control layout that allows users to operate the device effortlessly. With large buttons and an intuitive arrangement, both novice and experienced users can quickly navigate its functions.

The TCM-400DV is equipped with a built-in microphone that delivers clear audio quality, making it ideal for interviews, lectures, and personal notes. For those who require a higher-quality recording, the device also accommodates external microphones which provides added versatility. The ability to connect an external mic allows users to achieve better sound quality depending on their recording environment, making it suitable for various applications.

In terms of technology, the TCM-400DV utilizes a high fidelity system, ensuring that recordings capture the nuances of sound effectively. The automatic level control feature is especially beneficial, as it adjusts the recording level in real-time to prevent distortion and maintain audio clarity, even during fluctuations in volume.

The playback functionality of the TCM-400DV is equally impressive. It includes a built-in speaker that produces clear sound, enabling users to listen to their recordings without needing additional equipment. Additionally, the device provides options for fast-forwarding and rewinding, allowing for quick navigation through tapes.

A standout characteristic of the TCM-400DV is its battery efficiency. It operates on standard AA batteries, giving users the freedom to record for extended periods without needing to recharge or replace batteries frequently. This is particularly advantageous for field recordings or events where access to power might be limited.

Overall, the Sony TCM-400DV is a versatile cassette recorder that combines ease of use with high-quality audio features. It remains a valuable tool for anyone looking to capture sound in a straightforward and reliable manner, reflecting the enduring appeal of cassette technology in an ever-evolving digital landscape. Whether for professional applications or personal use, the TCM-400DV continues to hold its ground as a dependable audio recording solution.
