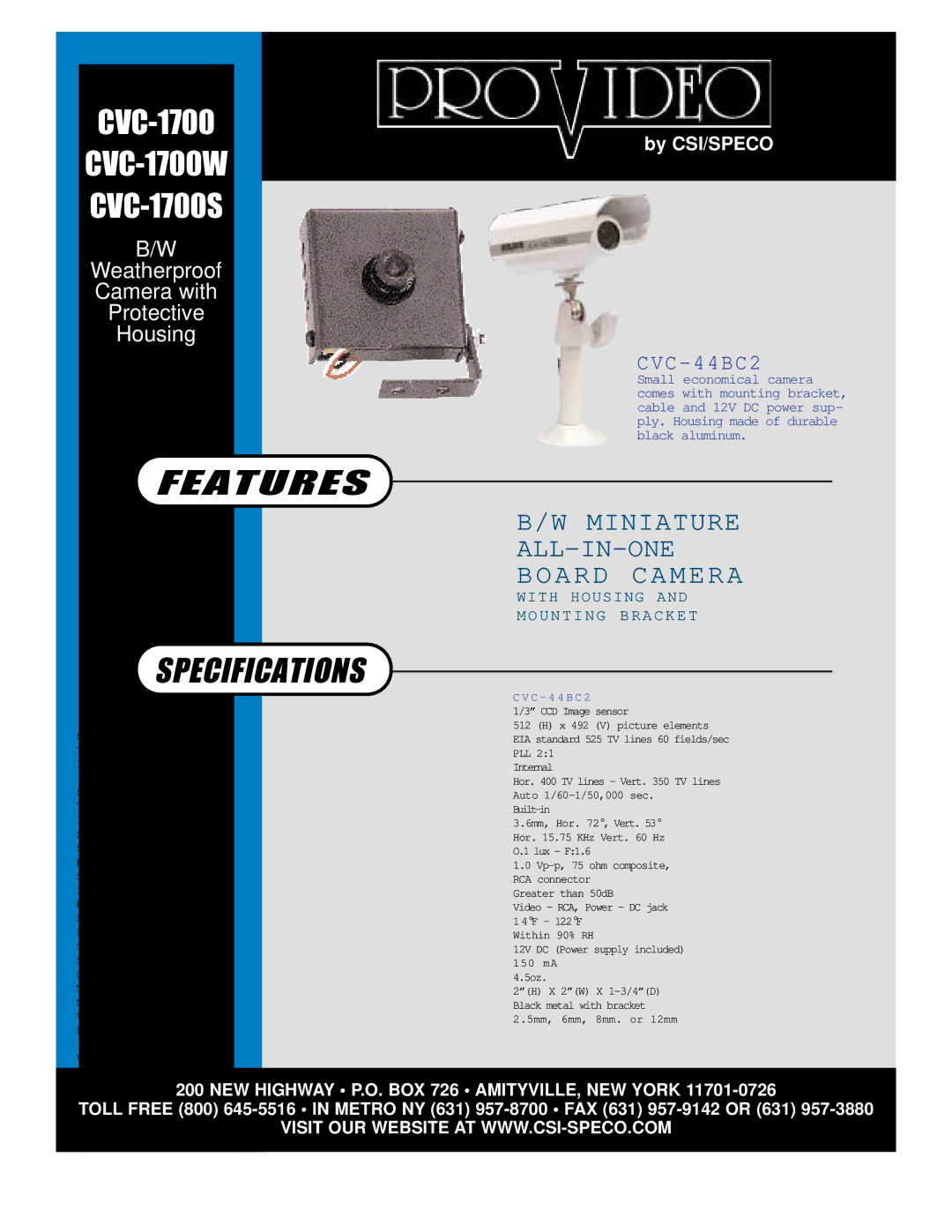

CVC-1700W CVC-1700S | Speco Technologies instruction

CVC-1700

by CSI/SPECO

B/W

Small economical camera comes with mounting bracket, cable and 12V DC power sup- ply. Housing made of durable black aluminum.

B/W MINIATURE

ALL-IN-ONE

BOARD CAMERA

WITH HOUSING AND

MOUNTING BRACKET

SPECIFICATIONS	C V C - 4 4 B C 2
	C V C - 4 4 B C 2
	1/3” CCD Image sensor
SPECIFICA-	512 (H) x 492 (V) picture elements
SPECIFICA-	EIA standard 525 TV lines 60 fields/sec
T I O N S	PLL 2:1
IMAGE DEVICE	Internal
SCANNING SYS-	Hor. 400 TV lines - Vert. 350 TV lines
SCANNING SYS-	Auto 1/60-1/50,000 sec.
TEM	Built-in
INTERLACE	3.6mm, Hor. 72°, Vert. 53°
SYNCHRONIZING	Hor. 15.75 KHz Vert. 60 Hz
SYSTEM	O.1 lux - F:1.6
RESOLUTION	1.0 Vp-p, 75 ohm composite,
SHUTTER CON-	RCA connector
TROL	Greater than 50dB
ELECTRONIC	Video - RCA, Power - DC jack
SHUTTER	14°F - 122°F
LENS/ANGLE	Within 90% RH
OF VIEW	12V DC (Power supply included)
SCANNING FRE-	150 mA
QUENCY	4.5oz.
MINIMUM ILLU-	2”(H) X 2”(W) X 1-3/4”(D)
MINATION	Black metal with bracket
VIDEO OUTPUT	2.5mm, 6mm, 8mm. or 12mm
LEVEL
VIDEO S/N
RATIO
