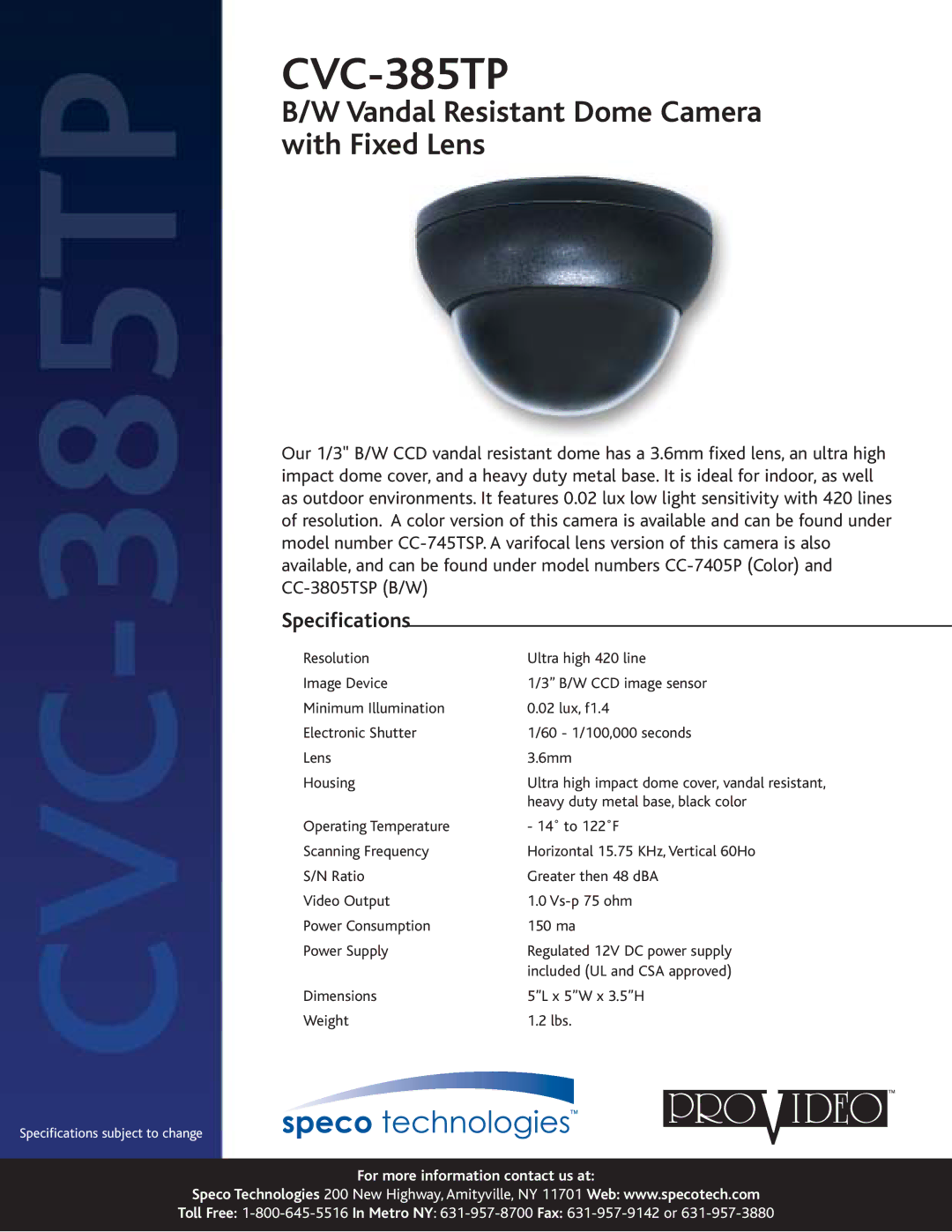

Speco Technologies CVC-385TP specifications Vandal Resistant Dome Camera with Fixed Lens

CVC-385TP

B/W Vandal Resistant Dome Camera with Fixed Lens

Our 1/3" B/W CCD vandal resistant dome has a 3.6mm fixed lens, an ultra high impact dome cover, and a heavy duty metal base. It is ideal for indoor, as well as outdoor environments. It features 0.02 lux low light sensitivity with 420 lines of resolution. A color version of this camera is available and can be found under model number CC-745TSP. A varifocal lens version of this camera is also available, and can be found under model numbers CC-7405P (Color) and CC-3805TSP (B/W)

Specifications

Resolution	Ultra high 420 line
Image Device	1/3” B/W CCD image sensor
Minimum Illumination	0.02 lux, f1.4
Electronic Shutter	1/60 - 1/100,000 seconds
Lens	3.6mm
Housing	Ultra high impact dome cover, vandal resistant,
	heavy duty metal base, black color
Operating Temperature	- 14˚ to 122˚F
Scanning Frequency	Horizontal 15.75 KHz,Vertical 60Ho
S/N Ratio	Greater then 48 dBA
Video Output	1.0 Vs-p 75 ohm
Power Consumption	150 ma
Power Supply	Regulated 12V DC power supply
	included (UL and CSA approved)
Dimensions	5”L x 5”W x 3.5”H
Weight	1.2 lbs.

Specifications subject to change
