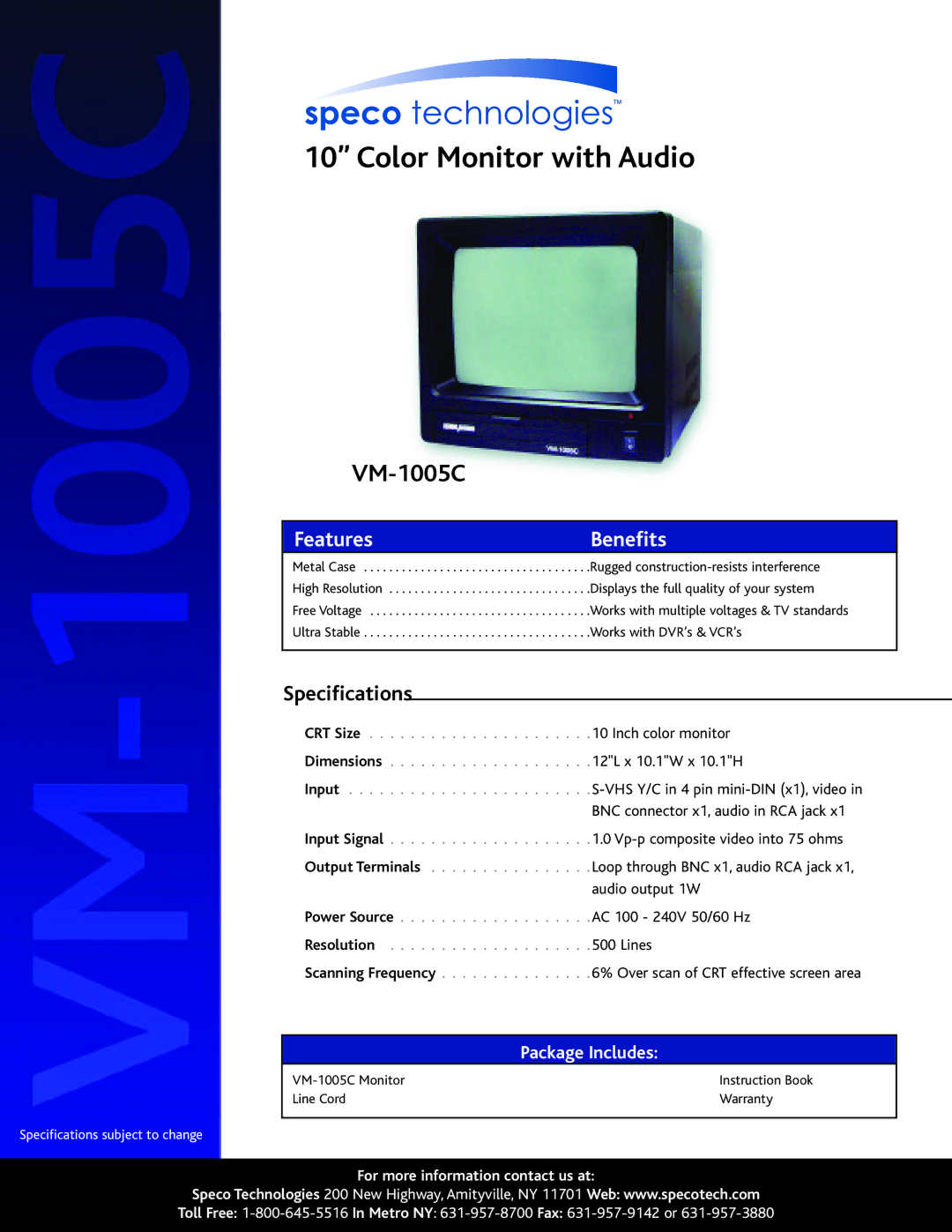

10” Color Monitor with Audio

VM-1005C

Features

Benefits



Metal Case

. . . . . . . . . . .Rugged construction-resists interference



High Resolution

. . . . . . . . . . .Displays the full quality of your system



Free Voltage

. . . . . . . . . . .Works with multiple voltages & TV standards



Ultra Stable

. . . . . . . . . . .Works with DVR’s & VCR’s











Specifications









. . . . . . . 10 Inch color monitor

CRT Size

Dimensions

. . . . . . . 12"L x 10.1"W x 10.1"H

Input

. . . . . . . S-VHS Y/C in 4 pin mini-DIN (x1), video in





BNC connector x1, audio in RCA jack x1

Input Signal

. . . . . . . 1.0 Vp-p composite video into 75 ohms

Output Terminals

. . . . . . . Loop through BNC x1, audio RCA jack x1,





audio output 1W

Power Source

. . . . . . . AC 100 - 240V 50/60 Hz

Resolution

. . . . . . . 500 Lines

Scanning Frequency

. . . . . . . 6% Over scan of CRT effective screen area













Package Includes:



VM-1005C Monitor

Instruction Book



Line Cord

Warranty











Specifications subject to change

For more information contact us at:

Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com

Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

Page 1
Image 1
Speco Technologies VM-1005C specifications Color Monitor with Audio, Features Benefits, Package Includes, Specifications

VM-1005C specifications

Speco Technologies has long been a trusted name in the security and surveillance industry, delivering high-quality products that meet professional needs. One of their standout offerings is the Speco Technologies VM-1005C, a versatile and reliable video monitor designed to cater to various security applications. This monitor seamlessly combines advanced technology with user-friendly features, making it an ideal choice for both professional installations and home security systems.

The Speco VM-1005C features a generous 10.1-inch LCD display that offers exceptional clarity and brightness, ensuring that users can easily monitor live video feeds. With a vivid resolution of 1024 x 600 pixels, the monitor delivers sharp images that enhance situational awareness. The display is designed to provide accurate color reproduction, making it easier for users to recognize details in their surveillance footage.

One of the key highlights of the VM-1005C is its support for multiple video formats. It is compatible with various video signals, including CVBS, VGA, and HDMI, allowing it to integrate effectively with a wide array of cameras and video sources. This flexibility ensures that users can connect different systems without the need for additional converters or adapters, streamlining the installation process.

In addition to its robust connectivity options, the Speco VM-1005C offers advanced features, such as built-in speakers and a headphone output. This allows for real-time audio monitoring, providing users with a comprehensive understanding of their surveillance environment. The monitor also includes an adjustable stand, enabling users to set the optimal viewing angle for their specific needs.

The VM-1005C is equipped with a durable housing, designed to withstand the rigors of everyday use in various environments. Its compact design makes it suitable for both wall-mounted and tabletop installations, providing versatility in setup. Moreover, the monitor's power-saving capabilities contribute to its efficiency, making it an economical choice for long-term use.

Overall, the Speco Technologies VM-1005C is a feature-rich video monitor that combines quality, versatility, and durability. Its advanced technology and user-centric design make it a reliable choice for anyone looking to enhance their surveillance capabilities. Whether for commercial or residential use, the VM-1005C stands out as an indispensable tool in the realm of security monitoring.
