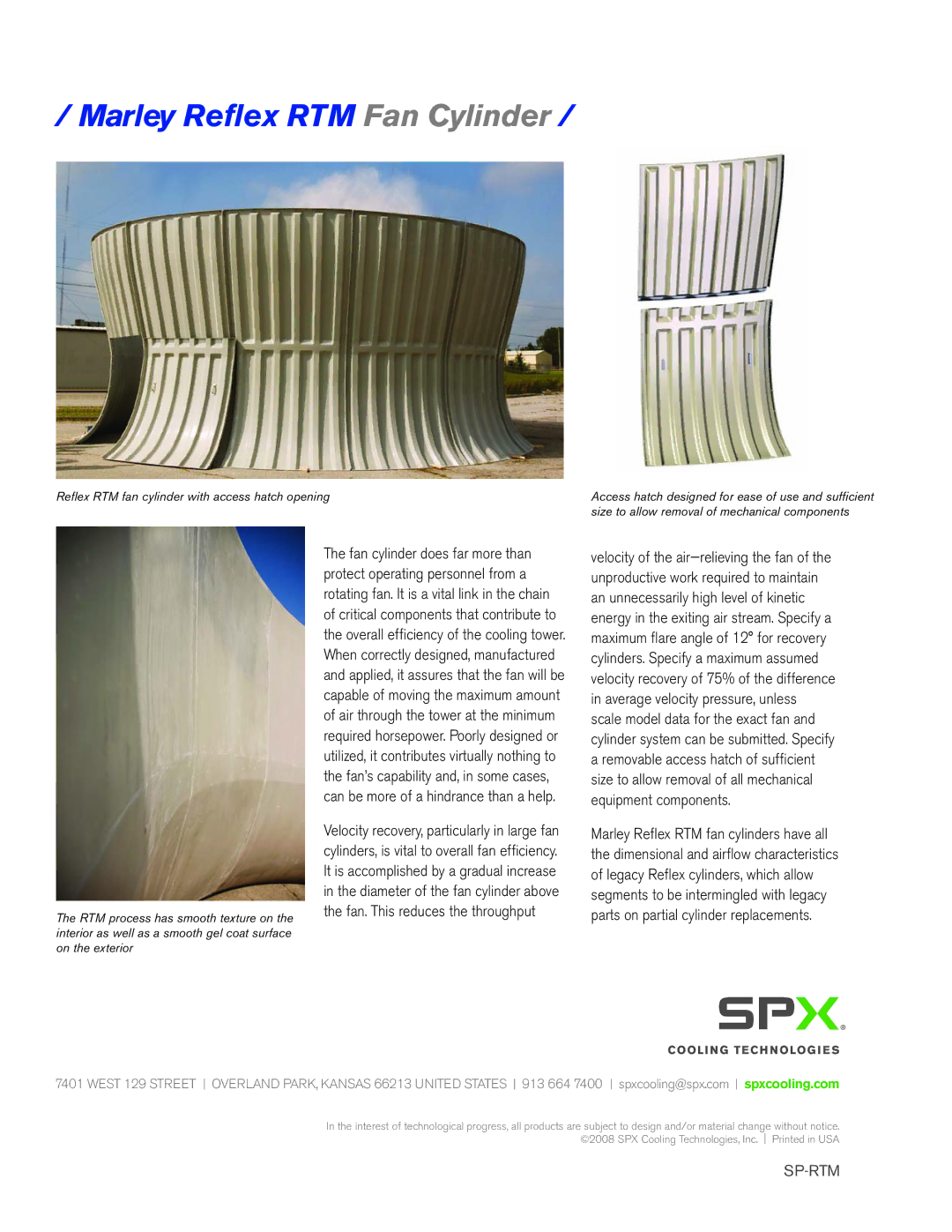

/ Marley Reflex™ RTM Fan Cylinder /

Having designed and manufactured cooling tower fan cylinders since the 1930s, Marley began producing FRP (fiberglass) fan cylinders in 1958, which quickly became the accepted standard within two years’ time. With considerable modeling and full scale testing, this experience led to the development of several new fan cylinder designs for a variety of tower types and fan sizes. One such development resulted in the Reflex velocity recovery cylinder in the 1980s, and is the standard design still in use today for 10’ diameter and larger fans.

21st century manufacturing technology has enabled further advancement and the introduction of the new Marley Reflex RTM industrial fan cylinder, offering a more dimensionally accurate, high quality surface finish, better fit and robust structural integrity. A light RTM (resin transfer molding) closed-molding process lends itself to increased durability for the final product, and ensures laminate thickness and weight consistency. Because the cavities are infused using rigid forms in the ribs, there is no porosity or potential sites for delamination or structural fracture to begin. Therefore, the cylinder load capacity is greatly enhanced.

The “green” benefit of the closed-molding process is the virtual elimination of VOC emissions because the resin is injected and cured in a sealed, closed mold. And because the lay-up process is now dry, a more precise laminate can be achieved, with no hand-working of resin-soaked materials, no cleaning requirements for application equipment, no hand tools using hazardous chemicals and no chemical disposal concerns.

Page 1 Page 2
Page 1
Image 1
SPX Cooling Technologies manual Marley Reflex RTM Fan Cylinder
Page 1 Page 2

Marley Reflex RTM specifications

SPX Cooling Technologies has garnered a reputation for its innovative solutions in the cooling industry, and the Marley Reflex RTM stands as a testament to that commitment. Designed specifically for high-performance applications, the Marley Reflex RTM provides efficient cooling solutions for various industries, including power generation, industrial processing, and HVAC systems.

One of the standout features of the Marley Reflex RTM is its advanced thermal performance. The design incorporates an optimized airflow pattern, ensuring that the cooling medium passes efficiently over the heat transfer surfaces. This innovation translates into improved heat rejection rates, which is crucial for maintaining operational efficiency and reducing energy consumption. The unit is equipped with advanced fan technology that enhances performance while minimizing noise levels, ensuring a quieter operation in any environment.

The Marley Reflex RTM also utilizes a modular design, allowing for flexible configurations. This adaptability makes it suitable for a wide range of applications, as it can be assembled to meet specific site needs and space limitations. The modularity not only facilitates easier installation and maintenance but also allows for scalability in case of future expansion.

Durability is another hallmark of the Marley Reflex RTM. Constructed with high-quality materials, the unit is designed to withstand harsh environmental conditions, making it ideal for both indoor and outdoor installations. The corrosion-resistant coatings and robust structural elements increase the lifespan of the equipment, reducing long-term maintenance costs.

In terms of sustainability, the Marley Reflex RTM is designed with energy efficiency in mind. By optimizing water usage and incorporating energy-efficient components, the unit significantly reduces the carbon footprint associated with cooling applications. This aligns with the growing demand for eco-friendly solutions in the industrial sector.

Additionally, SPX Cooling Technologies emphasizes user-friendly features in the Marley Reflex RTM. The unit includes advanced monitoring capabilities, allowing operators to track performance metrics and troubleshoot potential issues quickly. This level of sophistication streamlines maintenance and enhances the reliability of the cooling system.

Overall, the Marley Reflex RTM from SPX Cooling Technologies is a cutting-edge solution that combines advanced performance, modular flexibility, and durability while prioritizing energy efficiency. Its innovative features and technologies make it a reliable choice for businesses looking to optimize their cooling processes.
