E-TBT (Model 9-6080) LED Display

In this section, we will review all the components that make up the E Series E-TBT (Total Body Trainer). To resolve issues that may occur on an E-TBT, it is important to understand all the components and what function they play in the system.

1. Display Assembly (LED)

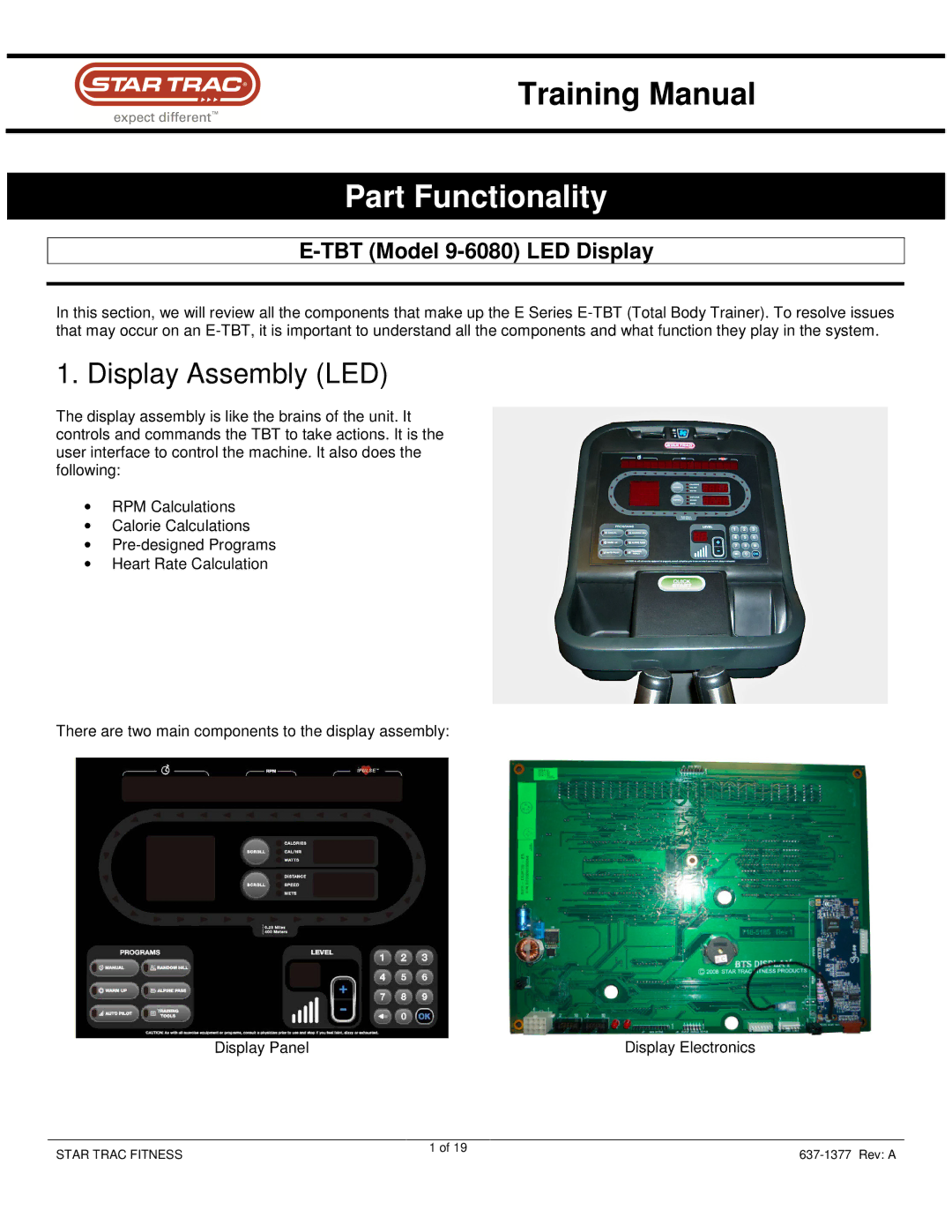

The display assembly is like the brains of the unit. It controls and commands the TBT to take actions. It is the user interface to control the machine. It also does the following:

•RPM Calculations

•Calorie Calculations

•Pre-designed Programs

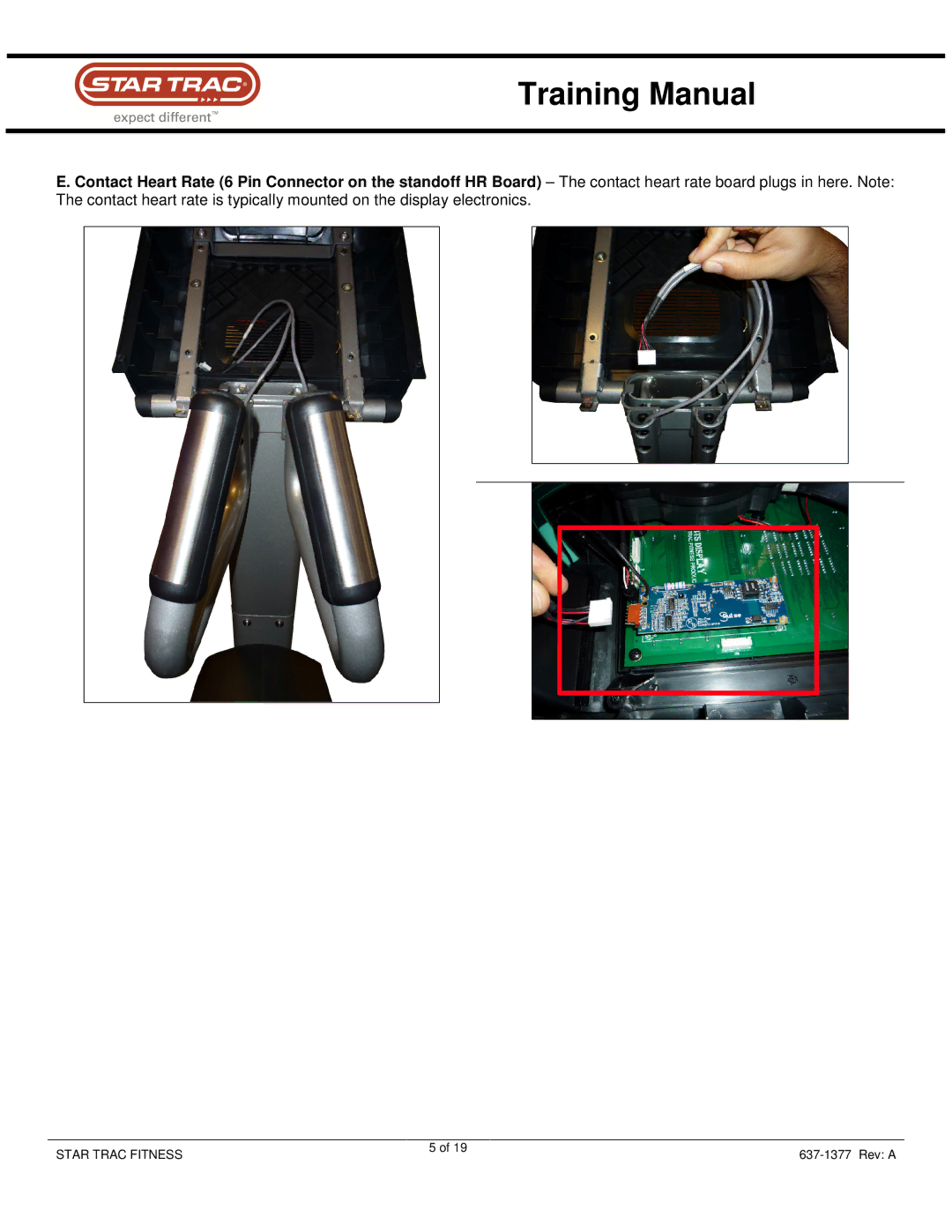

•Heart Rate Calculation

There are two main components to the display assembly:

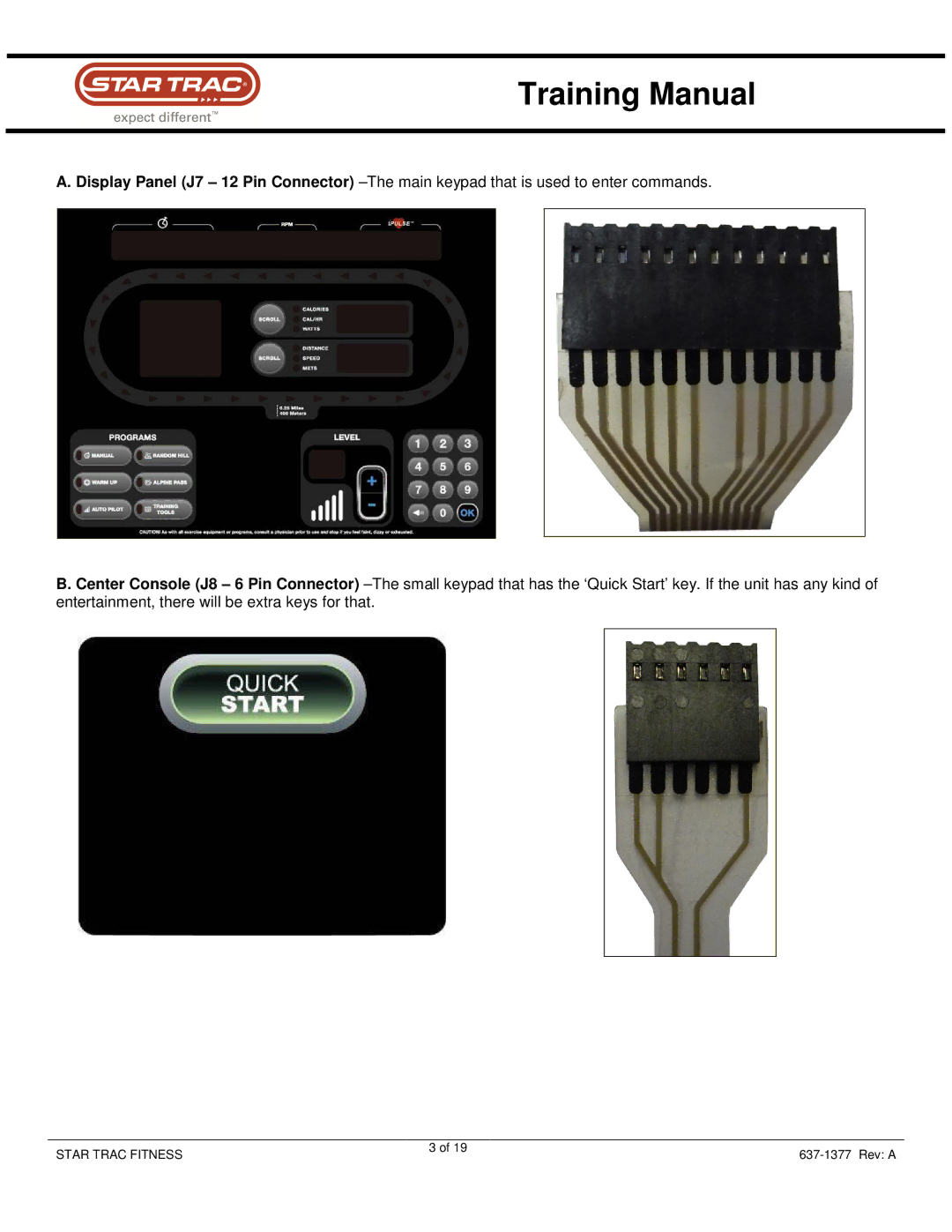

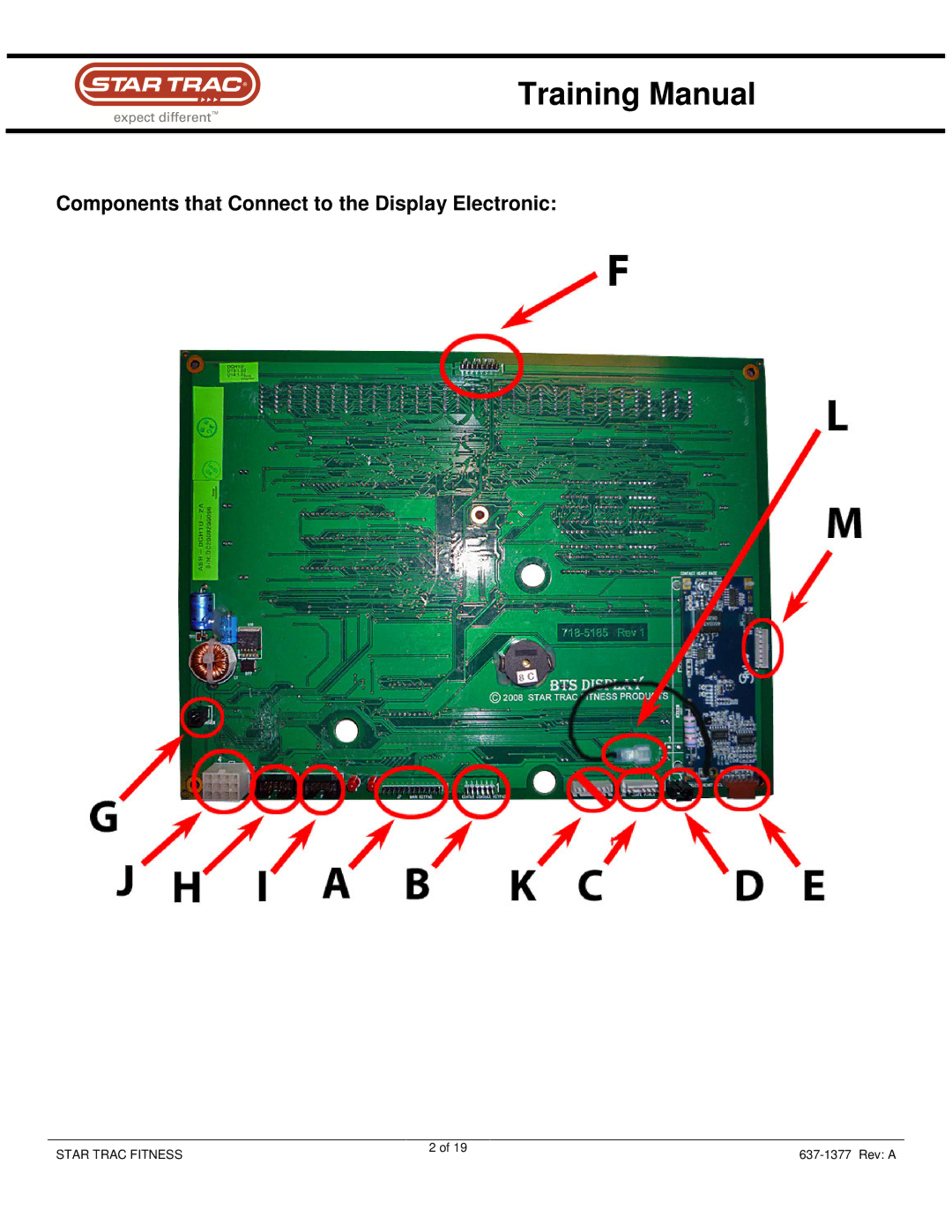

Display Panel Display Electronics
