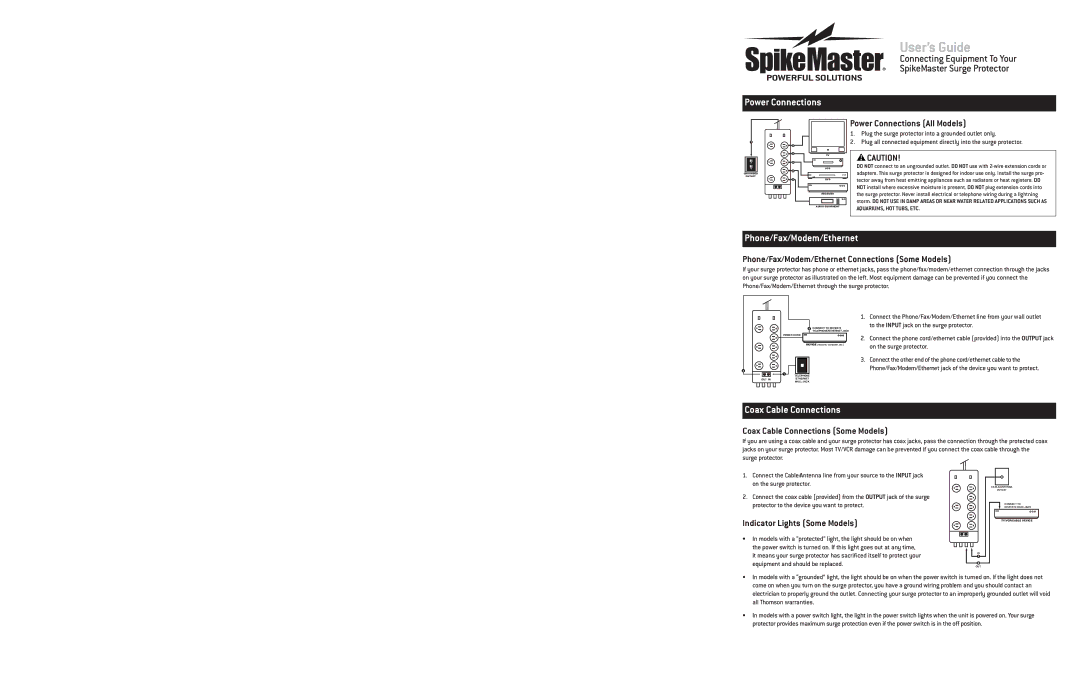

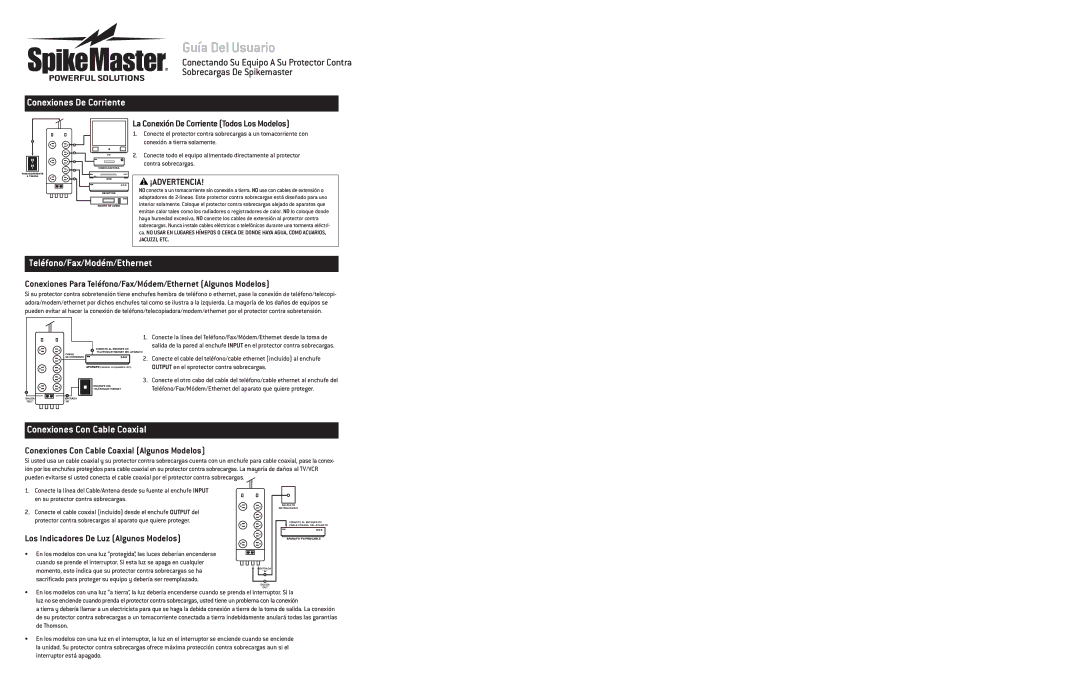

User’s Guide

Connecting Equipment To Your SpikeMaster Surge Protector

Power Connections

1
2
2	TV
2
2	VCR
GROUNDED
OUTLET
2	DVD
	RECEIVER
	AUDIO EQUIPMENT

Power Connections (All Models)

1.Plug the surge protector into a grounded outlet only.

2.Plug all connected equipment directly into the surge protector.

CAUTION!

DO NOT connect to an ungrounded outlet. DO NOT use with 2-wire extension cords or adapters. This surge protector is designed for indoor use only. Install the surge pro- tector away from heat emitting appliances such as radiators or heat registers. DO NOT install where excessive moisture is present. DO NOT plug extension cords into the surge protector. Never install electrical or telephone wiring during a lightning storm. DO NOT USE IN DAMP AREAS OR NEAR WATER RELATED APPLICATIONS SUCH AS

AQUARIUMS, HOT TUBS, ETC.

Phone/Fax/Modem/Ethernet

Phone/Fax/Modem/Ethernet Connections (Some Models)

If your surge protector has phone or ethernet jacks, pass the phone/fax/modem/ethernet connection through the jacks on your surge protector as illustrated on the left. Most equipment damage can be prevented if you connect the Phone/Fax/Modem/Ethernet through the surge protector.

		3	CONNECT TO DEVICE'S
			TELEPHONE/ETHERNET JACK
		POWER CORD
		DEVICE (receiver, computer, etc.)
2
		1
		TELEPHONE
OUT	IN	/ETHERNET
		WALL JACK

1.Connect the Phone/Fax/Modem/Ethernet line from your wall outlet to the INPUT jack on the surge protector.

2.Connect the phone cord/ethernet cable (provided) into the OUTPUT jack on the surge protector.

3.Connect the other end of the phone cord/ethernet cable to the Phone/Fax/Modem/Ethernet jack of the device you want to protect.

Coax Cable Connections

Coax Cable Connections (Some Models)

If you are using a coax cable and your surge protector has coax jacks, pass the connection through the protected coax jacks on your surge protector. Most TV/VCR damage can be prevented if you connect the coax cable through the surge protector.

1.Connect the Cable/Antenna line from your source to the INPUT jack on the surge protector.

2.Connect the coax cable (provided) from the OUTPUT jack of the surge protector to the device you want to protect.

Indicator Lights (Some Models)

•In models with a “protected” light, the light should be on when the power switch is turned on. If this light goes out at any time, it means your surge protector has sacrificed itself to protect your equipment and should be replaced.

IN 1

2

OUT

CABLE/ANTENNA

OUTLET

CONNECT TO

DEVICE'S COAX JACK

TV/VCR/CABLE DEVICE

•In models with a “grounded” light, the light should be on when the power switch is turned on. If the light does not come on when you turn on the surge protector, you have a ground wiring problem and you should contact an electrician to properly ground the outlet. Connecting your surge protector to an improperly grounded outlet will void all Thomson warranties.

•In models with a power switch light, the light in the power switch lights when the unit is powered on. Your surge protector provides maximum surge protection even if the power switch is in the off position.
