RH36D2, RH36D3, RH36D4, RH36D5 & RH36D6

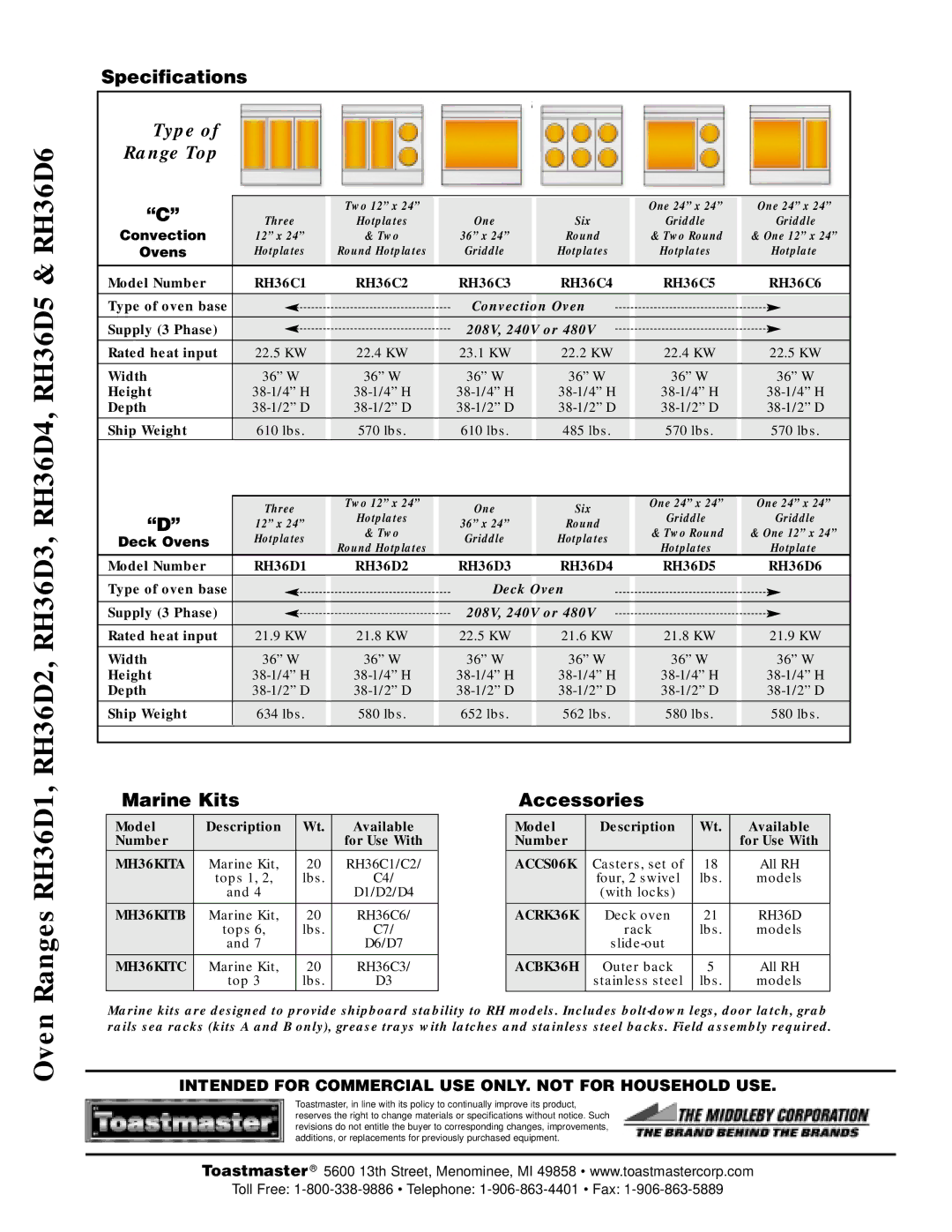

Specifications
		Models shown may ship UPS
Type of
Range Top
“C”		Two 12” x 24”			One 24” x 24”	One 24” x 24”
	Three	Hotplates	One	Six	Griddle	Griddle
Convection	12” x 24”	& Two	36” x 24”	Round	& Two Round	& One 12” x 24”
Ovens	Hotplates	Round Hotplates	Griddle	Hotplates	Hotplates	Hotplate
Model Number	RH36C1	RH36C2	RH36C3	RH36C4	RH36C5	RH36C6
Type of oven base			Convection Oven
Supply (3 Phase)			208V, 240V or 480V
Rated heat input	22.5 KW	22.4 KW	23.1 KW	22.2 KW	22.4 KW	22.5 KW
Width	36” W	36” W	36” W	36” W	36” W	36” W
Height	38-1/4” H	38-1/4” H	38-1/4” H	38-1/4” H	38-1/4” H	38-1/4” H
Depth	38-1/2” D	38-1/2” D	38-1/2” D	38-1/2” D	38-1/2” D	38-1/2” D
Ship Weight	610 lbs.	570 lbs.	610 lbs.	485 lbs.	570 lbs.	570 lbs.
	Three	Two 12” x 24”	One	Six	One 24” x 24”	One 24” x 24”
“D”		Hotplates			Griddle	Griddle
	12” x 24”		36” x 24”	Round
		& Two			& Two Round	& One 12” x 24”
Deck Ovens	Hotplates		Griddle	Hotplates
		Round Hotplates			Hotplates	Hotplate
Model Number	RH36D1	RH36D2	RH36D3	RH36D4	RH36D5	RH36D6
Type of oven base			Deck Oven
Supply (3 Phase)			208V, 240V or 480V
Rated heat input	21.9 KW	21.8 KW	22.5 KW	21.6 KW	21.8 KW	21.9 KW
Width	36” W	36” W	36” W	36” W	36” W	36” W
Height	38-1/4” H	38-1/4” H	38-1/4” H	38-1/4” H	38-1/4” H	38-1/4” H
Depth	38-1/2” D	38-1/2” D	38-1/2” D	38-1/2” D	38-1/2” D	38-1/2” D
Ship Weight	634 lbs.	580 lbs.	652 lbs.	562 lbs.	580 lbs.	580 lbs.

Ranges RH36D1,

Marine Kits

Model	Description	Wt.	Available
Number			for Use With
MH36KITA	Marine Kit,	20	RH36C1/C2/
	tops 1, 2,	lbs.	C4/
	and 4		D1/D2/D4
MH36KITB	Marine Kit,	20	RH36C6/
	tops 6,	lbs.	C7/
	and 7		D6/D7
MH36KITC	Marine Kit,	20	RH36C3/
	top 3	lbs.	D3

Accessories

Model	Description	Wt.	Available
Number			for Use With
ACCS06K	Casters, set of	18	All RH
	four, 2 swivel	lbs.	models
	(with locks)
ACRK36K	Deck oven	21	RH36D
	rack	lbs.	models
	slide-out
ACBK36H	Outer back	5	All RH
	stainless steel	lbs.	models

Oven

Marine kits are designed to provide shipboard stability to RH models. Includes bolt-down legs, door latch, grab rails sea racks (kits A and B only), grease trays with latches and stainless steel backs. Field assembly required.

INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.

Toastmaster, in line with its policy to continually improve its product, reserves the right to change materials or specifications without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
