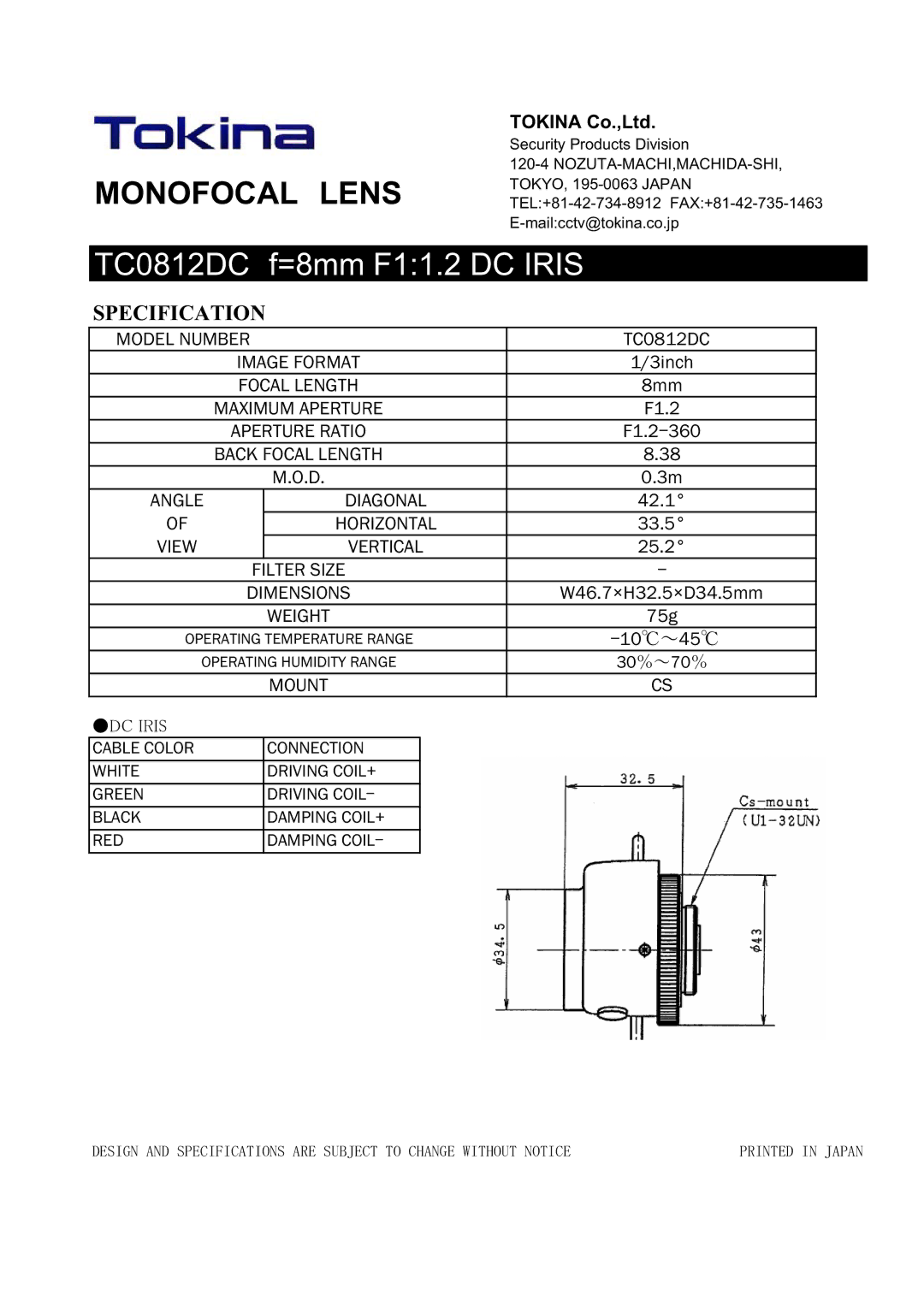

MONOFOCAL䇭LENS
TOKINA Co.,Ltd.
Security Products Division
TC0812DC f=8mm F1:1.2 DC IRIS
SPECIFICATION
MODEL NUMBER | TC0812DC | ||||
| IMAGE FORMAT | 1/3inch | |||
| FOCAL LENGTH |
| 8mm | ||
| MAXIMUM APERTURE |
| F1.2 | ||
| APERTURE RATIO | F1.2㪄360 | |||
| BACK FOCAL LENGTH |
| 8.38 | ||
|
| M.O.D. | 0.3m | ||
ANGLE |
| DIAGONAL | 42.1° | ||
OF |
| HORIZONTAL | 33.5° | ||
VIEW |
| VERTICAL | 25.2° | ||
|
| FILTER SIZE |
| 㪄 | |
| DIMENSIONS | W46.7×H32.5×D34.5mm | |||
|
| WEIGHT |
| 75g | |
OPERATING TEMPERATURE RANGE | 㩷㪄10 | 45 | |||
OPERATING HUMIDITY RANGE | 30 | 70 | |||
|
| MOUNT |
| CS | |
㪛㪚㩷㪠㪩㪠㪪 |
|
|
|
|
|
CABLE COLOR |
| CONNECTION |
|
|
|
WHITE |
| DRIVING COIL+ |
|
|
|
|
|
|
|
|
|
GREEN |
| DRIVING COIL㪄 |
|
|
|
|
|
|
|
|
|
BLACK |
| DAMPING COIL+ |
|
|
|
|
|
|
|
|
|
RED |
| DAMPING COIL㪄 |
|
|
|
&'5+)0#0&52'%+(+%#6+105#4'57$,'%661%*#0)'9+6*176016+%'24+06'&+0,#2#0
