Instructions for Toshiba G9 ETB006Z option card

Instructions for Toshiba G9 ETB006Z option card

Terminal Assignment

ETB006Z

G9

AC1

F

AC2

R

AC3

S1

AC4

S2

AC5

S3

AC6

RES

AC7

ST

Instructions:

1.- Disconnect the ST to CC jumper on the standard terminal strip.

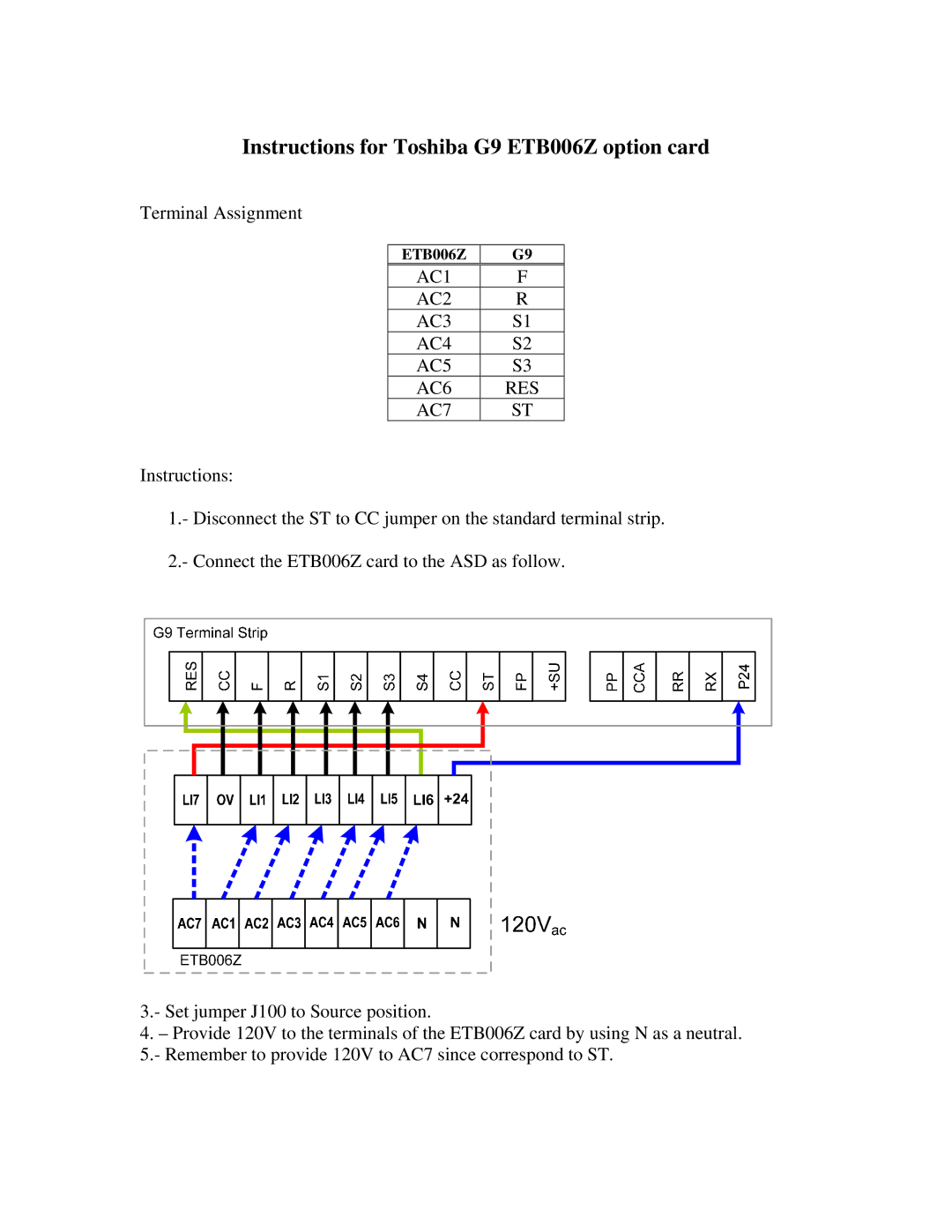

2.- Connect the ETB006Z card to the ASD as follow.

3.- Set jumper J100 to Source position.

4.– Provide 120V to the terminals of the ETB006Z card by using N as a neutral. 5.- Remember to provide 120V to AC7 since correspond to ST.
