Toshiba PBM-501L installation instructions Installation Instructions

Installation Instructions

PBM-501L

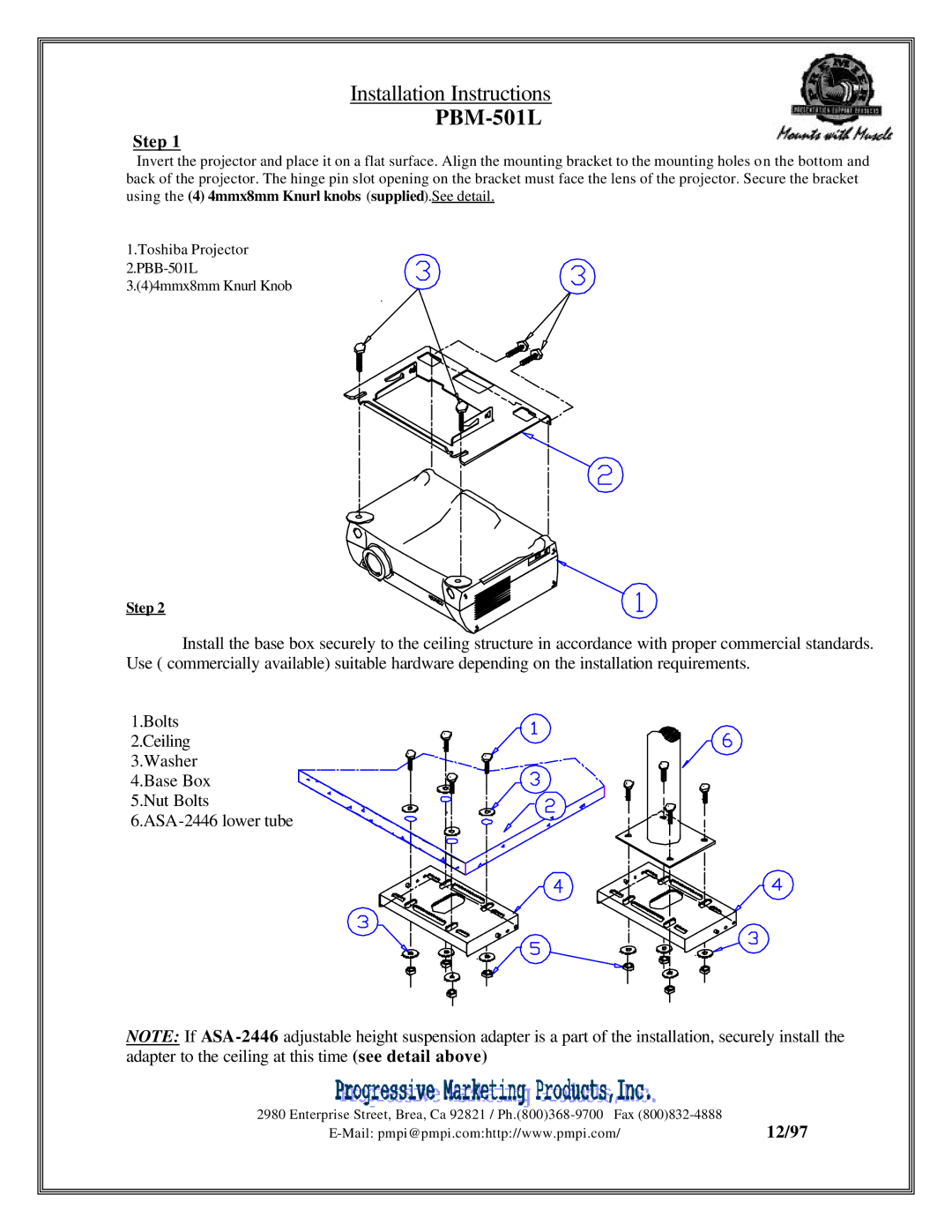

Step 1

Invert the projector and place it on a flat surface. Align the mounting bracket to the mounting holes on the bottom and back of the projector. The hinge pin slot opening on the bracket must face the lens of the projector. Secure the bracket using the (4) 4mmx8mm Knurl knobs (supplied).See detail.

1.Toshiba Projector 2.PBB-501L 3.(4)4mmx8mm Knurl Knob

Step 2

Install the base box securely to the ceiling structure in accordance with proper commercial standards. Use ( commercially available) suitable hardware depending on the installation requirements.

1.Bolts

2.Ceiling

3.Washer 4.Base Box 5.Nut Bolts

6.ASA-2446 lower tube

NOTE: If ASA-2446adjustable height suspension adapter is a part of the installation, securely install the adapter to the ceiling at this time (see detail above)

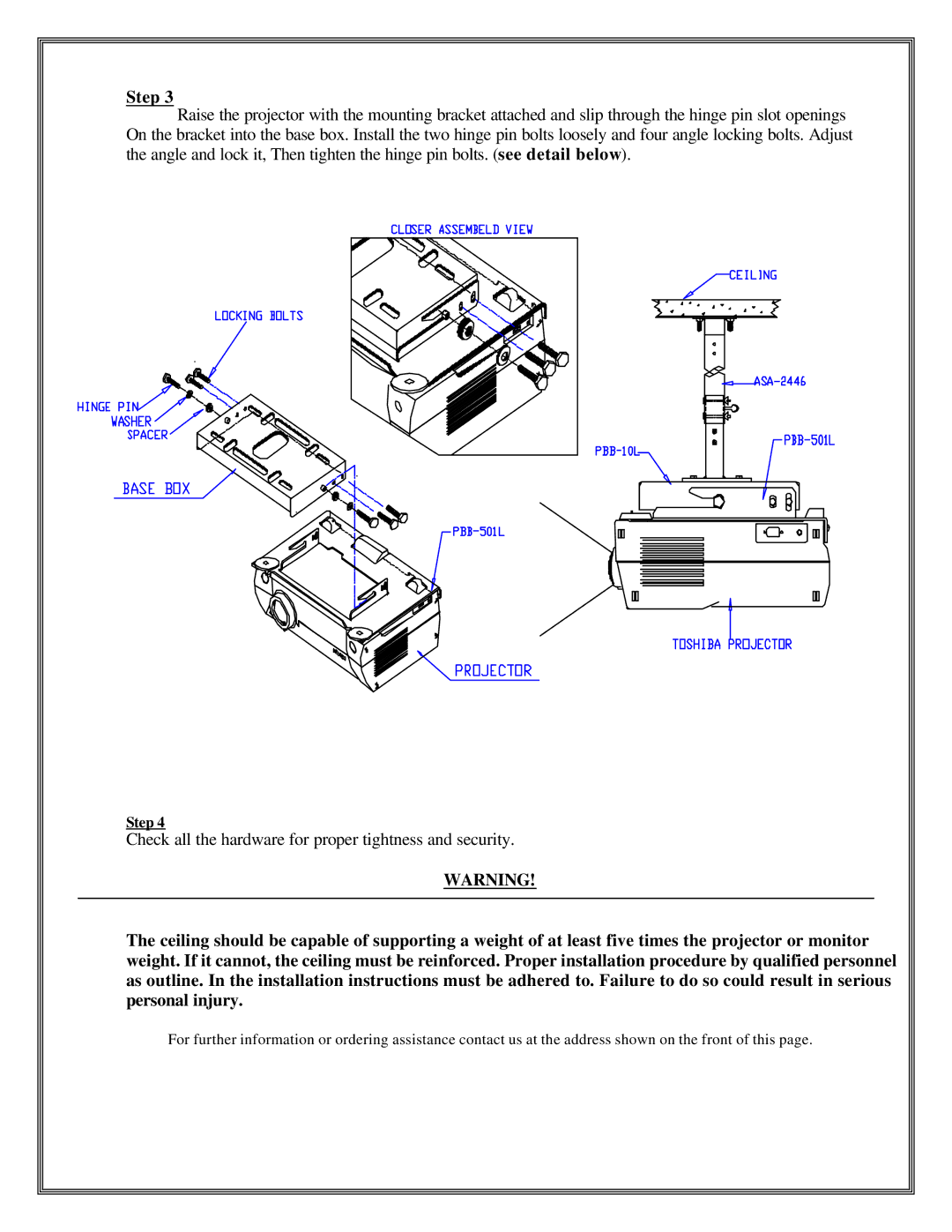

2980 Enterprise Street, Brea, Ca 92821 / Ph.(800)368-9700 Fax (800)832-4888
E-Mail: pmpi@pmpi.com:http://www.pmpi.com/	12/97
