P.29
©2008 ToteVision
Specifications subject to change without notice
• Battery pack for field monitor use included
• Ideal for troubleshooting system setup/fault location
• Snap on battery pack holds 8AA Alkaline or 9 Nicad rechargable batteries (batteries not included)
• Controls for tint, color, brightness (and audio volume for LCD-410)
• Case made of durable ABS plastic
• Battery pack provides 5.5hrs operation (approximately)
• Response Time: 30ms/50ms (Rising/Falling)
LCD- 410 Unit with Audio Capability (without BNC IN/OUT) shown in inset above.
Optional Accessories
AC-1000 A/C adaptor
BP-563 Rechargeable 2600mAH battery pack provides approximately 7 hrs of operation.
DC-12 Car Cord DC-12D Dual Car Cord
HS-1 Hot Shoe mount
MB-1 Desk Stand (shown above) MB-72M Metal mounting bracket TB-410 Custom Totebag with sun shield WM-1 Wall mount bracket
LCD-411Monitor with BNC
Active Matrix 4" Color LCD Monitor
• BNC IN/OUT jacks located on top for easy access (with self-termination feature)
• LED backlight provides longer life, uses less power and provides better color saturation

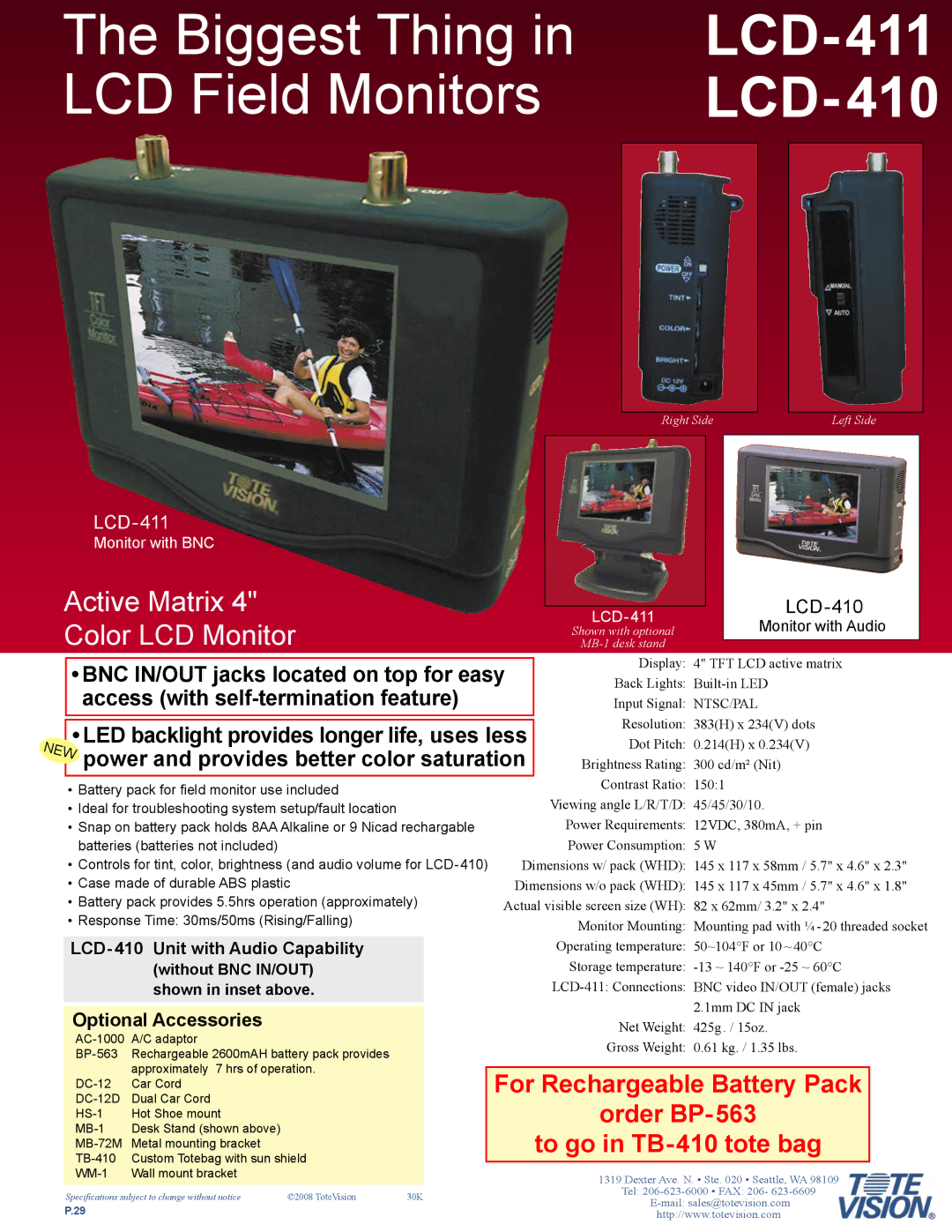

The Biggest Thing in LCD Field Monitors
LCD-411 LCD- 410
LCD-411
Shown with optional
MB-1 desk stand
LCD-410
Monitor with Audio
Display: 4" TFT LCD active matrix Back Lights: Built-in LED
Input Signal: NTSC/PAL Resolution: 383(H) x 234(V) dots Dot Pitch: 0.214(H) x 0.234(V)
Brightness Rating: 300 cd/m² (Nit) Contrast Ratio: 150:1
Viewing angle L/R/T/D: 45/45/30/10.
Power Requirements: 12VDC, 380mA, + pin
Power Consumption: 5 W
Dimensions w/ pack (WHD): 145 x 117 x 58mm / 5.7" x 4.6" x 2.3" Dimensions w/o pack (WHD): 145 x 117 x 45mm / 5.7" x 4.6" x 1.8"
Actual visible screen size (WH): 82 x 62mm/ 3.2" x 2.4"
Monitor Mounting: Mounting pad with ¼ -20 threaded socket Operating temperature: 50~104°F or 10 ~40°C
Storage temperature: -13 ~ 140°F or -25 ~ 60°C LCD-411: Connections: BNC video IN/OUT (female) jacks
2.1mm DC IN jack
Net Weight: 425g. / 15oz. Gross Weight: 0.61 kg. / 1.35 lbs.
For Rechargeable Battery Pack
order BP-563
to go in TB-410 tote bag
1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109
30KTel: 206-623-6000 • FAX: 206- 623-6609
E-mail: sales@totevision.com
http://www.totevision.com
