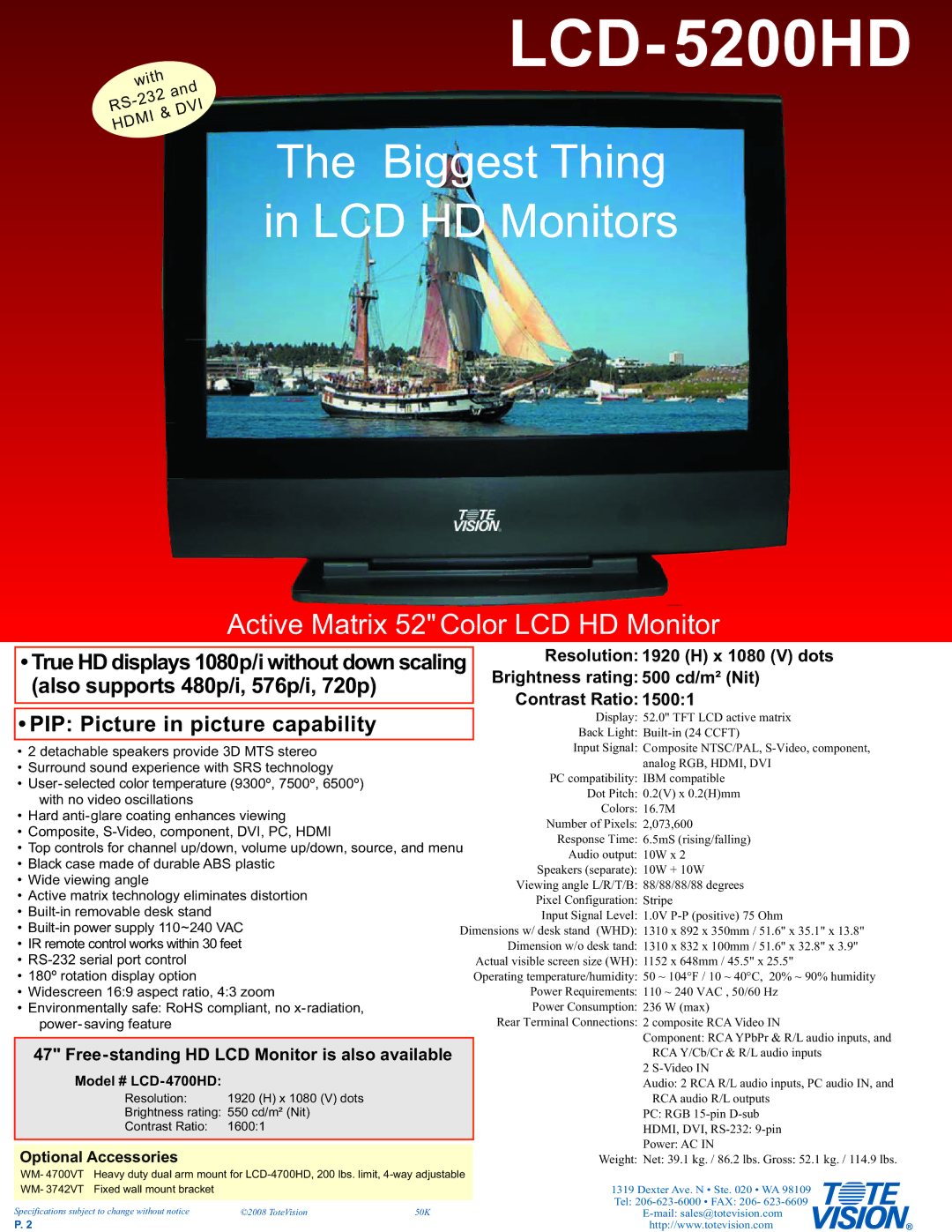

Tote Vision LCD-5200HD dimensions LCD- 5200HD, Biggest Thing LCD HD Monitors

LCD- 5200HD

	with	and
-232
RS	&		DVI
HDMI

The Biggest Thing

in LCD HD Monitors

Active Matrix 52" Color LCD HD Monitor

•True HD displays 1080p/i without down scaling (also supports 480p/i, 576p/i, 720p)

Resolution: 1920 (H) x 1080 (V) dots Brightness rating: 500 cd/m² (Nit)

Contrast Ratio: 1500:1

• PIP: Picture in picture capability			Display: 52.0" TFT LCD active matrix
			Back Light: Built-in (24 CCFT)
• 2 detachable speakers provide 3D MTS stereo			Input Signal: Composite NTSC/PAL, S-Video, component,
•	Surround sound experience with SRS technology		analog RGB, HDMI, DVI
• User- selected color temperature (9300º, 7500º, 6500º)			PC compatibility: IBM compatible
			Dot Pitch: 0.2(V) x 0.2(H)mm
	with no video oscillations
•			Colors: 16.7M
	Hard anti-glare coating enhances viewing
			Number of Pixels: 2,073,600
• Composite, S-Video, component, DVI, PC, HDMI
			Response Time: 6.5mS (rising/falling)
•	Top controls for channel up/down, volume up/down, source, and menu
			Audio output: 10W x 2
• Black case made of durable ABS plastic
			Speakers (separate): 10W + 10W
•	Wide viewing angle
			Viewing angle L/R/T/B: 88/88/88/88 degrees
•	Active matrix technology eliminates distortion		Pixel Configuration: Stripe
•	Built-in removable desk stand		Input Signal Level: 1.0V P-P (positive) 75 Ohm
•	Built-in power supply 110~240 VAC	Dimensions w/ desk stand (WHD): 1310 x 892 x 350mm / 51.6" x 35.1" x 13.8"
•	IR remote control works within 30 feet		Dimension w/o desk tand: 1310 x 832 x 100mm / 51.6" x 32.8" x 3.9"

• RS-232 serial port control	Actual visible screen size (WH): 1152 x 648mm / 45.5" x 25.5"
• 180º rotation display option	Operating temperature/humidity: 50 ~ 104°F / 10 ~ 40°C, 20% ~ 90% humidity
• Widescreen 16:9 aspect ratio, 4:3 zoom	Power Requirements: 110 ~ 240 VAC , 50/60 Hz
• Environmentally safe: RoHS compliant, no x-radiation,	Power Consumption: 236 W (max)
power- saving feature	Rear Terminal Connections: 2 composite RCA Video IN
	Component: RCA YPbPr & R/L audio inputs, and

47" Free-standing HD LCD Monitor is also available			RCA Y/Cb/Cr & R/L audio inputs
Model # LCD-4700HD:			2 S-Video IN
			Audio: 2 RCA R/L audio inputs, PC audio IN, and
Resolution:	1920 (H) x 1080 (V) dots		RCA audio R/L outputs
Brightness rating:	550 cd/m² (Nit)		PC: RGB 15-pin D-sub
Contrast Ratio:	1600:1		HDMI, DVI, RS-232: 9-pin
			Power: AC IN
Optional Accessories
			Weight: Net: 39.1 kg. / 86.2 lbs. Gross: 52.1 kg. / 114.9 lbs.
WM- 4700VT Heavy duty dual arm mount for LCD-4700HD, 200 lbs. limit, 4-way adjustable
WM- 3742VT Fixed wall mount bracket			1319 Dexter Ave. N • Ste. 020 • WA 98109
			Tel: 206-623-6000 • FAX: 206- 623-6609
Specifications subject to change without notice	©2008 ToteVision	50K
