Tripp Lite 1111 West 35th Street Chicago, IL 60609 USA Telephone: +(773) 869 1234 E-mail: saleshelp@tripplite.com

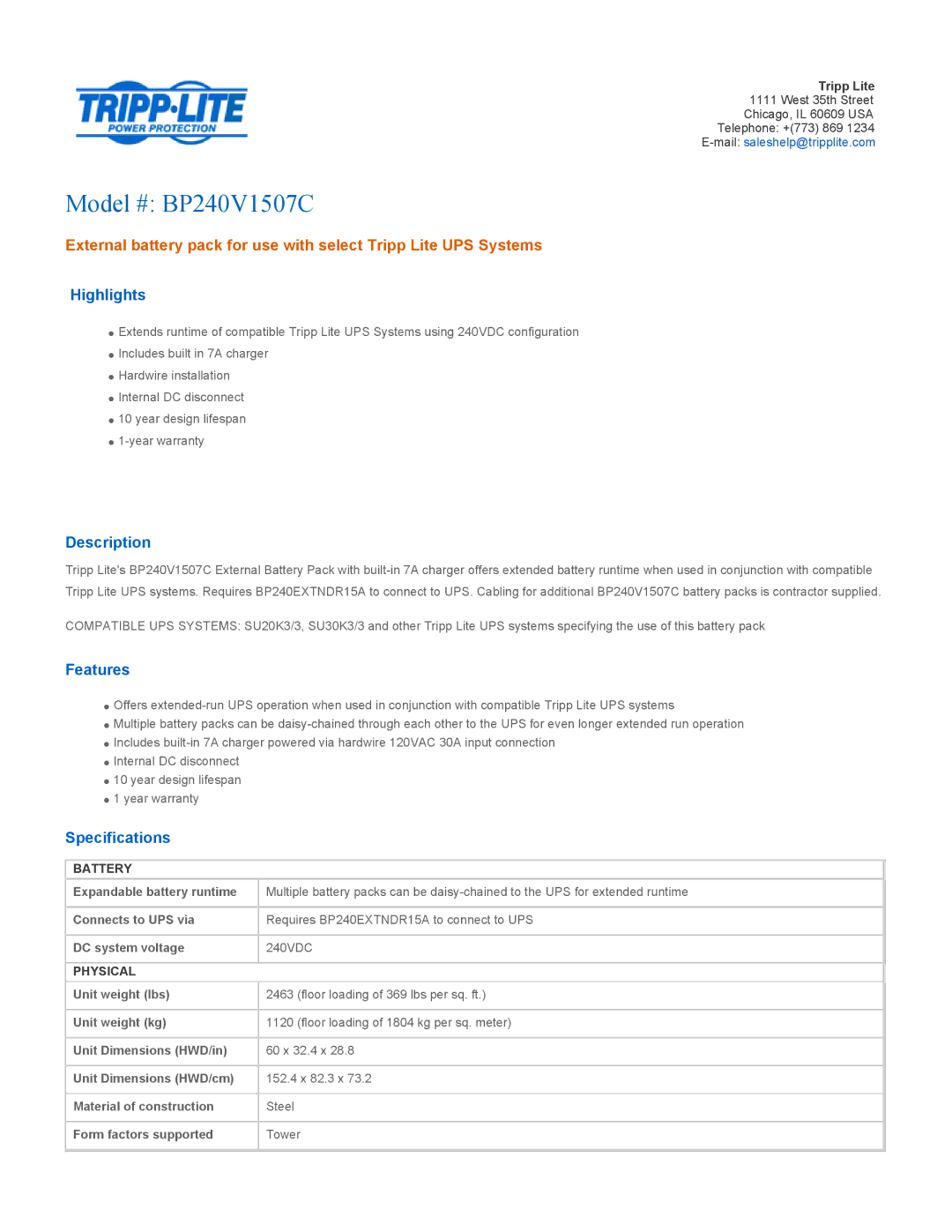

Model #: BP240V1507C

External battery pack for use with select Tripp Lite UPS Systems

Highlights

Extends runtime of compatible Tripp Lite UPS Systems using 240VDC configuration

Includes built in 7A charger

Hardwire installation

Internal DC disconnect

10 year design lifespan

1-year warranty

Description

Tripp Lite's BP240V1507C External Battery Pack with built-in 7A charger offers extended battery runtime when used in conjunction with compatible

Tripp Lite UPS systems. Requires BP240EXTNDR15A to connect to UPS. Cabling for additional BP240V1507C battery packs is contractor supplied.

COMPATIBLE UPS SYSTEMS: SU20K3/3, SU30K3/3 and other Tripp Lite UPS systems specifying the use of this battery pack

Features

Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems

Multiple battery packs can be daisy-chained through each other to the UPS for even longer extended run operation

Includes built-in 7A charger powered via hardwire 120VAC 30A input connection

Internal DC disconnect

10 year design lifespan 1 year warranty

Specifications

BATTERY

Expandable battery runtime

Multiple battery packs can be daisy-chained to the UPS for extended runtime





Connects to UPS via

Requires BP240EXTNDR15A to connect to UPS





DC system voltage

240VDC





PHYSICAL



Unit weight (lbs)

2463 (floor loading of 369 lbs per sq. ft.)

Unit weight (kg)

1120 (floor loading of 1804 kg per sq. meter)

Unit Dimensions (HWD/in)

60 x 32.4 x 28.8

Unit Dimensions (HWD/cm)

152.4 x 82.3 x 73.2

Material of construction

Steel

Form factors supported

Tower

Page 1
Image 1
Tripp Lite specifications Model # BP240V1507C, Highlights, Description, Features, Specifications

BP240V1507C specifications

The Tripp Lite BP240V1507C is a high-performance battery backup system designed to protect essential equipment from power interruptions, ensuring continuous operation in critical situations. This uninterruptible power supply (UPS) unit is particularly suited for network hardware, servers, and telecommunications applications, making it a necessary asset for both personal and professional use.

One of the standout features of the BP240V1507C is its significant power capacity. With a robust output rating of 1500VA, this unit delivers reliable power to keep connected devices running smoothly. The UPS operates with pure sine wave technology, which is essential for providing clean, consistent power to sensitive electronics, helping to avoid damage and ensuring that devices function optimally.

The BP240V1507C is designed with advanced technologies to enhance performance and user experience. It includes various built-in protection mechanisms such as surge protection, voltage regulation, and short-circuit protection, all of which work together to safeguard connected equipment against electrical anomalies. This multi-faceted approach to power management means users can rely on the UPS during not only sudden outages but also voltage fluctuations and surges.

Additionally, the UPS features multiple outlets, allowing users to connect various devices simultaneously. This flexibility is essential for users with multiple components that require reliable power supply, such as servers and networking equipment. The LCD display provides real-time information on battery status, load levels, and estimated runtime, making it easy for users to monitor their system's health.

Installation and usability have been carefully considered in the design of the BP240V1507C. It is lightweight and compact, making it easy to position in a data center, office, or home environment. The unit’s fanless design ensures quiet operation, which is a crucial aspect for environments like libraries or personal working spaces where noise can be a distraction.

In summary, the Tripp Lite BP240V1507C combines essential features such as high power capacity, pure sine wave output, advanced protection technologies, and user-friendly interfaces to deliver an efficient and reliable backup power solution. This UPS is ideal for anyone looking to enhance their power management strategy and ensure the smooth operation of critical devices during unexpected power disruptions.
