Before You Begin

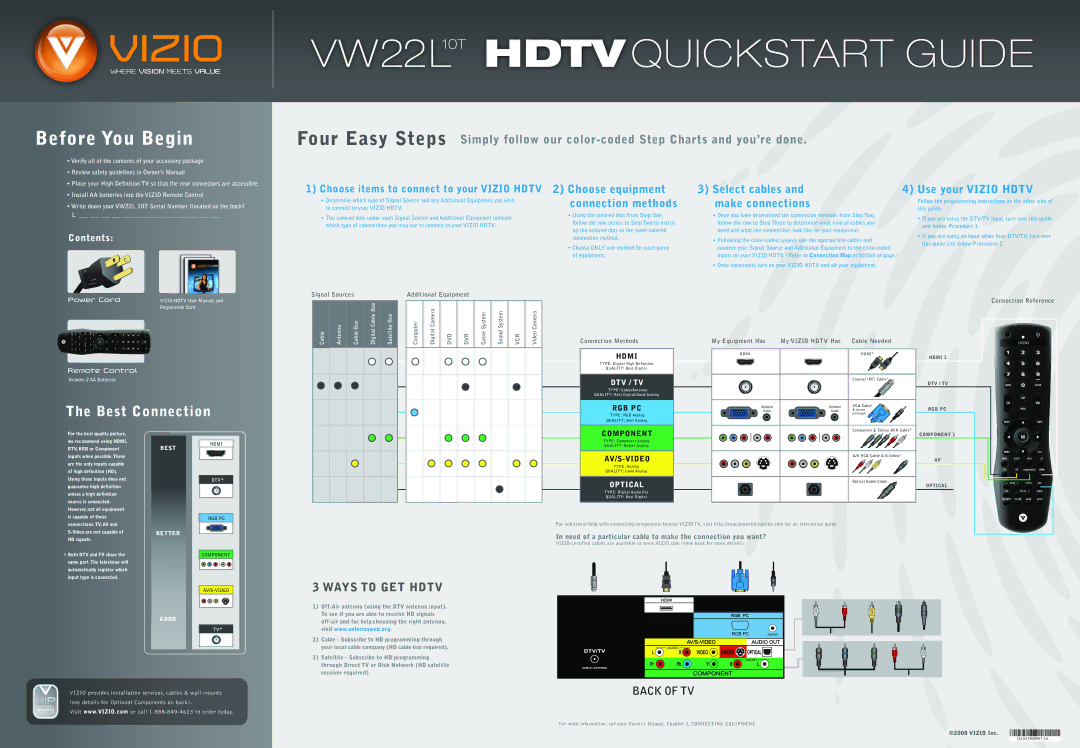

VW22L10T HDTVQUICKSTART GUIDE

Four Easy Steps Simply follow our color-coded Step Charts and you’re done.

•Verify all of the contents of your accessory package•Review safety guidelines in Owner’s Manual

•Place your High Definition TV so that the rear connectors are accessible

•Install AA batteries into the VIZIO Remote Control•Write down your VW22L 10T Serial Number (located on the back)

L ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___

Contents:

1)Choose items to connect to your VIZIO HDTV

•Determine which type of Signal Source and any Additional Equipment you wish to connect to your VIZIO HDTV.

•The colored dots under each Signal Source and Additional Equipment indicate which type of connections you may use to connect to your VIZIO HDTV.

2)Choose equipment connection methods

•Using the colored dots from Step One, follow the row across to Step Two to match up the colored dots to the same colored connection method.

•Choose ONLY one method for each piece of equipment.

3)Select cables and make connections

•Once you have determined the connection methods from Step Two, follow the row to Step Three to determine what kind of cables you need and what the connections look like on your equipment.

•Following the color-coded system, use the appropriate cables and connect your Signal Source and Additional Equipment to the color-coded inputs on your VIZIO HDTV. (Refer to Connection Map at bottom of page.)

•Once connected, turn on your VIZIO HDTV and all your equipment.

4) Use your VIZIO HDTV

Follow the programming instructions on the other side of this guide.

•If you are using the DTV/TV input, turn over this guide and follow Procedure 1.

•If you are using an input other than DTV/TV, turn over this guide and follow Procedure 2.

Power Cord	VIZIO HDTV User Manual, and
	Registration Card.

Signal Sources

Additional Equipment

Connection Reference

Remote Control

Includes 2 AA Batteries

The Best Connection

Computer Digital Camera DVD DVR Game System Sound System VCR Video Camera

Connection MethodsHDMI

TYPE: Digital High Definition

QUALITY: Best Digital

DTV / TV

TYPE: Cable/Antenna

QUALITY: Best Digital/Good Analog

RGB PC

TYPE: RGB Analog

QUALITY: Best Analog

My Equipment Has	My VIZIO HDTV Has	Cable Needed
HDMI		HDMI*
		Coaxial (RF) Cable*
Optional	Optional	VGA Cable
Audio	Audio	& stereo
		mini-jack

HDMI 1

DTV / TV

RGB PC

For the best quality picture, we recommend using HDMI, DTV, RGB or Component inputs when possible.These are the only inputs capable of high definition (HD). Using these inputs does not guarantee high definition unless a high definition source is connected. However, not all equipment

BEST

HDMI

DTV+

COMPONENT

TYPE: Component Analog

QUALITY: Better Analog

AV/S-VIDEO

TYPE: Analog

QUALITY: Good Analog

OPTICAL

TYPE: Digital Audio Out QUALITY: Best Digital

Component & Stereo RCA Cable*

A/V RCA Cable & S-Video*

Optical Audio Cable

COMPONENT 1

AV

OPTICAL

is capable of these connections.TV, AV and S-Video are not capable of HD signals.

+Both DTV and TV share the same port.The television will automatically register which input type is connected.

BETTER

GOOD

RGB PC

COMPONENT

AV/S-VIDEO

TV+

For additional help with connecting components to your VIZIO TV, visit http://ceaconnectionsguide.com for an interactive guide

In need of a particular cable to make the connection you want?

VIZIO-certified cables are available at www.VIZIO.com (view back for more details).

3 WAYS TO GET HDTV

1) Off-Air antenna (using the DTV antenna input). To see if you are able to receive HD signals off-air and for help choosing the right antenna, visit www.antennaweb.org.

2) Cable - Subscribe to HD programming through your local cable company (HD cable box required).

3) Satellite - Subscribe to HD programming through Direct TV or Dish Network (HD satellite receiver required).

VIZIO provides installation services, cables & wall mounts (see details for Optional Components on back).

Visit www.VIZIO.com or call 1-888-849-4623 to order today.

BACK OF TV

For more information, see your Owner’s Manual, Chapter 2, CONNECTING EQUIPMENT.
