PARTS LIST NO.

545164384

R R

LIST

MODEL(s)





















POULPARAMOUNTPOULANPRO PARTSLIST

WT250CLS (RoW)

DATE



Replaces







7/29/11



545164384 -- 6/30/10

Note: Illustration may differ from actual model due to design changes

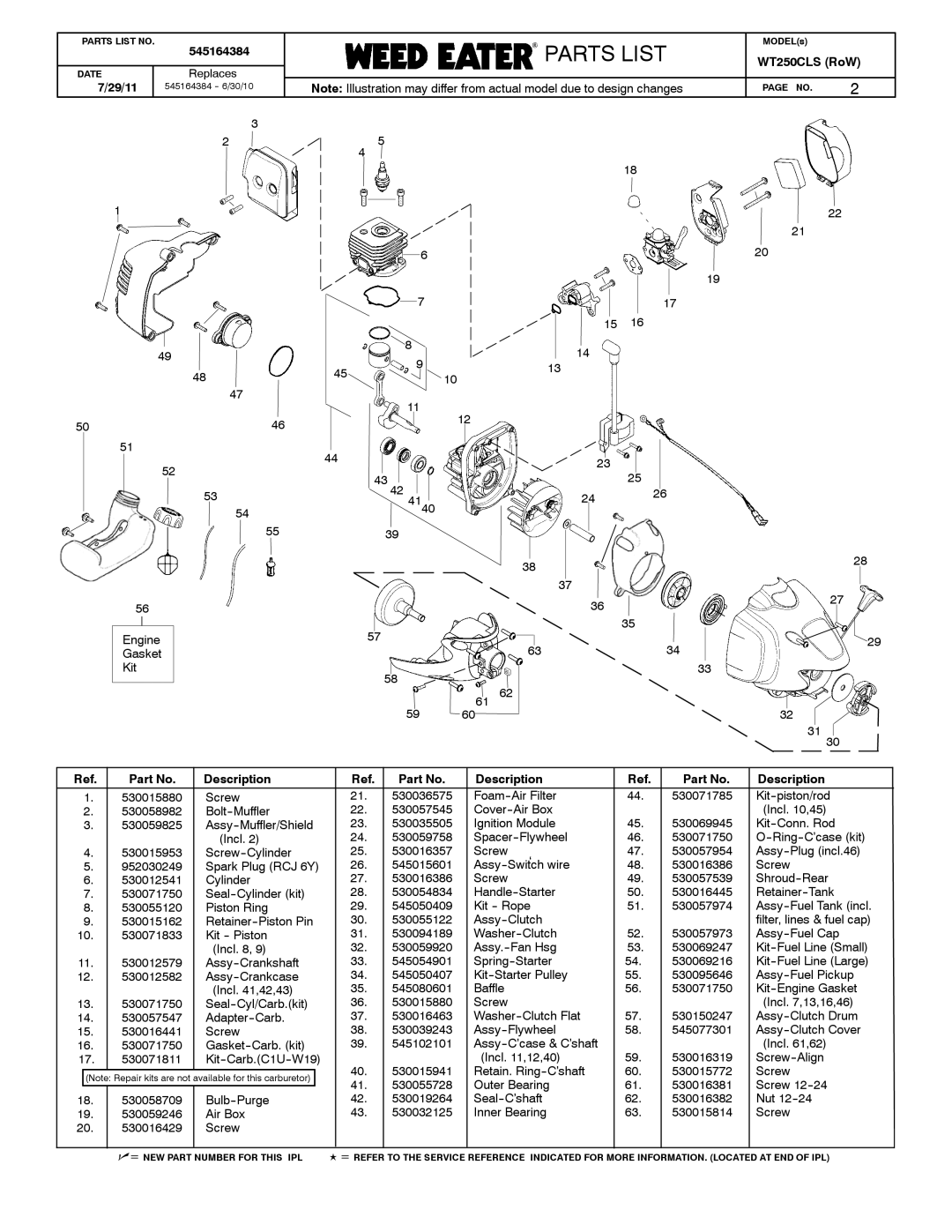

PAGE NO. 2

3

2

4

5

1

18

22 21

49

48

47

5046



6



7



8

45

9

10





11

12

20

19

17

15 16

14

13

51

52

53

54

55

56

Engine

Gasket

Kit

44

43 42

39

57

58

4140

61 62



23

25











24

26









38





28









37



27



36













35



63



34

29











33

59 60

32

31 30

Ref.

Part No.

Description

Ref.

Part No.

Description

Ref.

Part No.

Description



1.

530015880

Screw

21.

530036575

Foam--Air Filter

44.

530071785

Kit--piston/rod



2.

530058982

Bolt--Muffler

22.

530057545

Cover--Air Box





(Incl. 10,45)

3.

530059825

Assy--Muffler/Shield

23.

530035505

Ignition Module

45.

530069945

Kit--Conn. Rod







(Incl. 2)

24.

530059758

Spacer--Flywheel

46.

530071750

O--Ring--C’case (kit)

4.

530015953

Screw--Cylinder

25.

530016357

Screw

‘

47.

530057954

Assy--Plug (incl.46)

5.

952030249

Spark Plug (RCJ 6Y)

26.

545015601



48.

530016386

Screw

Assy--Switch wire

6.

530012541

Cylinder

27.

530016386

Screw



49.

530057539

Shroud--Rear

7.

530071750

Seal--Cylinder (kit)

28.

530054834

Handle--Starter

50.

530016445

Retainer--Tank

8.

530055120

Piston Ring

29.

545050409

Kit -- Rope

51.

530057974

Assy--Fuel Tank (incl.

9.

530015162

Retainer--Piston Pin

30.

530055122

Assy--Clutch





filter, lines & fuel cap)

10.

530071833

Kit -- Piston

31.

530094189

Washer--Clutch

52.

530057973

Assy--Fuel Cap







(Incl. 8, 9)

32.

530059920

Assy.--Fan Hsg

53.

530069247

Kit--Fuel Line (Small)

11.

530012579

Assy--Crankshaft

33.

545054901

Spring--Starter

54.

530069216

Kit--Fuel Line (Large)

12.

530012582

Assy--Crankcase

34.

545050407

Kit--Starter Pulley

55.

530095646

Assy--Fuel Pickup







(Incl. 41,42,43)

35.

545080601

Baffle



56.

530071750

Kit--Engine Gasket

13.

530071750

Seal--Cyl/Carb.(kit)

36.

530015880

Screw







(Incl. 7,13,16,46)

14.

530057547

Adapter--Carb.

37.

530016463

Washer--Clutch Flat

57.

530150247

Assy--Clutch Drum

15.

530016441

Screw

38.

530039243

Assy--Flywheel

58.

545077301

Assy--Clutch Cover

16.

530071750

Gasket--Carb. (kit)

39.

545102101

Assy--C’case & C’shaft





(Incl. 61,62)

17.

530071811

Kit--Carb.(C1U--W19)





(Incl. 11,12,40)

59.

530016319

Screw--Align











40.

530015941

Retain. Ring--C’shaft

60.

530015772

Screw



(Note: Repair kits are not available for this carburetor)







41.

530055728

Outer Bearing

61.

530016381

Screw 12--24

18.

530058709

Bulb--Purge

42.

530019264

Seal--C’shaft

62.

530016382

Nut 12--24

19.

530059246

Air Box

43.

530032125

Inner Bearing

63.

530015814

Screw

20.

530016429

Screw











































n= NEW PART NUMBER FOR THIS IPL K = REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
