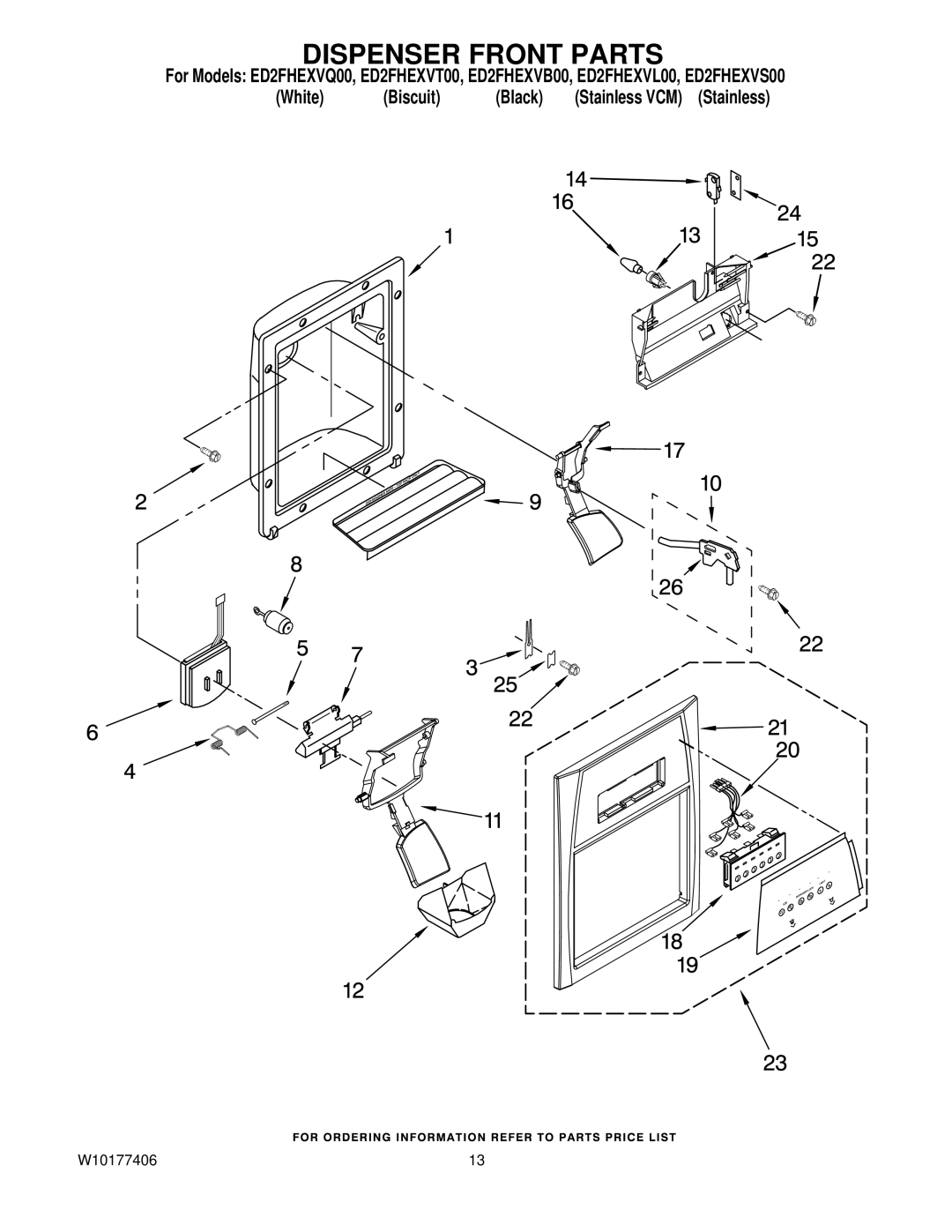

DISPENSER FRONT PARTS
For Models: ED2FHEXVQ00, ED2FHEXVT00, ED2FHEXVB00, ED2FHEXVL00, ED2FHEXVS00
(White) | (Biscuit) | (Black) | (Stainless VCM) (Stainless) | ||
| Illus. | Part |
|
|
|
| No. | No. | DESCRIPTION |
| |
1Housing, Dispenser (Not Serviced)
23196537 Screw
32194719 Retainer, Levers
42180209 Spring, Torsion
52196195 Pin
62180353 Door, Ice
72304355 Door Mechanism Assembly
82205686 Mechanism Delay
9Grille, Overflow
2206671W White
2206671T Biscuit
2206671B Black
102304317 Water Fitting Assembly (Includes Water Tube)
11Lever, Ice
Dispenser
W10152853 White
W10152855 Biscuit
W10152854 Black
122180224 Guide, Ice
132180200 Lamp Holder
142162361 Switch (2)
152183771 Bracket, Control
163406124 Bulb, Light
17Lever, Water
Dispenser
W10152858 White
W10152860 Biscuit
W10152859 Black
18Switch Assembly (Not Available Order #23)
19Overlay, Front Cover
(Not Available Order #23)
202311650 Wire Assembly
21Front Cover, Housing (Not Available, Order #23)
22489000 Screw
23Front Cover Assembly (Includes Items
18, 19, 20 & 21)
W10153723 White
W10167075 Biscuit
W10153724 Black
24625834 Spacer, Switch (2)
252195051 Strain Relief
262304673 Bracket, Dispenser
14 | W10177406 |
