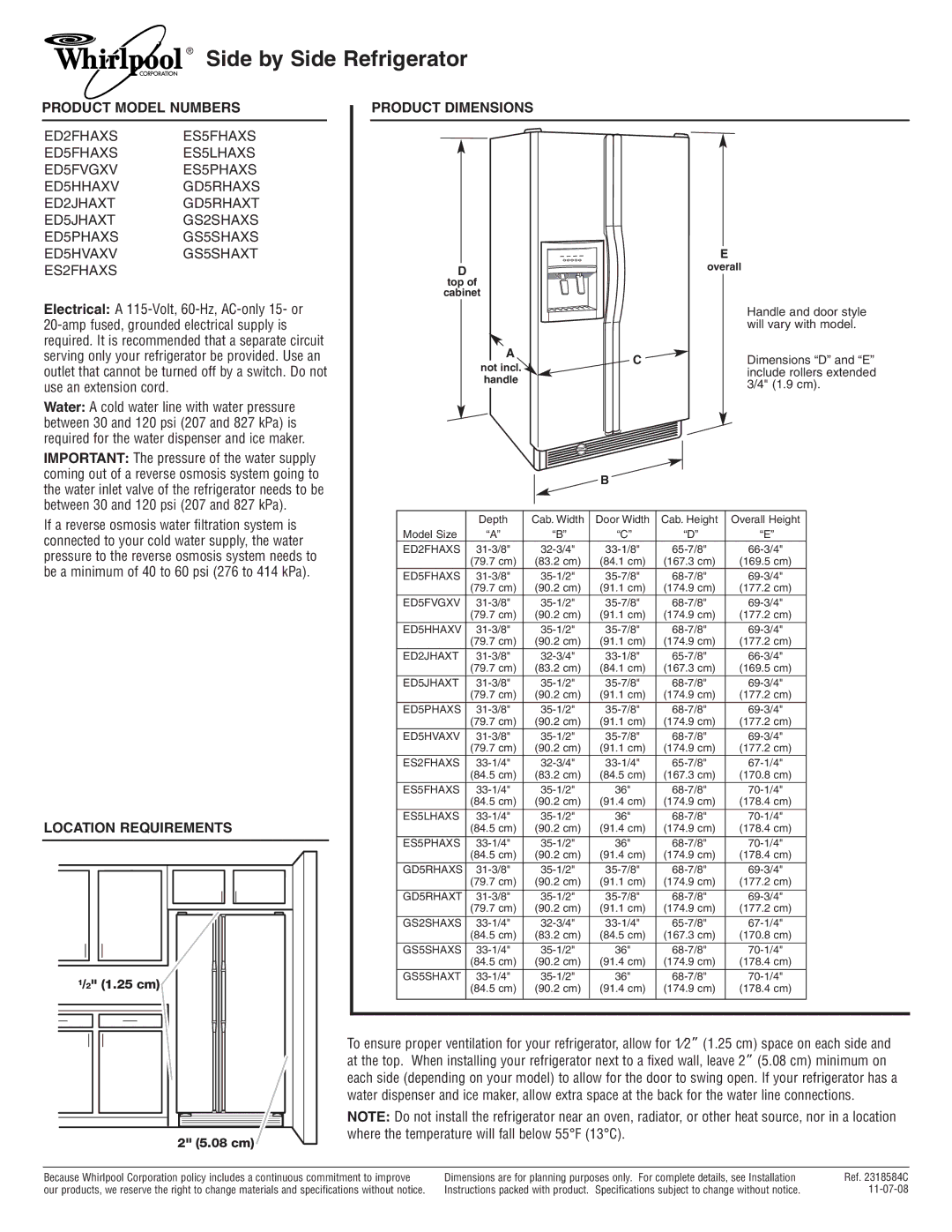

® Side by Side Refrigerator

PRODUCT MODEL NUMBERS

ED2FHAXS ES5FHAXS

ED5FHAXS ES5LHAXS

PRODUCT DIMENSIONS

ED5FVGXV ES5PHAXS

ED5HHAXV GD5RHAXS

ED2JHAXT GD5RHAXT

ED5JHAXT GS2SHAXS

ED5PHAXS GS5SHAXS

ED5HVAXV GS5SHAXT ES2FHAXS

Electrical: A 115-Volt, 60-Hz, AC-only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

Water: A cold water line with water pressure between 30 and 120 psi (207 and 827 kPa) is required for the water dispenser and ice maker.

D

top of

cabinet

A

not incl. handle

1





E







overall











Handle and door style









will vary with model.









C







Dimensions “D” and “E”









include rollers extended

















3/4" (1.9 cm).











IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

LOCATION REQUIREMENTS

1/2" (1.25 cm)

2" (5.08 cm)

B



Depth

Cab. Width

Door Width

Cab. Height

Overall Height

Model Size

“A”

“B”

“C”

“D”

“E”

ED2FHAXS

31-3/8"

32-3/4"

33-1/8"

65-7/8"

66-3/4"



(79.7 cm)

(83.2 cm)

(84.1 cm)

(167.3 cm)

(169.5 cm)

ED5FHAXS

31-3/8"

35-1/2"

35-7/8"

68-7/8"

69-3/4"



(79.7 cm)

(90.2 cm)

(91.1 cm)

(174.9 cm)

(177.2 cm)

ED5FVGXV

31-3/8"

35-1/2"

35-7/8"

68-7/8"

69-3/4"



(79.7 cm)

(90.2 cm)

(91.1 cm)

(174.9 cm)

(177.2 cm)

ED5HHAXV

31-3/8"

35-1/2"

35-7/8"

68-7/8"

69-3/4"



(79.7 cm)

(90.2 cm)

(91.1 cm)

(174.9 cm)

(177.2 cm)

ED2JHAXT

31-3/8"

32-3/4"

33-1/8"

65-7/8"

66-3/4"



(79.7 cm)

(83.2 cm)

(84.1 cm)

(167.3 cm)

(169.5 cm)

ED5JHAXT

31-3/8"

35-1/2"

35-7/8"

68-7/8"

69-3/4"



(79.7 cm)

(90.2 cm)

(91.1 cm)

(174.9 cm)

(177.2 cm)

ED5PHAXS

31-3/8"

35-1/2"

35-7/8"

68-7/8"

69-3/4"



(79.7 cm)

(90.2 cm)

(91.1 cm)

(174.9 cm)

(177.2 cm)

ED5HVAXV

31-3/8"

35-1/2"

35-7/8"

68-7/8"

69-3/4"



(79.7 cm)

(90.2 cm)

(91.1 cm)

(174.9 cm)

(177.2 cm)

ES2FHAXS

33-1/4"

32-3/4"

33-1/4"

65-7/8"

67-1/4"



(84.5 cm)

(83.2 cm)

(84.5 cm)

(167.3 cm)

(170.8 cm)

ES5FHAXS

33-1/4"

35-1/2"

36"

68-7/8"

70-1/4"



(84.5 cm)

(90.2 cm)

(91.4 cm)

(174.9 cm)

(178.4 cm)

ES5LHAXS

33-1/4"

35-1/2"

36"

68-7/8"

70-1/4"



(84.5 cm)

(90.2 cm)

(91.4 cm)

(174.9 cm)

(178.4 cm)













ES5PHAXS

33-1/4"

35-1/2"

36"

68-7/8"

70-1/4"



(84.5 cm)

(90.2 cm)

(91.4 cm)

(174.9 cm)

(178.4 cm)

GD5RHAXS

31-3/8"

35-1/2"

35-7/8"

68-7/8"

69-3/4"



(79.7 cm)

(90.2 cm)

(91.1 cm)

(174.9 cm)

(177.2 cm)













GD5RHAXT

31-3/8"

35-1/2"

35-7/8"

68-7/8"

69-3/4"



(79.7 cm)

(90.2 cm)

(91.1 cm)

(174.9 cm)

(177.2 cm)

GS2SHAXS

33-1/4"

32-3/4"

33-1/4"

65-7/8"

67-1/4"



(84.5 cm)

(83.2 cm)

(84.5 cm)

(167.3 cm)

(170.8 cm)

GS5SHAXS

33-1/4"

35-1/2"

36"

68-7/8"

70-1/4"



(84.5 cm)

(90.2 cm)

(91.4 cm)

(174.9 cm)

(178.4 cm)

GS5SHAXT

33-1/4"

35-1/2"

36"

68-7/8"

70-1/4"



(84.5 cm)

(90.2 cm)

(91.4 cm)

(174.9 cm)

(178.4 cm)













To ensure proper ventilation for your refrigerator, allow for 1⁄2” (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall, leave 2” (5.08 cm) minimum on each side (depending on your model) to allow for the door to swing open. If your refrigerator has a water dispenser and ice maker, allow extra space at the back for the water line connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor in a location where the temperature will fall below 55°F (13°C).

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Ref. 2318584C

Instructions packed with product. Specifications subject to change without notice.

11-07-08
