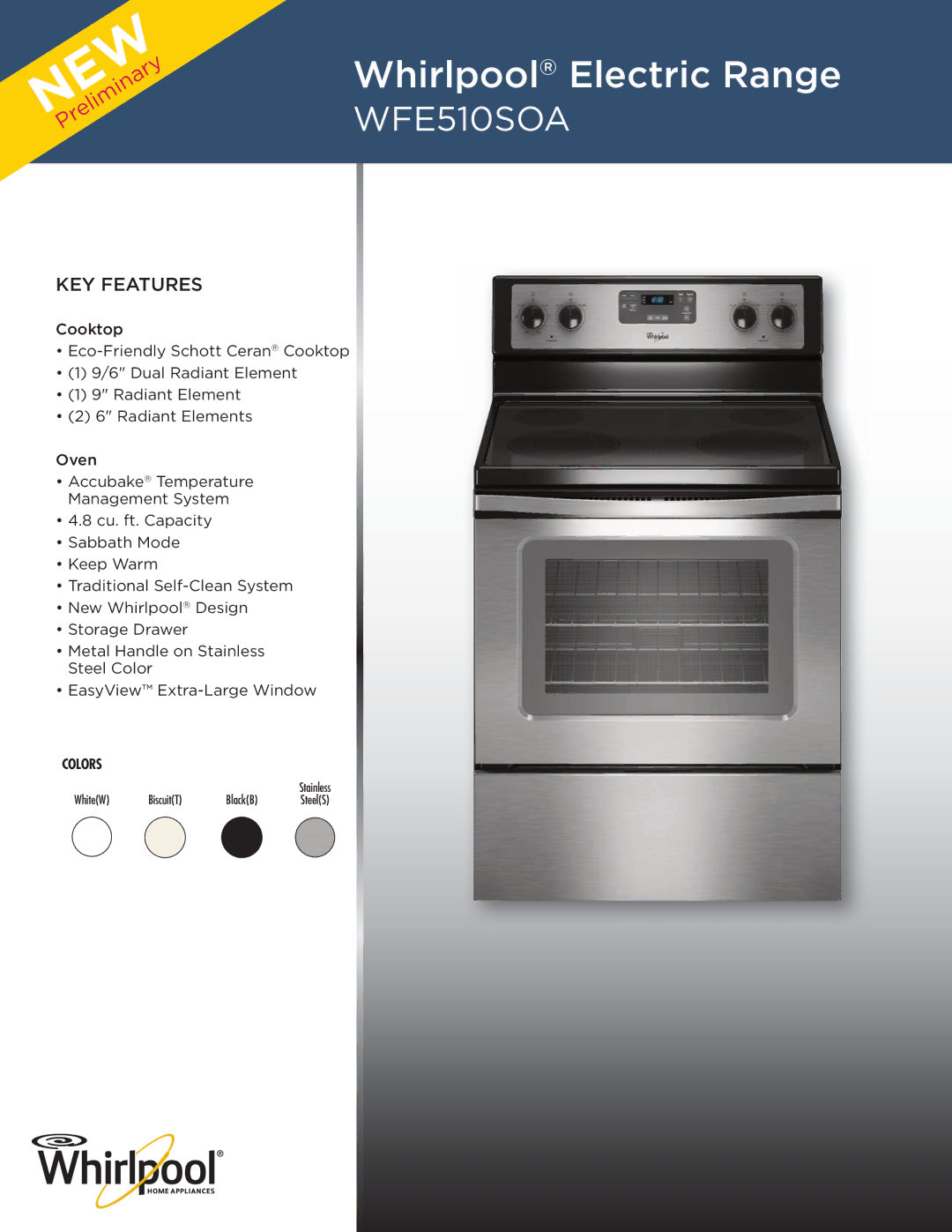

Freestanding Electric Range

wfE510SOA

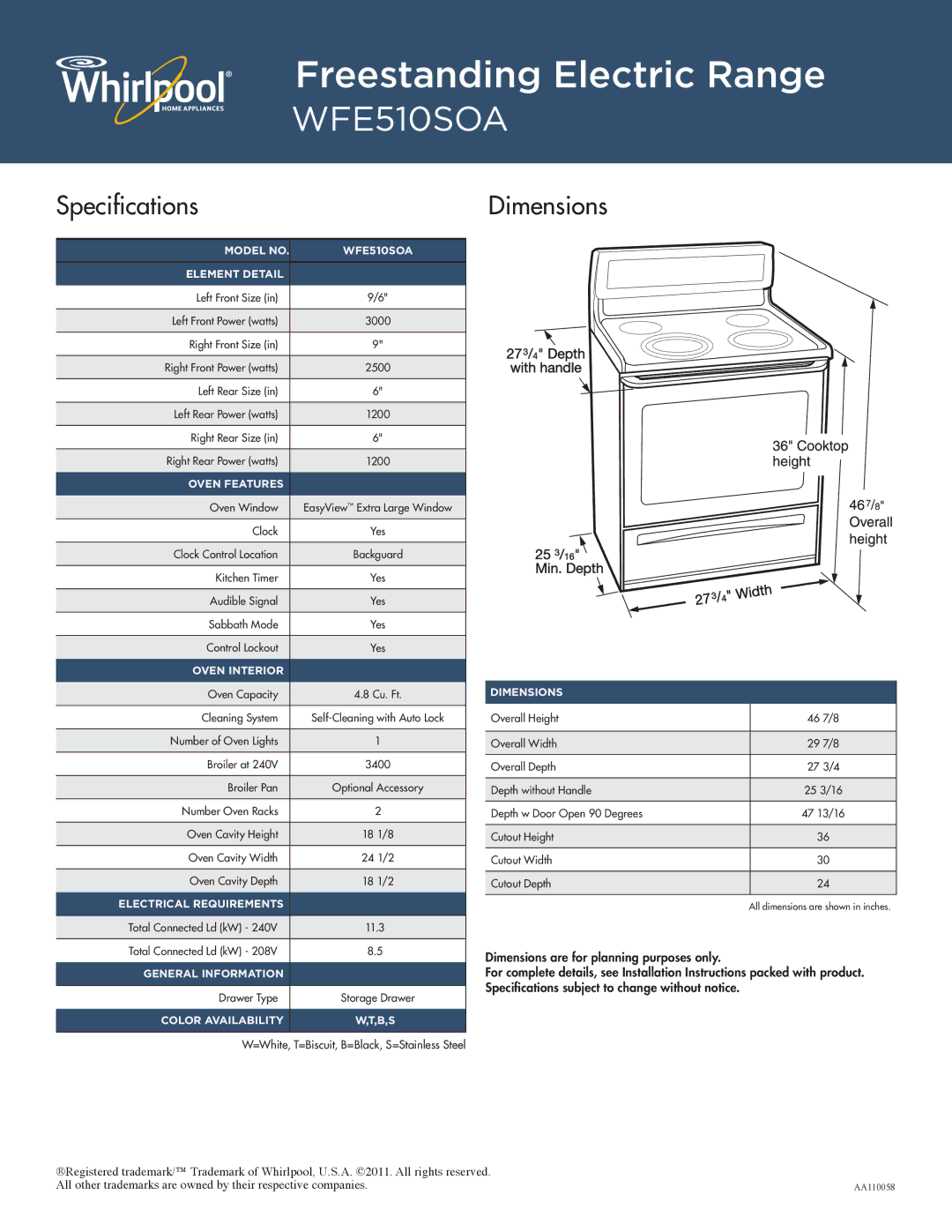

Specifications

model no.

WFE510SOA





Element Detail



Left Front Size (in)

9/6"





Left Front Power (watts)

3000





Right Front Size (in)

9"





Right Front Power (watts)

2500





Left Rear Size (in)

6"





Left Rear Power (watts)

1200





Right Rear Size (in)

6"





Right Rear Power (watts)

1200

Oven Features



Oven Window

EasyViewExtra Large Window





Clock

Yes





Clock Control Location

Backguard





Kitchen Timer

Yes





Audible Signal

Yes





Sabbath Mode

Yes





Control Lockout

Yes

Oven Interior



Oven Capacity

4.8 Cu. Ft.





Cleaning System

Self-Cleaning with Auto Lock





Number of Oven Lights

1





Broiler at 240V

3400





Broiler Pan

Optional Accessory





Number Oven Racks

2





Oven Cavity Height

18 1/8





Oven Cavity Width

24 1/2





Oven Cavity Depth

18 1/2

Electrical Requirements







Total Connected Ld (kW) - 240V

11.3





Total Connected Ld (kW) - 208V

8.5

general information







Drawer Type

Storage Drawer

color availability

W,T,B,S





Dimensions

273/4" Depth with handle

25 3/16" Min. Depth

3

Width

27

/4"







dimensions

Overall Height

46 7/8





Overall Width

29 7/8





Overall Depth

27 3/4





Depth without Handle

25 3/16





Depth w Door Open 90 Degrees

47 13/16





Cutout Height

36





Cutout Width

30





Cutout Depth

24





All dimensions are shown in inches.

Dimensions are for planning purposes only.

For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.

W=White, T=Biscuit, B=Black, S=Stainless Steel

®Registered trademark/™ Trademark of Whirlpool, U.S.A. ©2011. All rights reserved.



All other trademarks are owned by their respective companies.

AA110058
