Winegard installation instructions Winegard, MODEL DS-1000 Universal Home Mount

WINEGARD®

MODEL DS-1000

Universal Home Mount

WARNING:

INSTALLATION OF THIS MOUNT NEAR POWER LINES IS DANGEROUS. FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.

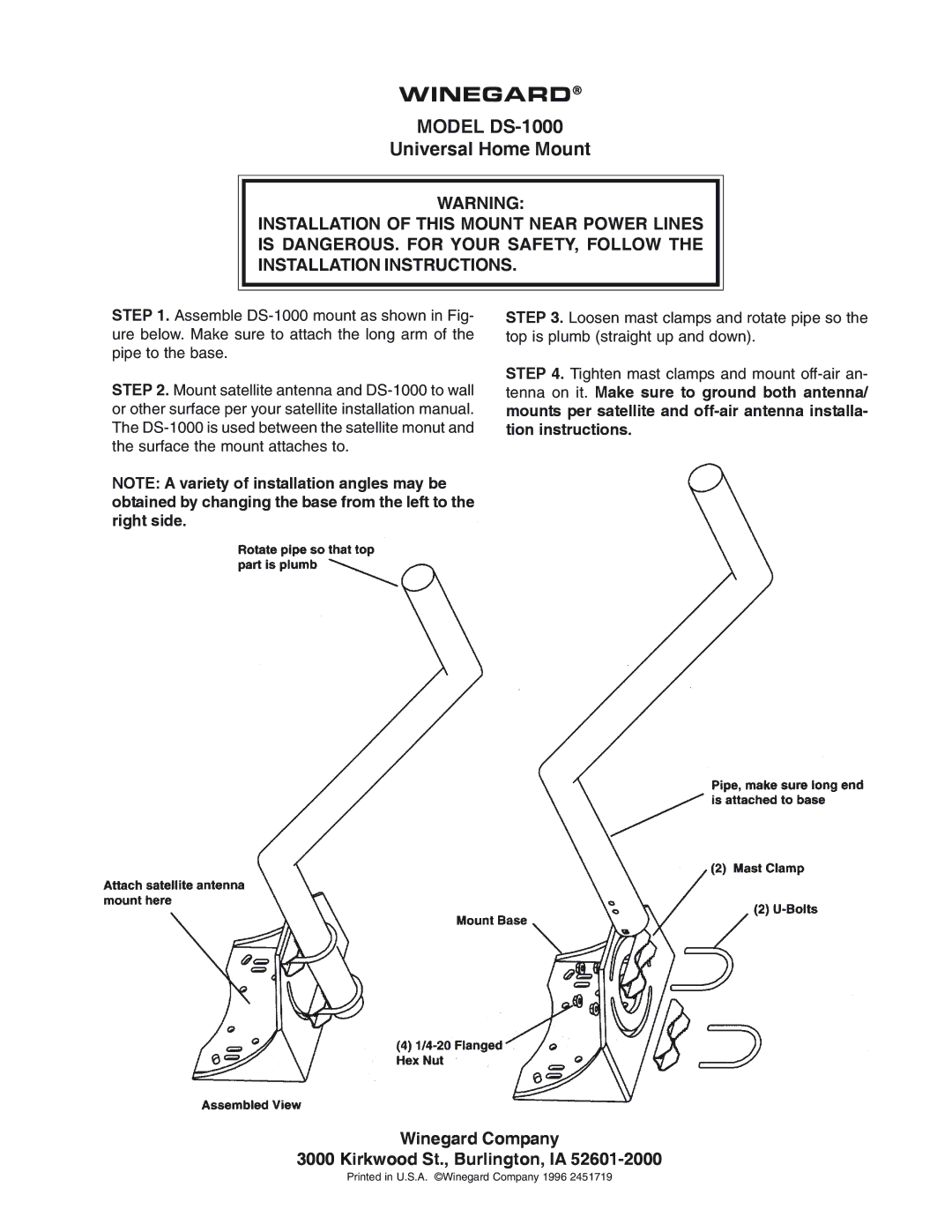

STEP 1. Assemble DS-1000 mount as shown in Fig- ure below. Make sure to attach the long arm of the pipe to the base.

STEP 2. Mount satellite antenna and DS-1000 to wall or other surface per your satellite installation manual. The DS-1000 is used between the satellite monut and the surface the mount attaches to.

NOTE: A variety of installation angles may be obtained by changing the base from the left to the right side.

STEP 3. Loosen mast clamps and rotate pipe so the top is plumb (straight up and down).

STEP 4. Tighten mast clamps and mount off-air an- tenna on it. Make sure to ground both antenna/ mounts per satellite and off-air antenna installa- tion instructions.

Winegard Company

3000 Kirkwood St., Burlington, IA 52601-2000

Printed in U.S.A. ©Winegard Company 1996 2451719
