OVERALL DIMENSIONS

TOP WIDTH

SUBTRACT 18" (457) FROM OVERALL WIDTH

18" (457)

OVERALL

HEIGHT

Pro Island Ventilation Hoods

OVERALL WIDTH



Unit dimensions may vary by ± 1/8".

13"

(330)

4" (102)

34" (864)

OVERALL DEPTH

SPECIFICATIONS

Exterior Finish

Stainless Steel

Overall Widths

36", 42", 54" and 66"

Overall Height



18"

Overall Depth



34"

Bottom of Hood to Countertop

30" to 36"

Discharge



Vertical

Duct Size



10" Round

Electrical Requirements



110/120 V AC

60 Hz, 15 amp dedicated circuit

Shipping Weight



95–168 lbs

INSTALLATION SPECIFICATIONS

LOCATION OF ELECTRICAL SUPPLY

THROUGH TOP OF HOOD

WIDTH OF HOOD

30" TO 36"

(762–914)

TO COUNTERTOP

18" (457)

HEIGHT

OF HOOD

34" (864)

DEPTH OF HOOD

30" TO 36"

(762–914)

TO COUNTERTOP

INSTALLATION NOTES

Pro island hoods are sold as a shell only. An internal, in-line or remote blower is required. For blower recommendations, visit our website, wolfappliance.c om.

Pro island ventilation hoods are recom- mended for use with all Wolf cooking appli- ances.

Complete installation specifications can be found on our website, wolfappliance.com.

VERTICAL DISCHARGE ONLY FOR ISLAND HOODS.

Dimensions in parentheses are in millimeters unless otherwise specified.

©Wolf Appliance, Inc. all rights reserved. Features and specifications are subject to change at any time without notice.

1/10

Page 2
Image 2

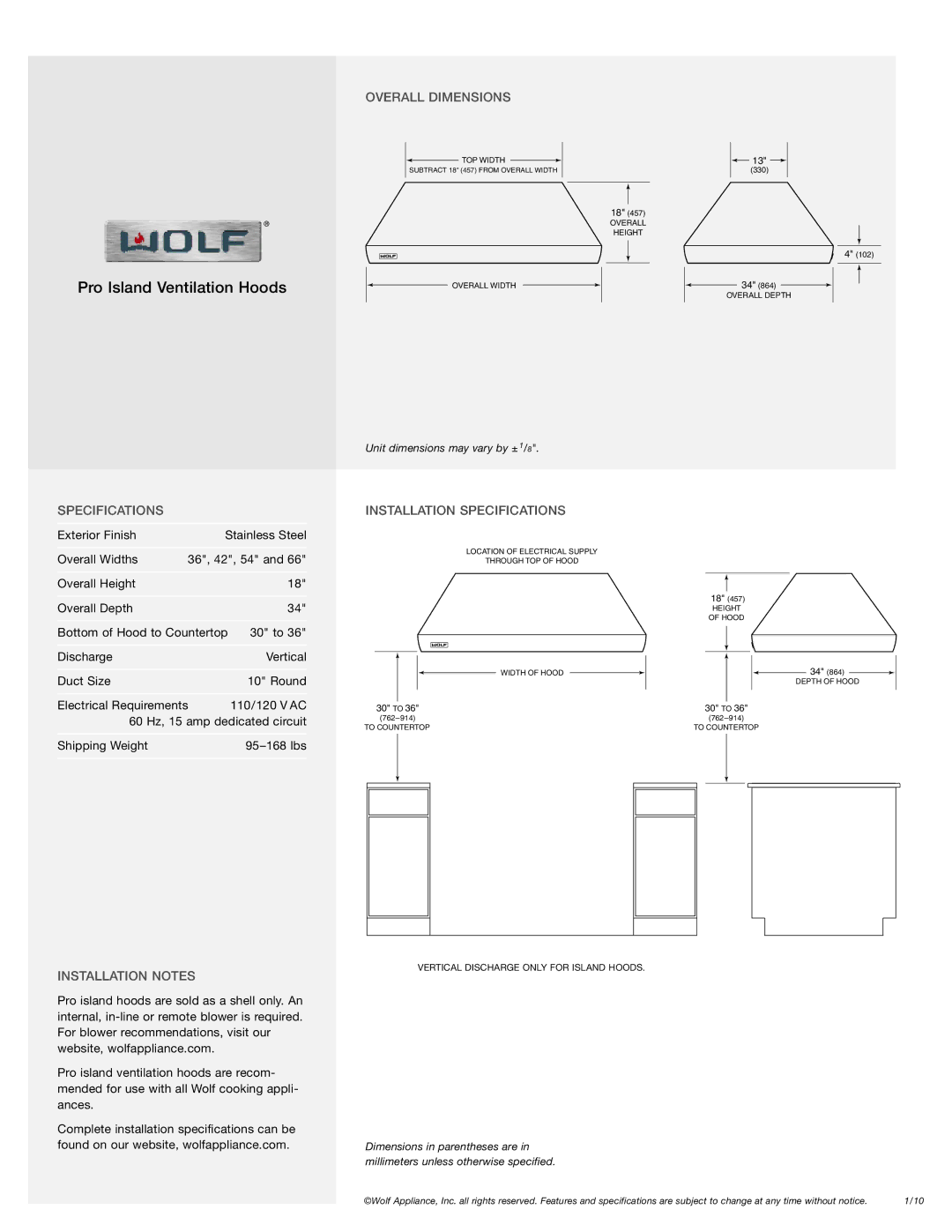

Wolf PI663418, PI363418, PI543418, PI423418 manual Overall Dimensions, Installation Specifications, Installation Notes
