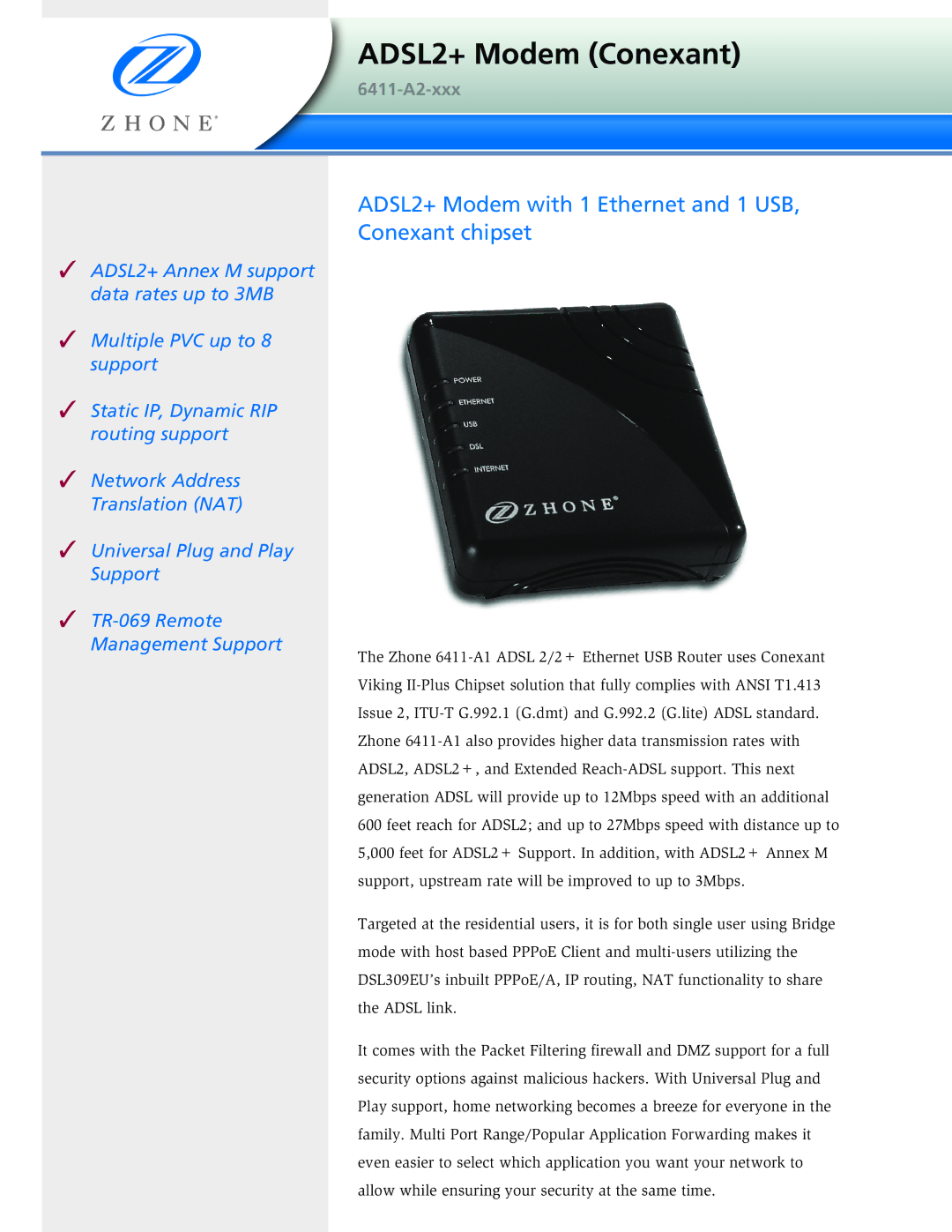

Zhone Technologies 6411 manual ADSL2+ Modem Conexant

ADSL2+ Modem (Conexant)

6411-A2-xxx

ADSL2+ Modem with 1 Ethernet and 1 USB,

Conexant chipset

✓ADSL2+ Annex M support data rates up to 3MB

✓Multiple PVC up to 8 support

✓Static IP, Dynamic RIP routing support

✓Network Address Translation (NAT)

✓Universal Plug and Play Support

✓TR-069 Remote Management Support

The Zhone 6411-A1 ADSL 2/2+ Ethernet USB Router uses Conexant Viking II-Plus Chipset solution that fully complies with ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite) ADSL standard. Zhone 6411-A1 also provides higher data transmission rates with ADSL2, ADSL2+, and Extended Reach-ADSL support. This next generation ADSL will provide up to 12Mbps speed with an additional 600 feet reach for ADSL2; and up to 27Mbps speed with distance up to 5,000 feet for ADSL2+ Support. In addition, with ADSL2+ Annex M support, upstream rate will be improved to up to 3Mbps.

Targeted at the residential users, it is for both single user using Bridge mode with host based PPPoE Client and multi-users utilizing the DSL309EU’s inbuilt PPPoE/A, IP routing, NAT functionality to share the ADSL link.

It comes with the Packet Filtering firewall and DMZ support for a full security options against malicious hackers. With Universal Plug and Play support, home networking becomes a breeze for everyone in the family. Multi Port Range/Popular Application Forwarding makes it even easier to select which application you want your network to allow while ensuring your security at the same time.
