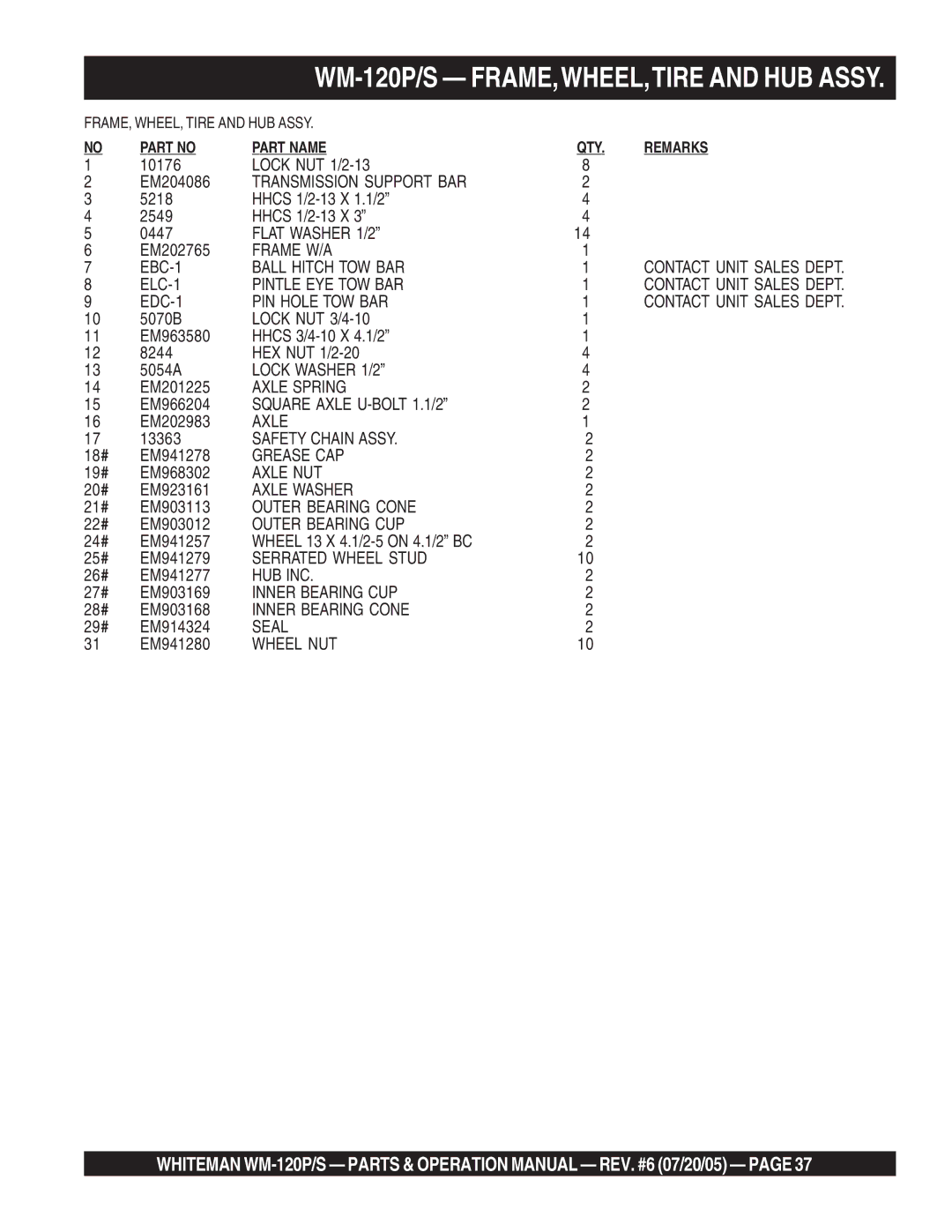

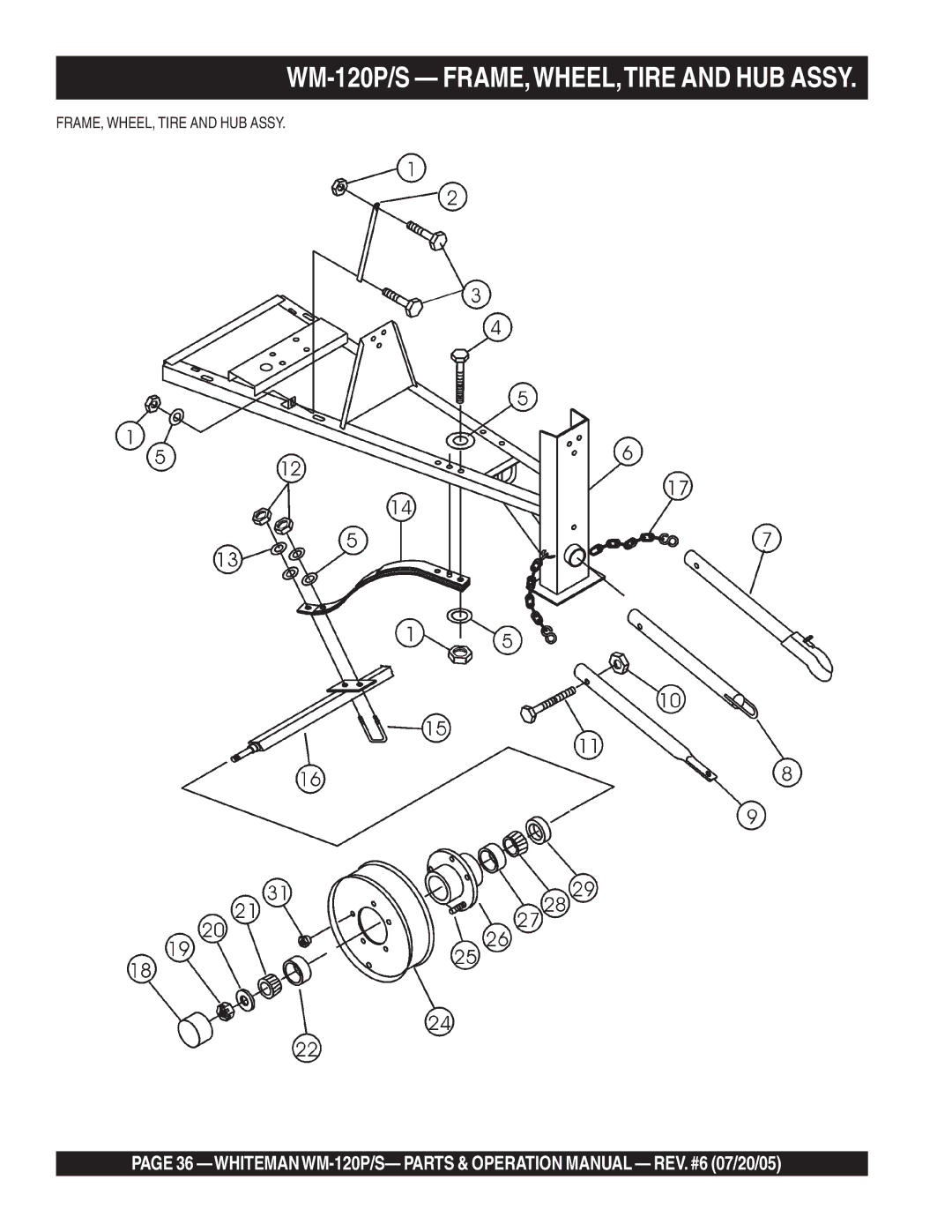

WM-120P/S — STEEL DRUM ASSY.

STEEL DRUM ASSY.







NO

PART NO

PART NAME

QTY.

REMARKS

1

EM010022

KEY, 3/8 SQ X 1 3/4

1



2

10176

NUT, NYLOC 1/2-13

17



3

13211

WASHER, FLAT, 1/2 USS

4



4

13277

BOSS, BEARING

2



5

13345

BEARING BRACKET

2



6

13346

TUB, STEEL

1



7

EM200079

SHIM, BEARING BRKT. .135

2



8

EM200080

SHIM, BEARING BRKT. .187

2



9

EM200255

COUPLER, PADDLE SHAFT

1



10

EM201537

DUMP LEVER

1



11

EM201731

DRUM LATCH

1



12

EM203335

HINGE, GRILL CLOSING BAR

1



13

EM203344

BAR, GRILL OPENING

1



14

EM203449

GRILL, DRUM

1



15

2621

ZERK, GREASE STR 1/4-28

4



16

3214

SCREW, HHC 1/2-13 X 1 1/4

3



17

3249

CAP, DUST

1



18

5218

SCREW, HHC 1/2-13 X 1 1/2

12



19

7170

PIN, HITCH CLIP, 5/32 X 3-5/16

1



20

EM924015

PIN, COTTER, 3/16 X 1

2



21

9503

NUT, NYLOC 5/8-11

2



22

EM961019

SCREW, SQHS, 3/8-16 X 1-1/4, CUP

2



23

EM963157

SCREW, HHC 5/8-11 X 4-1/2, GR2

1



24

1162A

CAP, GREASE ZERK

1



WHITEMAN WM-120P/S — PARTS & OPERATION MANUAL — REV. #6 (07/20/05) — PAGE 33

Page 33
