Page 19

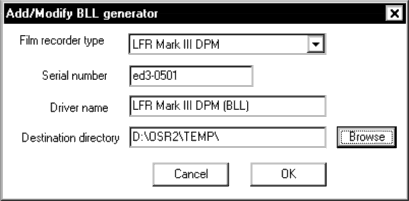

The following dialog is displayed:

∙Select the destination film recorder type in Film recorder type.

∙Enter the serial number of the target film recorder in the Serial number edit box.

∙Windows BLL Generator will select a default name for you. You can modify the name of the printer driver in the edit box Driver name.

∙Select the destination directory into which the BLL files will be placed. Windows BLL Generator will select the default temporary file path as default. You should select the network path of a WinRascol drop box if you intend to use a film recorder that is connected to your network. Contact your network administrator for details. You can also select the path of a ZIP-Drive, for example.

∙Press OK to create the BLL driver.

The BLLdriver will now appear in the BLL-generator Administration dialog. Press Done to exit.

NOTE: For technical reasons, the new BLL-generator will show LPT1: to be the selected output port on Windows 95/98 until your computer is rebooted. After reboot, the new generator will show BLL:. This affects appearances only, it does not impact operation of the BLL-generator in any way.

20 Software Installation
