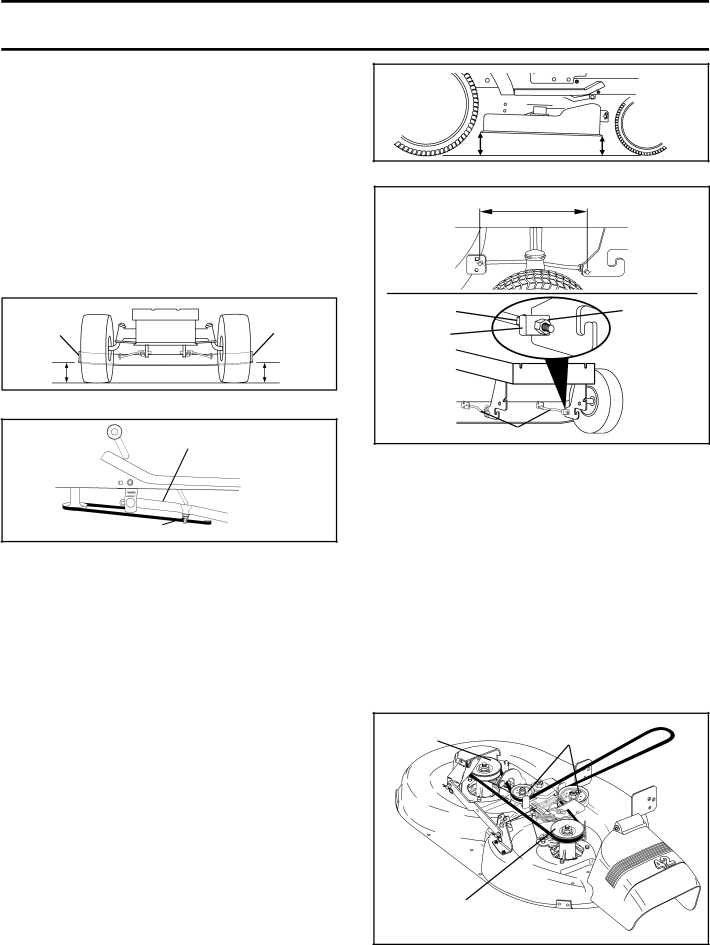

Page 20

SERVICE AND ADJUSTMENTS

SIDE-TO-SIDE ADJUSTMENT (See Figs. 16 and 17)

•Raise mower to its highest position.

•At the midpoint of both sides of mower, measure height from bottom edge of mower to ground. Distance “A” on both sides of mower should be the same or within 1/4" of each other.

•If adjustment is necessary, make adjustment on one side of mower only.

•To raise one side of mower, tighten lift link adjustment nut on that side.

•To lower one side of mower, loosen lift link adjustment nut on that side.

NOTE: Three full turns of adjustment nut will change mower height about 1/8".

•Recheck measurements after adjusting.

BOTTOM EDGE OF



BOTTOM EDGE

MOWER



OF MOWER

TO GROUND



TO GROUND

“A”

GROUND LINE

“A”

FIG. 16

SUSPENSION ARM

LIFT LINK ADJUSTMENT NUT

FIG. 17

FRONT-TO-BACK ADJUSTMENT (See Figs. 18 and 19)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-SIDE.

To obtain the best cutting results, the mower housing should be adjusted so that the front is approximately 1/8" to 1/2" lower than the rear when the mower is in its high- est position.

Check adjustment on right side of tractor. Measure distance “D” directly in front and behind the mandrel at bottom edge of mower housing as shown.

•Before making any necessary adjustments, check that both front links are equal in length.

•If links are not equal in length, adjust one link to same length as other link.

•To lower front of mower loosen nut “E” on both front links an equal number of turns.

•When distance “D” is 1/8" to 1/2" lower at front than rear, tighten nuts “F” against trunnion on both front links.

•To raise front of mower, loosen nut “F” from trunnion on both front links. Tighten nut “E” on both front links an equal number of turns. The two front links must remain equal in length.

•When distance “D”is 1/8" to 1/2" lower at front than rear, tighten nut “F” against trunnion on both front links.

•Recheck side-to-side adjustment.

MANDREL

"D"

"D"

FIG. 18

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT "F"

NUT "E"

TRUNNION

FRONT LINKS

FIG. 19

TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 20)

The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

•Remove mower from tractor (See “TO REMOVE MOWER” in this section of this manual).

•Work belt off both mandrel pulleys and idler pulleys.

•Pull belt away from mower.

BELT INSTALLATION -

•Install new belt in reverse order of removal.

•Make sure belt is in all pulley grooves and inside all belt guides.

•Install mower in reverse order of removal instruc- tions.

MANDREL

IDLER

PULLEY

PULLEYS

MANDREL



PULLEY



FIG. 20

20
