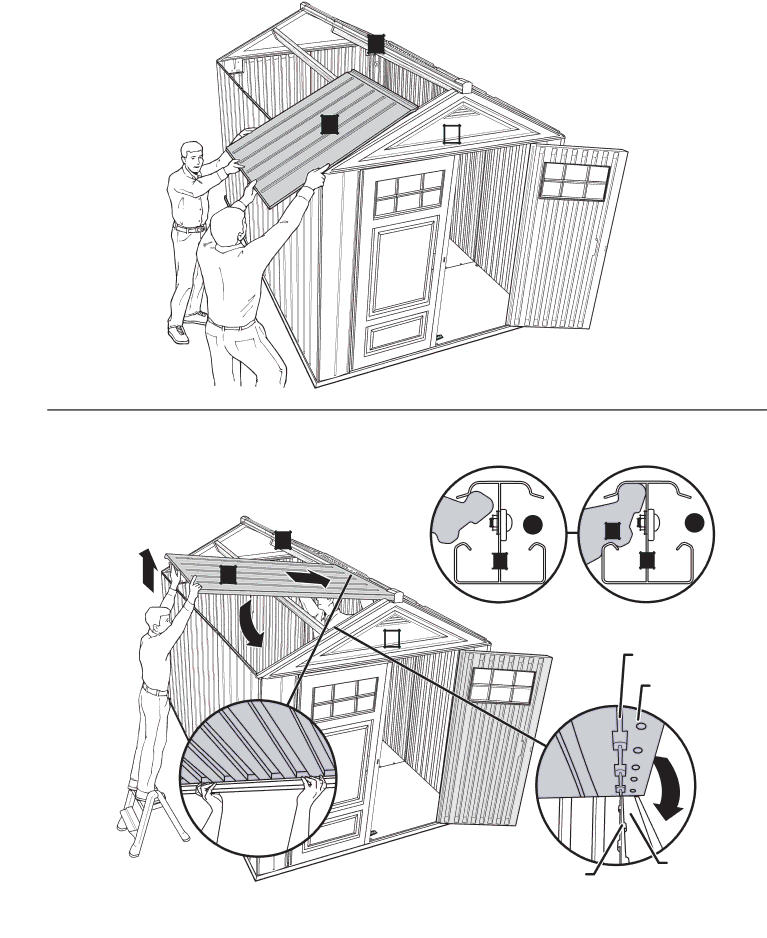

31 Lubricate roof snaps on left side of the front Gable (M) 4 places.
Raise the Left Roof Panel (N) onto the left side of the shed assembly, the arrows on the Roof Panel should face the inside of the shed and point towards the Ridge Beam Assembly.
R |
N |
M
32 Using (2) stepstools (1 inside shed, 1 outside shed), lift the bottom of the Roof Panel above horizontal and guide into the Ridge Beam Assembly. Align the front Gable (M) rib with the channel in the Left Roof Panel (N). Engage Left Roof Panel (N) in the Ridge Beam Assembly by lowering the bottom of the Roof Panel onto the shed assembly (hold Ridge Beam Assembly to prevent twisting). DO NOT SNAP ROOF DOWN.
R |
1 |
N |
3
2
R 2
M |
N | 3 |
|
R |
Channel
Roof Panel
3
