Page 42

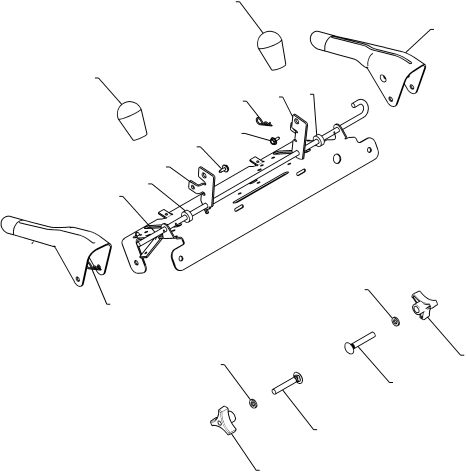

REPAIR PARTS SNOW THROWER - MODEL NUMBER 96194000502 HANDLES

8 4 7

9 9

7 6

		13
8
		13	12
		13
			14
		14
		12	01.08.002-D
KEY	PART
NO.	NO.	DESCRIPTION

1412683X479 CONTROL PANEL

2412681X479 CONTROL LEVER LH

3412682X479 CONTROL LEVER RH

4412679X008 TRACTION ROD ARM

5420889X008 IMPELLER ROD ARM

6412677 INTERLOCK ROD

7	412680	SPACER
8	169675	RETAINER
9	17060408	SCREW 1/4−20 X .50
10	414280	KNOB BLACK
11	414281	KNOB RED
12	178899	HANDLE KNOB
13	19131316	WASHER 3/8
14	72120618	CARRIAGE BOLT 3/8−16 X 2.25

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.
