How Domains and Shelves are Represented

Using HPI-B

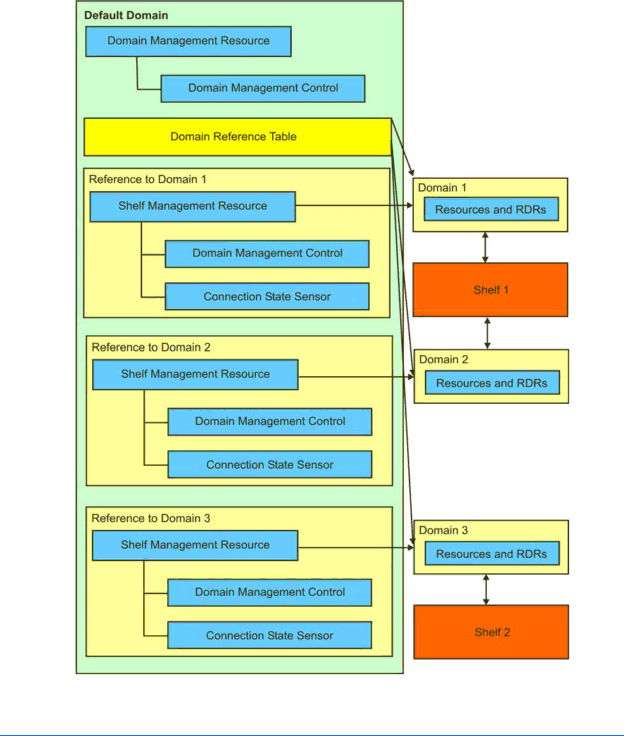

The Domain Management Resource contains one HPI control and allows applications to add/remove HPI domains/shelves to the HPI environment. The Shelf Management Resource contains one HPI control and one HPI sensor and acts as reference to connected daemons. There is one Shelf Management Resource for each connected daemon. The following figure shows an example configuration with the HPI resources, controls and sensors which are related to the handling of multiple shelves/domains in it.

Figure 4-2 HPI Multishelf Library - Overview of Related HPI Resources and Controls
