J34 &J34A: USB 2.0 Ports and Header

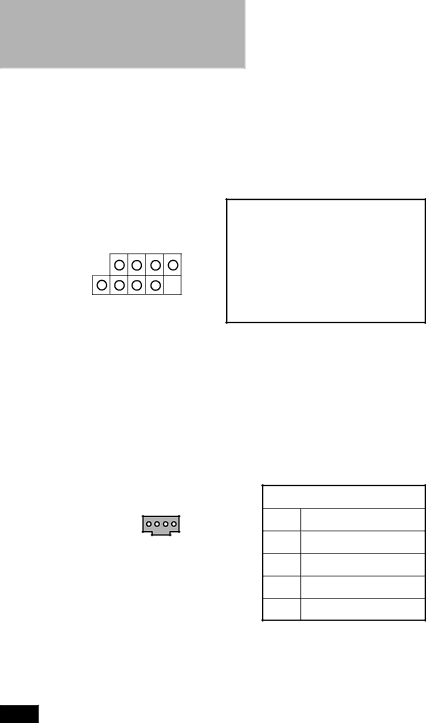

DJ800 supports eight USB 2.0 ports. USB 2.0 supports transfer rates of up to 480MB/s. Four ports show up on the on-board I/O array, and four ports are internal.

10

1

2

Pin Assignment

Pin 1 VCC 5V

Pin 2 VCC 5V

Pin 3 Data-

Pin 5 Data-

Pin 5 Data+

Pin 6 Data+

Pin 7 GND

Pin 8 GND

Pin 9 NC

Pin 10 GND

CD In and AUX In Audio Inputs (4-pin)

There are both CD In and AUX In 4-pin connector to connect your internal sound devices to the Sound Card.

4-pin Onboard Audio Header

1

Audio Pin Assignments

Pin

Description

1Audio-L

2Ground

3Ground

4Audio-R
