Page 38

Chapter 2 Installation

Installing the Router

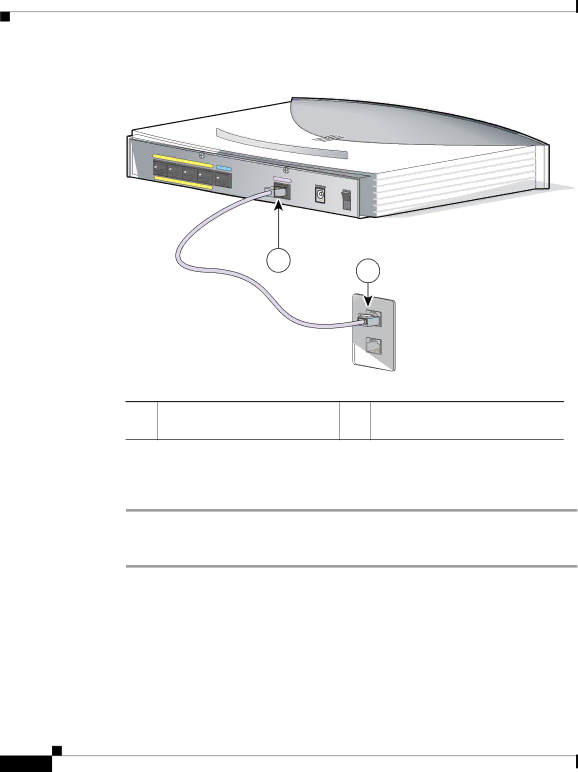

Figure 2-4 Connecting an ADSL Line to a Wall Jack

ETHERNET

CONSOLE

4 3 2 1

Cisco 837

ADSL +18 VDC

ON

OFF

82012

1

2

1

ADSL port

2

End of the RJ-11 cable that connects to the wall jack

Perform the following steps to connect the ADSL line to the router and a cable wall jack:

Step 1 Connect one end of the ADSL cable line to the ADSL port on the router.

Step 2 Connect the other end of the RJ-11 cable to the wall jack.

	Cisco 837 Router and SOHO 97 Router Hardware Installation Guide
2-14	78-14781-02
